Dehner Elektronik MPU-51-105 medische desktop-voeding 12V 3,75A 45W EN60601

With a 45W output and EN60601 medical approval, this Dehner Elektronik desktop power supply delivers reliable 12V DC for healthcare and industrial equipment.

Overview

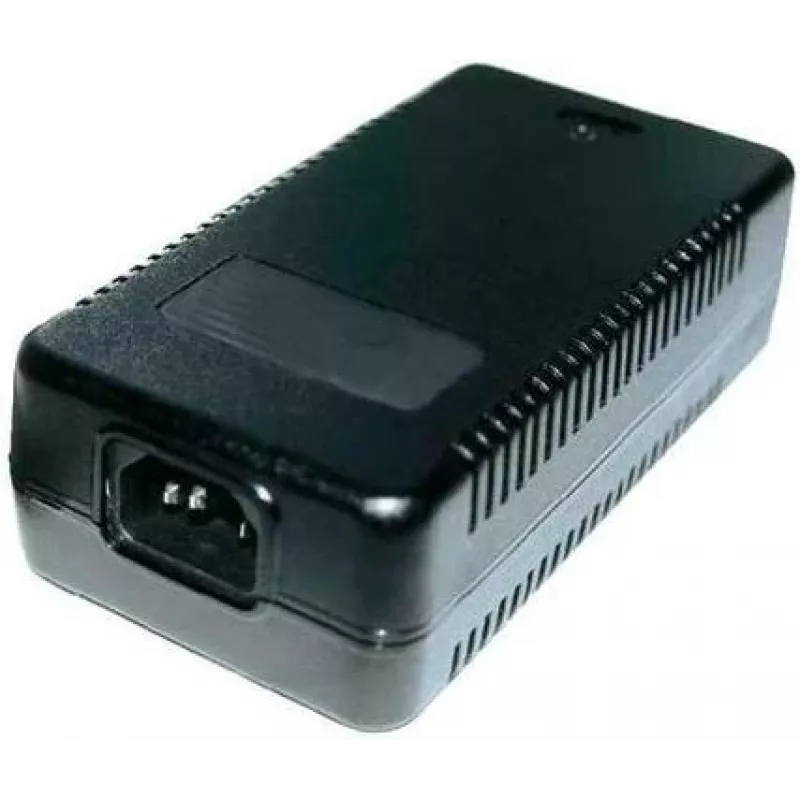

The MPU-51-105 is a desktop power supply unit with medical approval according to EN60601. It converts 100-240V AC input to a regulated 12V DC output at up to 3.75A, providing 45W of continuous power. The unit features a desktop form factor with convection cooling and a single output.

What stands out

• Medical safety standard EN 60601-1 (3rd Edition)
• Wide input voltage range: 100-240V AC, 50/60 Hz
• Protection features: OVP, OCP, SCP
• Class II isolation for enhanced safety
• Convection cooled for silent operation

Technical details

• Output voltage: 12V DC
• Output current: 3.75 A
• Output power: 45 W
• Input connector: IEC C14 (3-pin)
• Number of outputs: 1
• Form factor: External desktop adapter

Our verdict

A compact and certified power solution for medical devices and industrial control systems, offering stable performance and essential protection features.
