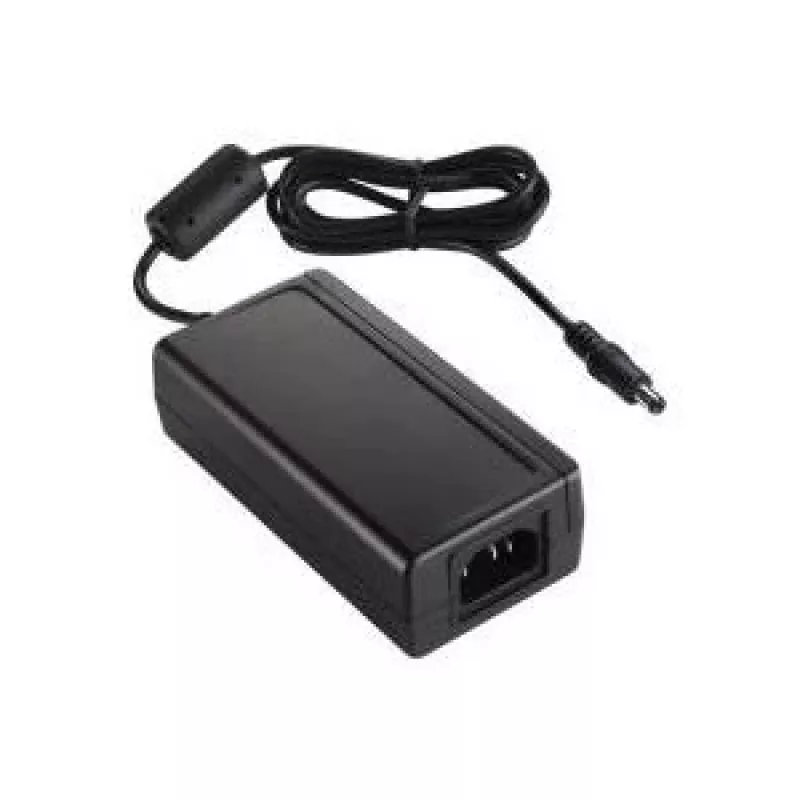

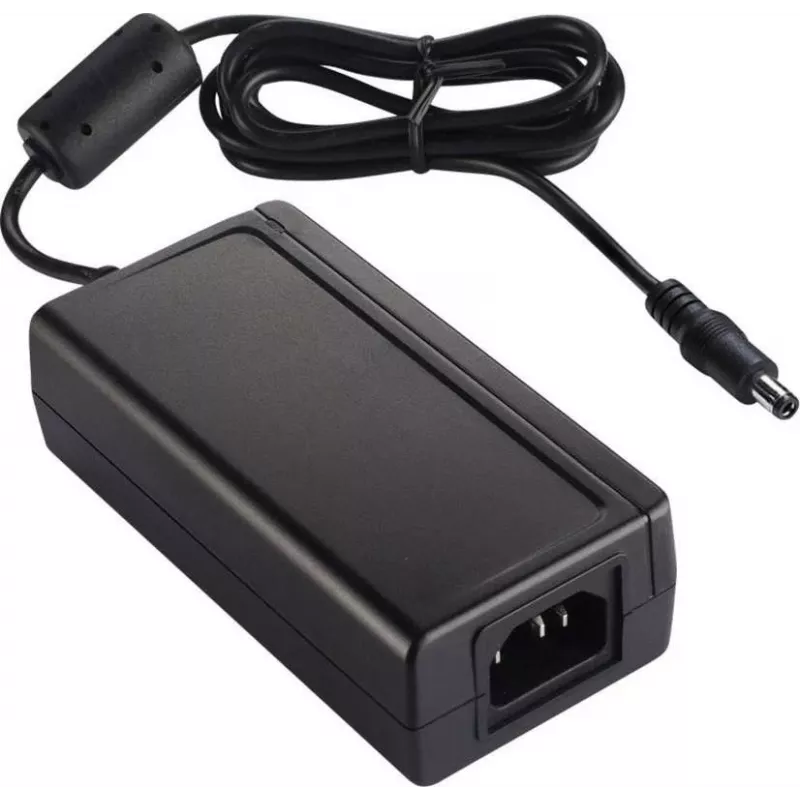

DEHNER ELEKTRONIK tafelvoeding, vaste spanning 26500 12 V/DC 5 A (26500)

Power a 12 V device on your workbench or in your office with this DEHNER ELEKTRONIK desktop power supply. It delivers a fixed 12 V DC output at up to 5 A, making it suitable for LED strips, small motors, or other 12 V electronics that need a stable power source. The unit connects to AC mains via a standard IEC C8 inlet and provides DC output through a 5.5 x 2.1 mm barrel plug with center-positive polarity.

Key specifications

• Output voltage: 12 V DC
• Output current: 5 A
• Output power: 60 W
• Input voltage: 100 - 240 V AC
• Input frequency: 50/60 Hz
• Efficiency level: VI
• DC connector: 5.5 x 2.1 mm barrel plug, center positive
• AC input connector: IEC C8 (figure-8)
• DC cable length: 1.5 m
• Operating temperature: 0 - 40 °C
• Housing material: Plastic
• Colour: Black
• Protections: Overload, short circuit, overvoltage

Why choose it

With a wide input voltage range and high efficiency, this power supply works reliably in many regions. Its compact desktop design and integrated protections make it a practical choice for continuous operation.

Ideal use cases

• Powering 12 V LED lighting systems
• Running small DC motors or actuators
• Bench testing 12 V electronic circuits
• Replacing a failed power adapter for consumer devices

Good to know

The power supply is a fixed-voltage unit, so it always outputs 12 V DC. It is not adjustable and does not include a power cord for the AC side.
