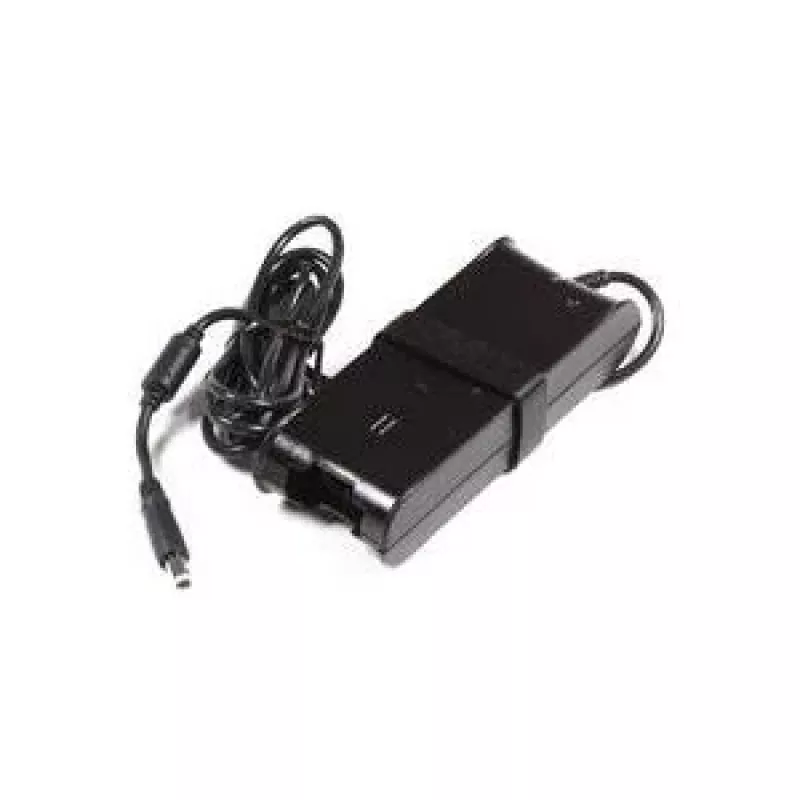

Dell 90W AC-adapter 4,5mm holle stekker (56MM8)

The Dell 56MM8 is a 90 W AC adapter built for Dell laptops that use the 4.5 mm barrel connector. It delivers 19.5 V DC at 4.62 A, with a wide 100–240 V input range that works on mains power worldwide.

Highlights

• 90 W output for reliable charging
• 4.5 mm barrel connector with center pin
• Input: 100–240 V AC, 50/60 Hz
• Output: 19.5 V DC, 4.62 A
• External form factor, black

In daily use

The adapter includes overload, short-circuit, and over-temperature protection. It comes with an AC power cord and has a 1.8 m DC cable.

Full specifications

• Power Output: 90 W
• Input Voltage: 100–240 V AC
• Input Frequency: 50/60 Hz
• Output Voltage: 19.5 V DC
• Output Current: 4.62 A
• Connector Type: Barrel Connector
• Connector Outer Diameter: 4.5 mm
• Connector Inner Diameter: 3.0 mm
• Pin Type: Center Pin
• DC Cable Length: 1.8 m
• AC Cable Length: 1.0 m
• Protection Features: Overload, Short Circuit, Over-temperature
• Color: Black
• Form Factor: External
• Included Accessories: AC Power Cord

Final note

Compatible with Dell Inspiron, Latitude, XPS, and Vostro models using a 4.5 mm tip.
