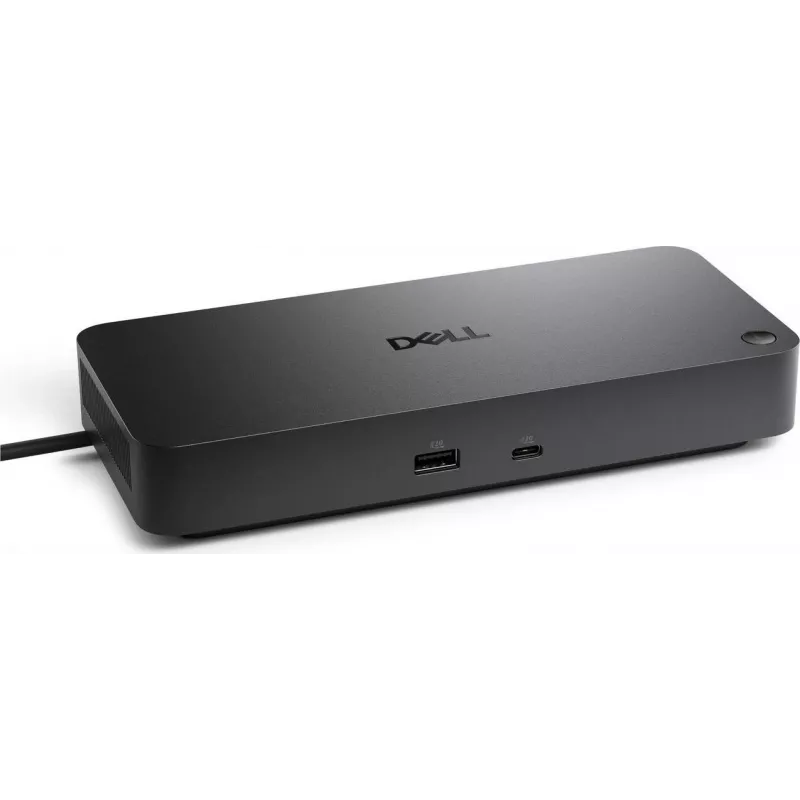

Dell Pro Thunderbolt 5 Dock WD25TB5 300W - 8K triple display dockingstation met 140W Power Delivery

Modern laptops are thinner than ever, but that often means sacrificing ports and connectivity. The Dell Pro Thunderbolt 5 Dock (WD25TB5) solves this by transforming a single Thunderbolt 5 port into a full desktop workstation. Connect up to three external displays, high-speed peripherals, and wired networks while charging your laptop at up to 140W—all through one cable.

Who is it for

This dock is built for professionals who demand maximum performance and flexibility. It suits creative users working with 8K video, engineers running multiple 4K monitors, and anyone who wants a clutter-free desk without compromising on connectivity. It is compatible with Windows 10/11 and macOS systems equipped with Thunderbolt 5, and it also supports Thunderbolt 4 and USB4 hosts with reduced bandwidth.

Main features

• Thunderbolt 5 host interface with up to 80 Gbps data transfer and 140W power delivery to the laptop.
• Triple display support: one 8K @ 60Hz or two 4K @ 120Hz via dual DisplayPort 2.1 and HDMI 2.1.
• Comprehensive port selection: 2x Thunderbolt 5 (one downstream), 1x USB-C 3.2 Gen 2, 2x USB-A 3.2 Gen 1, 2x USB-A 2.0, 2.5G Ethernet, and audio combo jack.
• 300W external power adapter ensures stable operation even when charging power-hungry laptops and peripherals.
• Advanced networking features: PXE Boot, Wake-on-LAN, and MAC Address Pass-Through for enterprise manageability.
• Kensington lock slot for physical security in shared or public workspaces.

Specifications

• Host Interface: Thunderbolt 5 (USB-C)
• Video Outputs: 2 x DisplayPort 2.1, 1 x HDMI 2.1
• Max Resolution (Single Display): 8K (7680 x 4320) @ 60Hz
• Max Resolution (Dual Displays): 2 x 4K (3840 x 2160) @ 120Hz
• Power Delivery to Host: Up to 140W
• Power Adapter: 300W external
• Data Transfer Rate: Up to 80 Gbps (Thunderbolt 5)
• Ethernet: 2.5 Gigabit (RJ-45)
• USB Ports: 1 x Thunderbolt 5 downstream, 1 x USB-C 3.2 Gen 2 (15W PD), 1 x USB-C 3.2 Gen 2, 2 x USB-A 3.2 Gen 1, 2 x USB-A 2.0
• Audio: Headphone/Microphone combo jack
• Security: Kensington lock slot
• Daisy Chain Support: Yes (Thunderbolt)
• Operating System Compatibility: Windows 10/11, macOS

Tips

To achieve 8K resolution, ensure your laptop's Thunderbolt 5 port supports DisplayPort 2.1 and use a certified 8K cable. For dual 4K @ 120Hz, connect displays to both DisplayPort outputs or one DisplayPort and HDMI. The dock's 140W power delivery is sufficient for most high-performance laptops, but check your laptop's power requirements if it demands more than 140W. When daisy-chaining Thunderbolt devices, connect them to the downstream Thunderbolt 5 port for optimal bandwidth.
