DeLOCK 19 inch paneel met 2 x BNC-bus 1U zwart

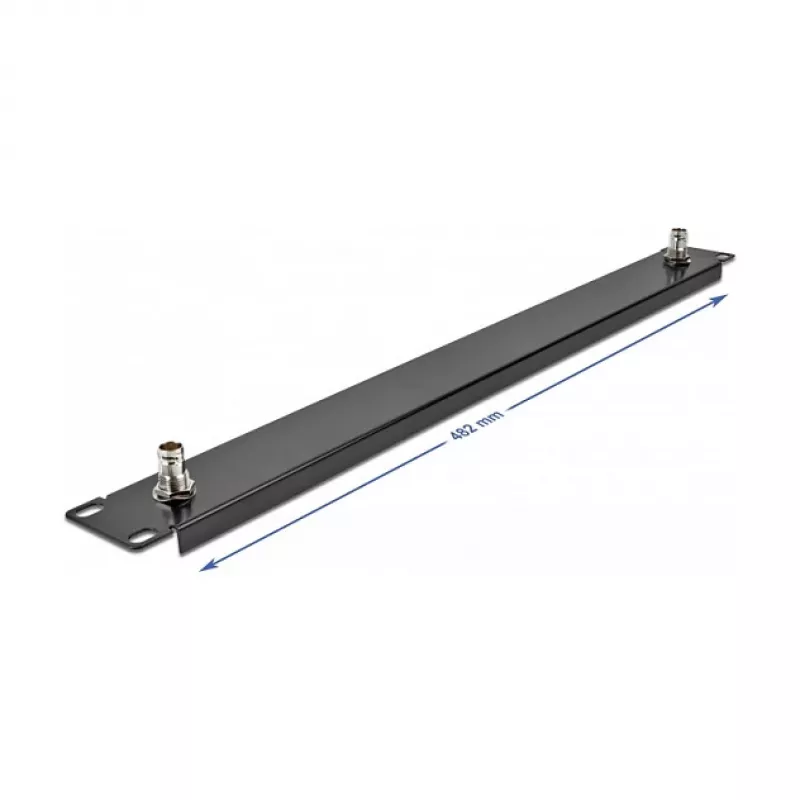

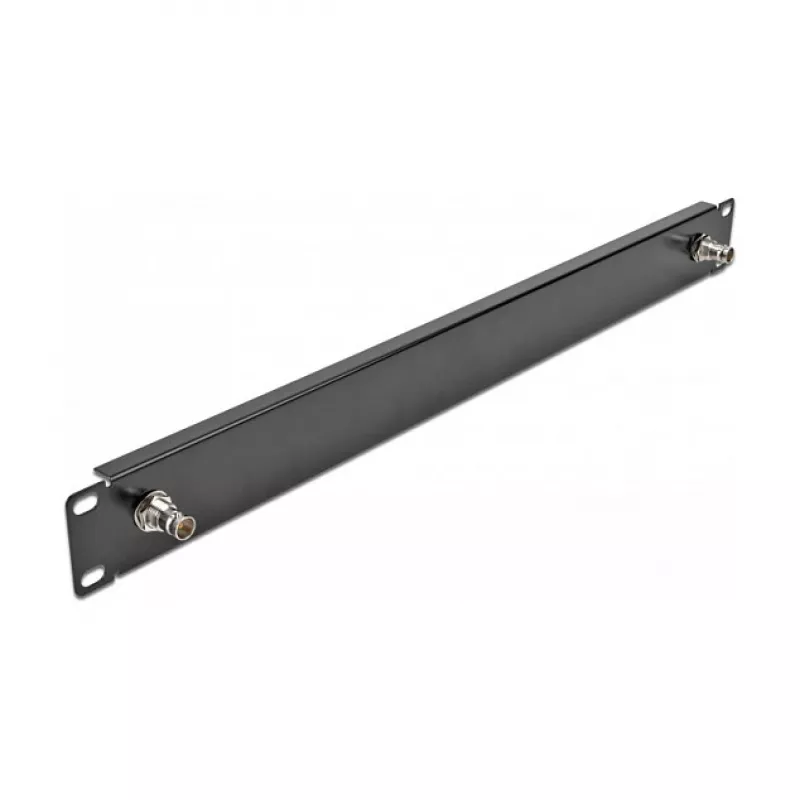

The DeLOCK 19" Panel with 2 x BNC jack 1U black is a metal rack panel designed for installation in a 19-inch network cabinet. It fills open spaces in a 1U slot and provides two integrated BNC jacks for secure connection of BNC connectors, making it suitable for video and media system installations. The panel is finished in black and comes with mounting hardware for quick installation.

Advantages

The panel is made of durable metal and fits standard 19" racks in a single U (1U) height. Two integrated BNC jacks provide a tidy, fixed connection point for coaxial video cabling. The package includes screws, caged nuts and washers, simplifying installation and ensuring compatibility with common rack enclosures.

Suitable for

• Video signal distribution in rack-mounted systems
• Media systems requiring BNC connections
• Closing unused 1U openings in 19" network cabinets
• Equipment racks in control rooms or broadcast setups

Key specifications

• Brand: DELOCK
• Model / MPN: 66852
• EAN: 4043619668526
• Form factor: 19" 1U panel
• Connectors: 2 x BNC jack
• Material: metal
• Colour: Black
• Width: 48.3 cm
• Depth: 44 mm

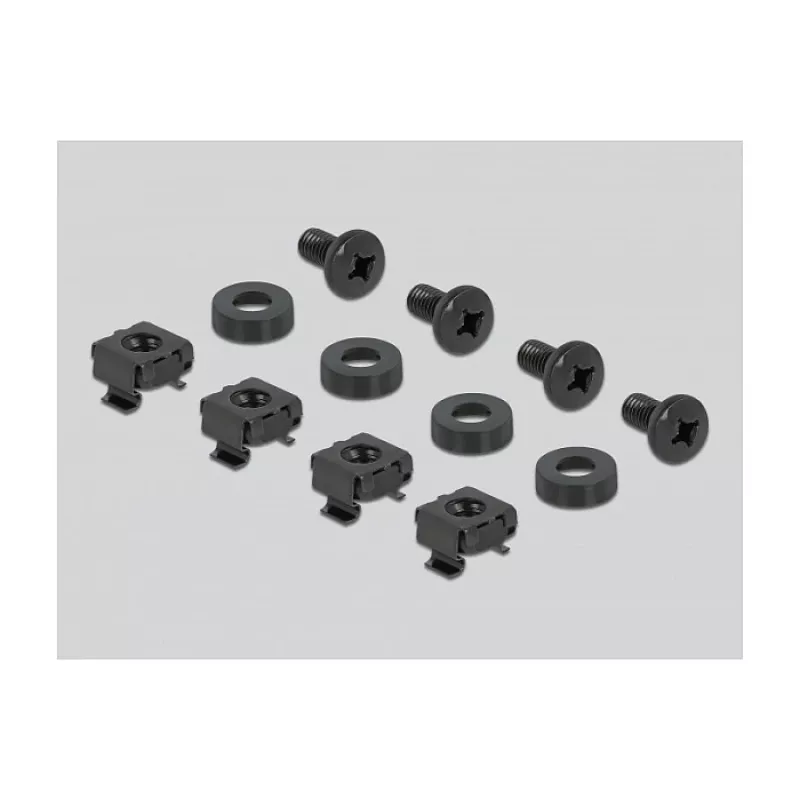

• Scope of delivery: panel, screws, caged nuts, washers

How to use

Mount the panel into a free 1U slot of a 19" network cabinet using the supplied screws, caged nuts and washers. Route the coaxial BNC cables to the rear side and connect them to the integrated BNC jacks. Ensure connectors are securely fastened to maintain signal integrity and strain relief as needed. After installation, verify video signal continuity and alignment with the rest of the rack system.

Recommendations

Install the panel in a properly grounded rack and avoid excessive bending of coaxial cables near the BNC jacks. Use appropriate cable shielding and high-quality BNC connectors for best video performance.
