DeLOCK 90883 contactdoos 3,5 mm zilver wit bus

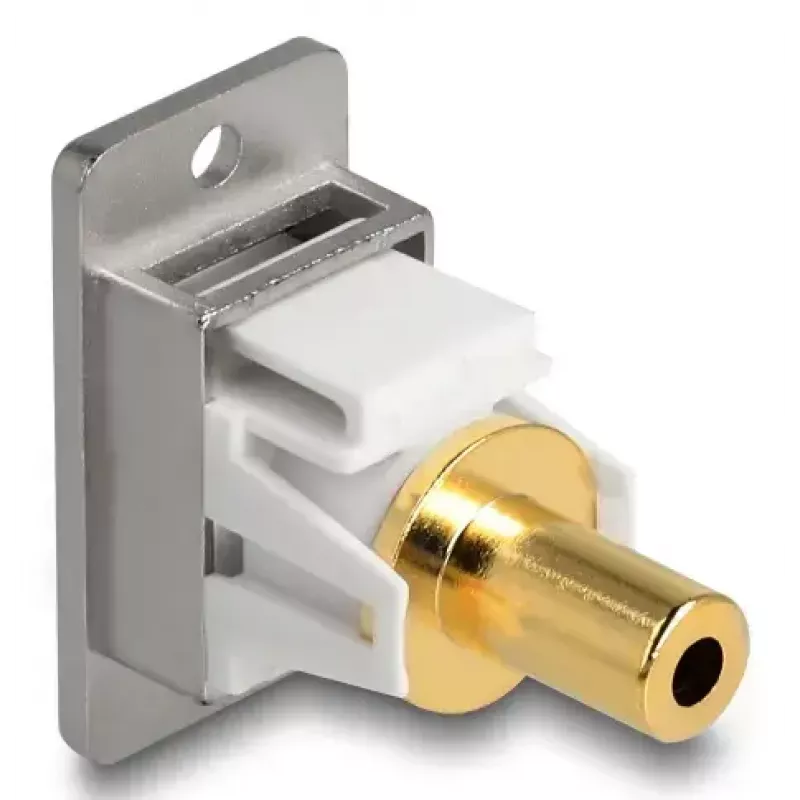

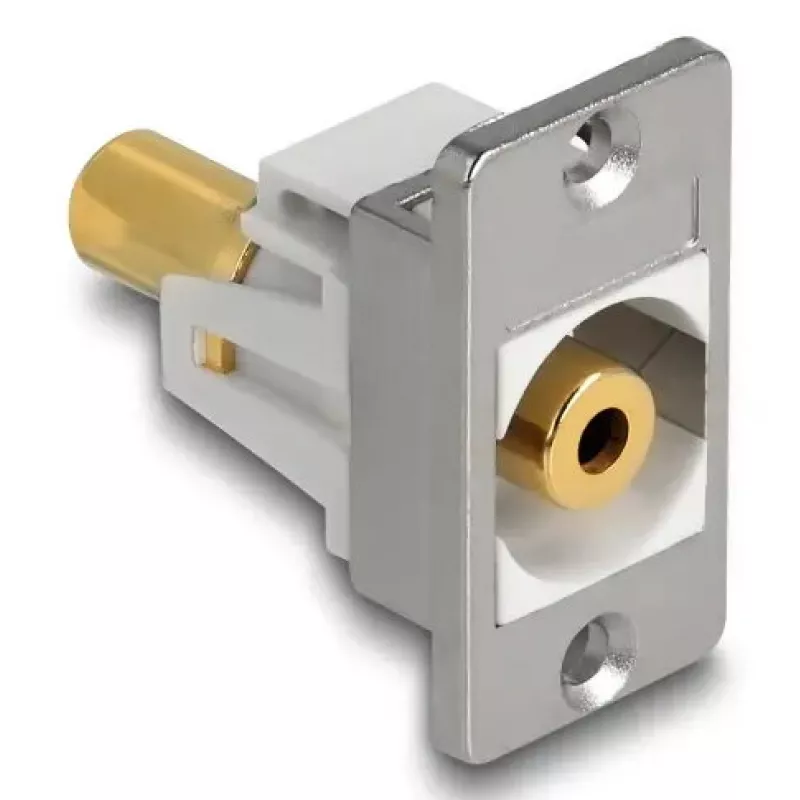

The DeLOCK 90883 Socket Outlet is a 3.5 mm female stereo jack panel mount designed for easy installation in enclosures. Constructed from durable plastic and zinc with screw-fixation points, the compact unit (19 mm W × 36 mm D × 35.5 mm H) provides a reliable connection for audio cables and devices.

Advantages

The socket offers a standardized 3.5 mm female connector compatible with common audio cables. Its plastic and zinc construction provides mechanical strength and resistance to wear, while the screw-mount design allows secure installation in housings. The small footprint makes it suitable for space-constrained panels.

Suitable for

Key specifications

How to use

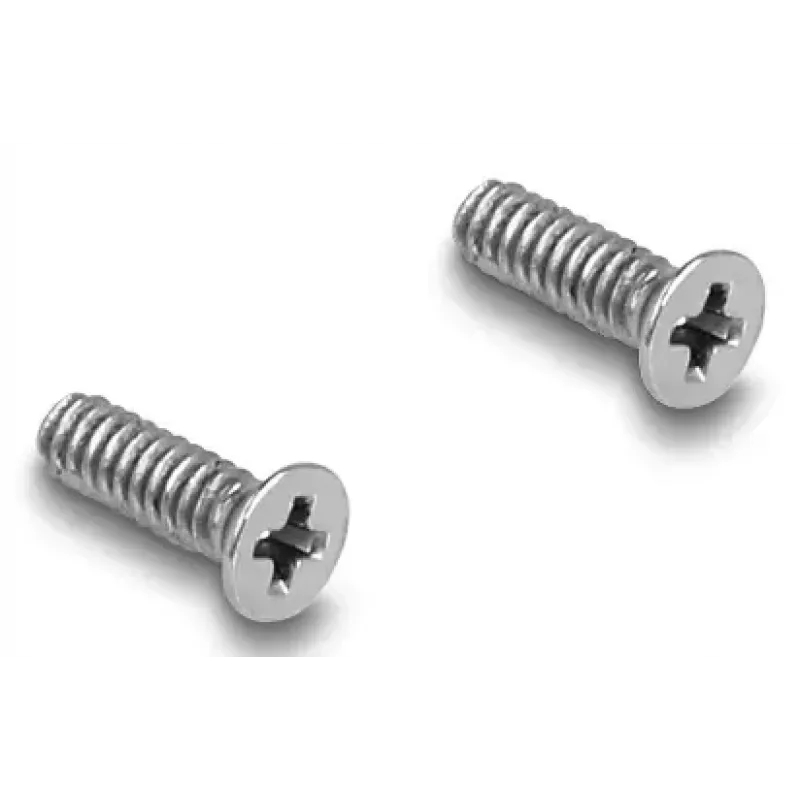

Cut an appropriate opening in the panel or housing that matches the socket dimensions, insert the DeLOCK 3.5 mm panel jack into the opening and secure it with screws through the mounting points. Connect the internal wiring to the jack terminals following the device wiring diagram, then attach the external audio cable to the 3.5 mm female connector for normal operation.

Recommendations

For reliable performance, ensure correct wiring polarity and secure mechanical mounting. Avoid exposing the connector to moisture or mechanical strain; use strain relief for attached cables where applicable.
