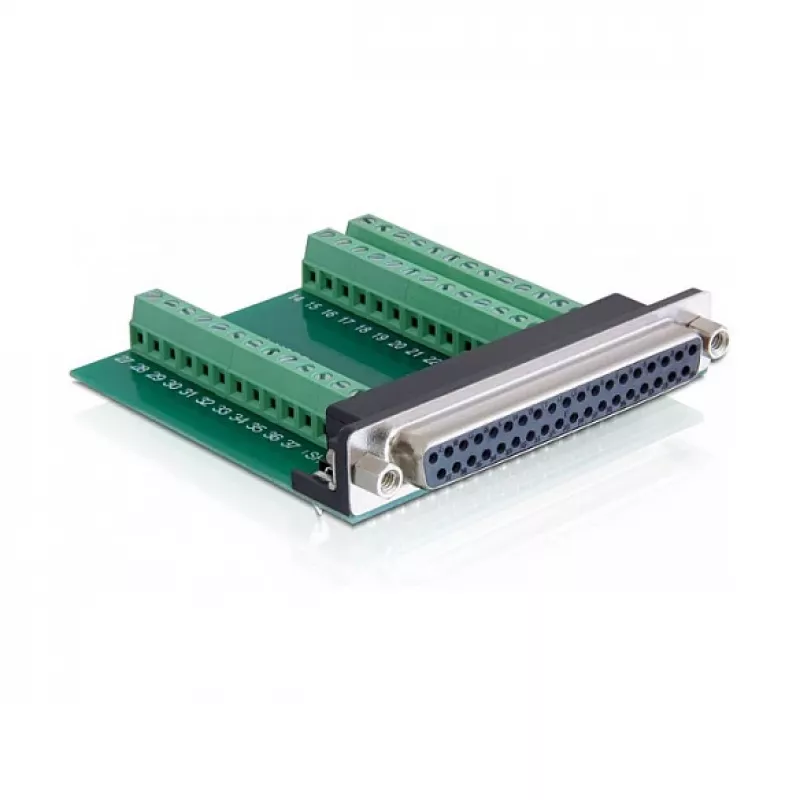

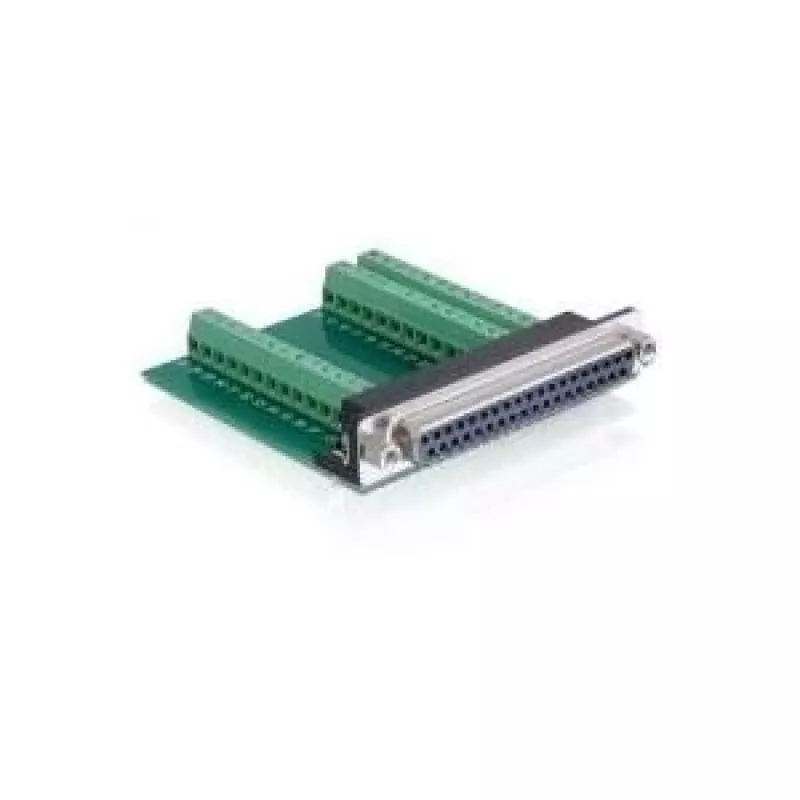

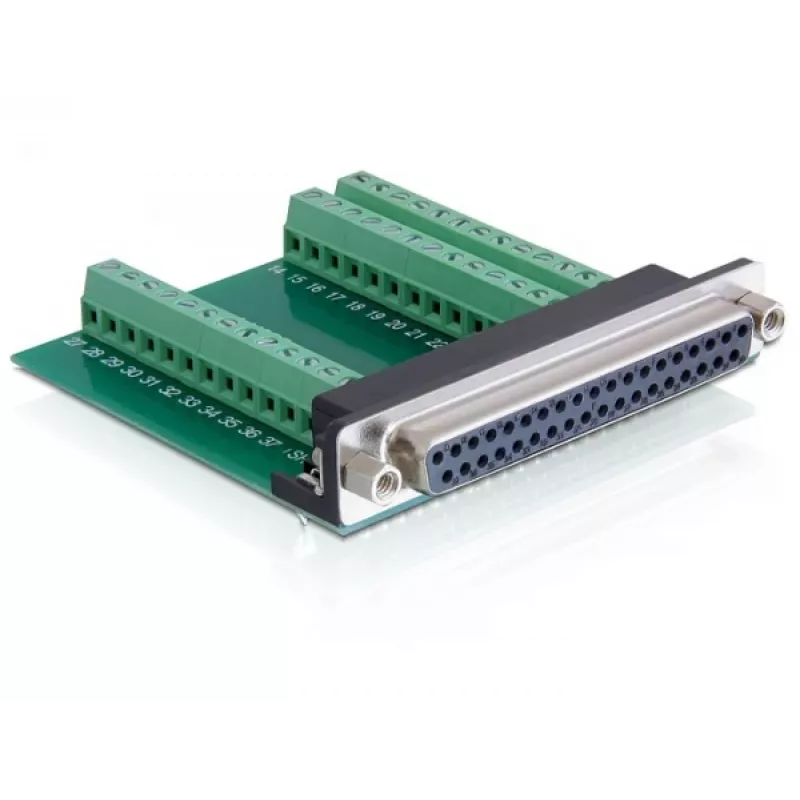

Delock adapter D-Sub 37 pin bus naar klemmenblok 65319

Connecting individual wires to a D-Sub 37-pin interface can be cumbersome without a proper breakout. This Delock adapter solves that by providing a terminal block for each of the 37 pins, allowing direct screw-terminal connections without soldering.

Who is it for

Technicians, engineers, and hobbyists who need to interface custom wiring, sensors, or industrial equipment with a D-Sub 37-pin port. Ideal for prototyping, testing, and field installations where a reliable screw-terminal connection is required.

Main features

• D-Sub 37-pin female connector to 37-pin terminal block
• 1:1 pin assignment for straightforward wiring
• Screw terminals accept 12–24 AWG wire
• Open PCB design with mounting holes for secure installation
• Green PCB for easy identification

Specifications

• Connector 1: D-Sub female, 37 pins
• Connector 2: Terminal block, 37 pins, screw terminals
• Supported wire gauge: 12–24 AWG
• Mounting: PCB with mounting holes
• Colour: Green (PCB)

Tips

Use appropriate wire strippers to prepare conductors before inserting into screw terminals. Tighten screws securely to ensure reliable contact. Mount the PCB using the provided holes to prevent strain on connections.
