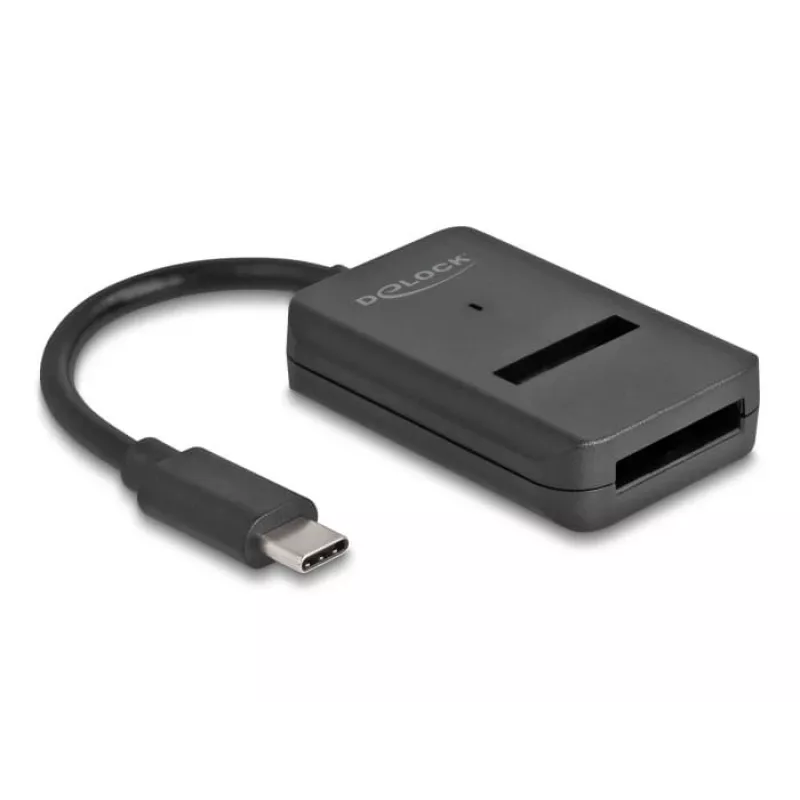

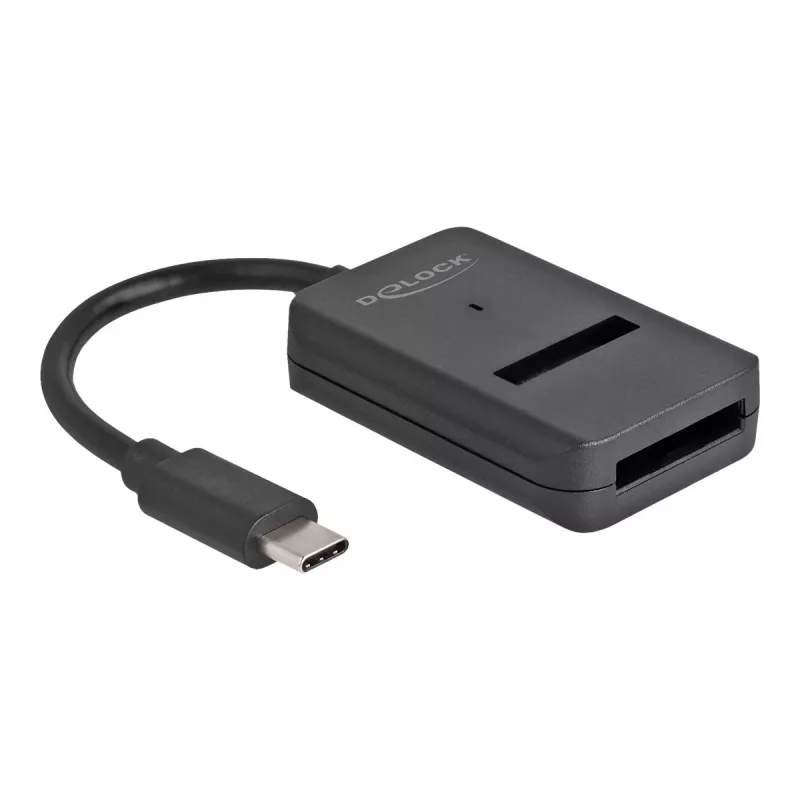

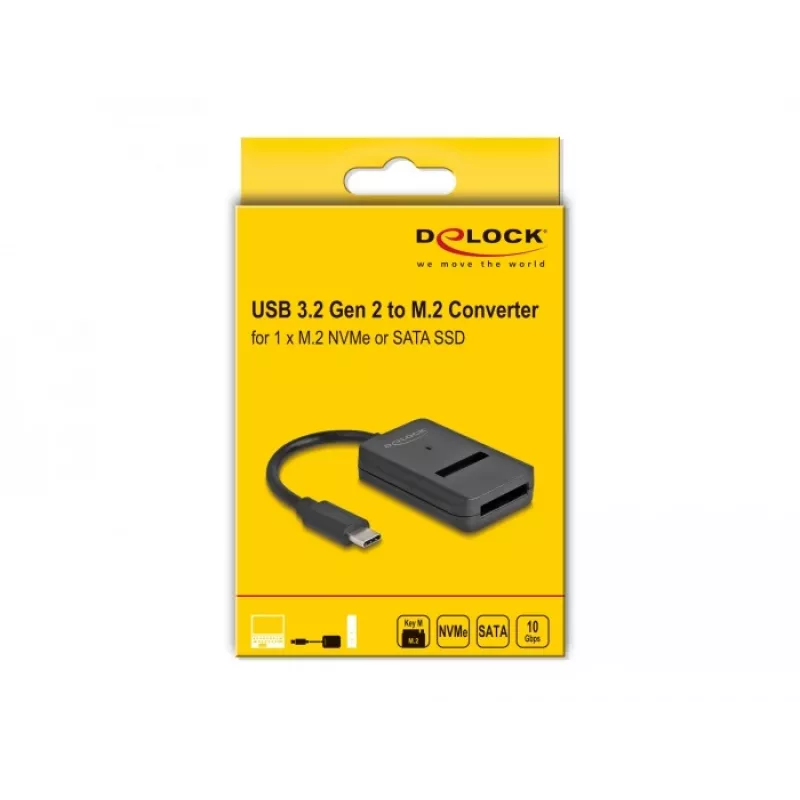

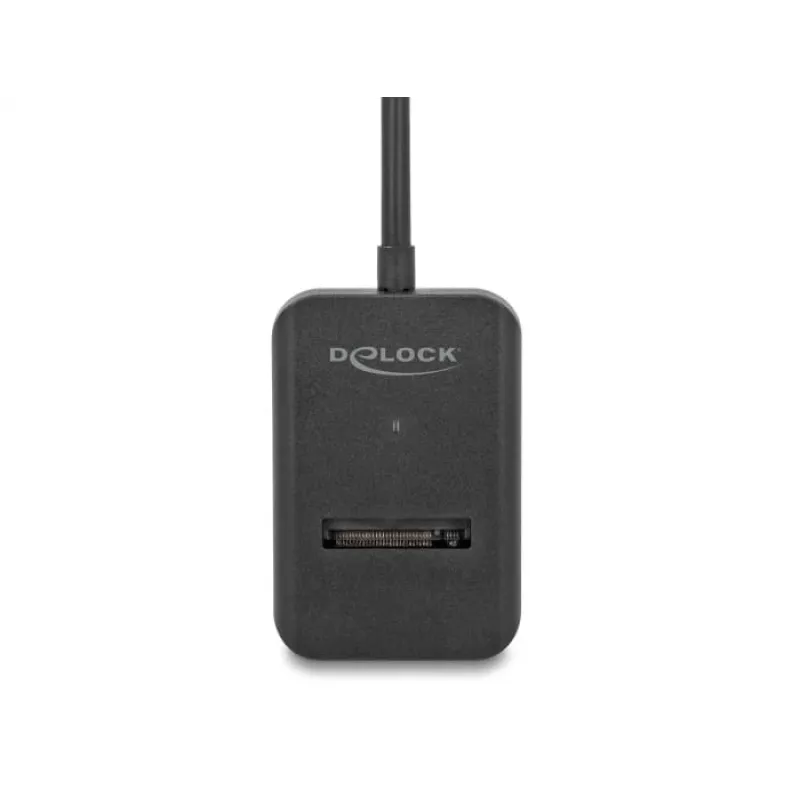

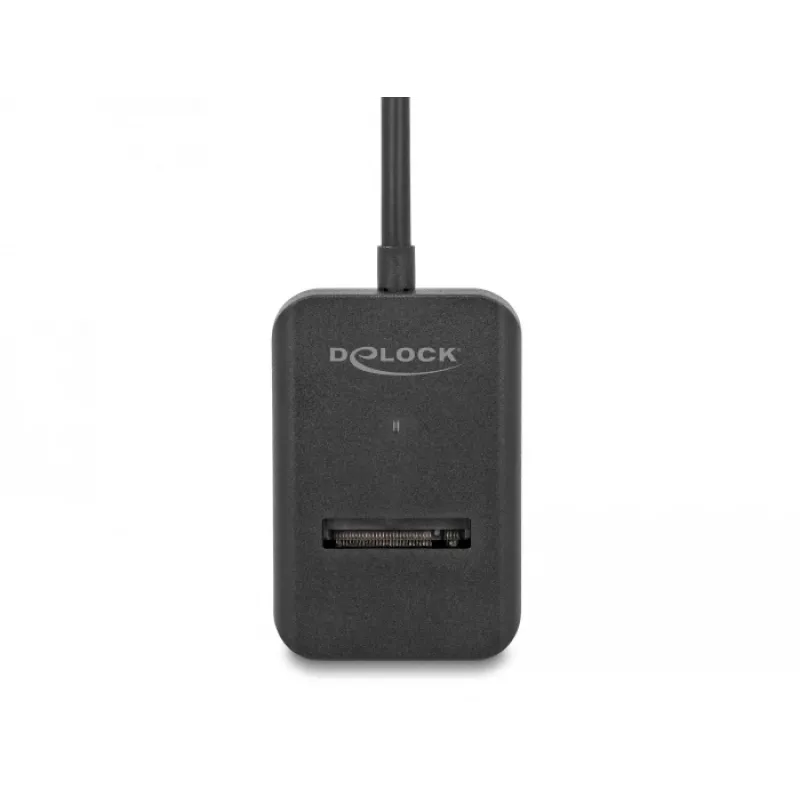

DeLOCK combo-converter voor M.2 NVMe PCIe SATA SSD USB Type-C 10 Gbit/s

This DeLOCK combo converter allows installation of either an M.2 PCIe NVMe SSD or an M.2 SATA SSD and connects to a PC or laptop via USB Type-C at up to 10 Gbps. The converter uses the Realtek RTL9210B chipset and supports Windows 8.1, 10 and 11. Its compact black housing makes it suitable for use as a portable adapter or test device.

Advantages

The main advantage of this DeLOCK M.2 converter is compatibility with both SATA and PCIe (NVMe) M.2 form factors, with automatic recognition of the installed drive by the chipset. A USB Type-C connection provides up to 10 Gbps transfer rate for fast data access, and the tool-free slot design enables quick insertion and removal of M.2 modules.

Suitable for

• Testing and diagnosing M.2 NVMe PCIe and M.2 SATA SSDs
• External access to internal M.2 drives for data recovery or transfer
• Expanding storage or using an internal SSD as an external drive
• Portable use with laptops and desktops that have USB Type-C ports

Key specifications

• Supported M.2 types: PCIe NVMe and SATA (M.2)
• Host interface: USB Type-C, up to 10 Gbps
• Chipset: Realtek RTL9210B
• Compatible OS: Windows 8.1, Windows 10, Windows 11
• Colour: Black

How to use

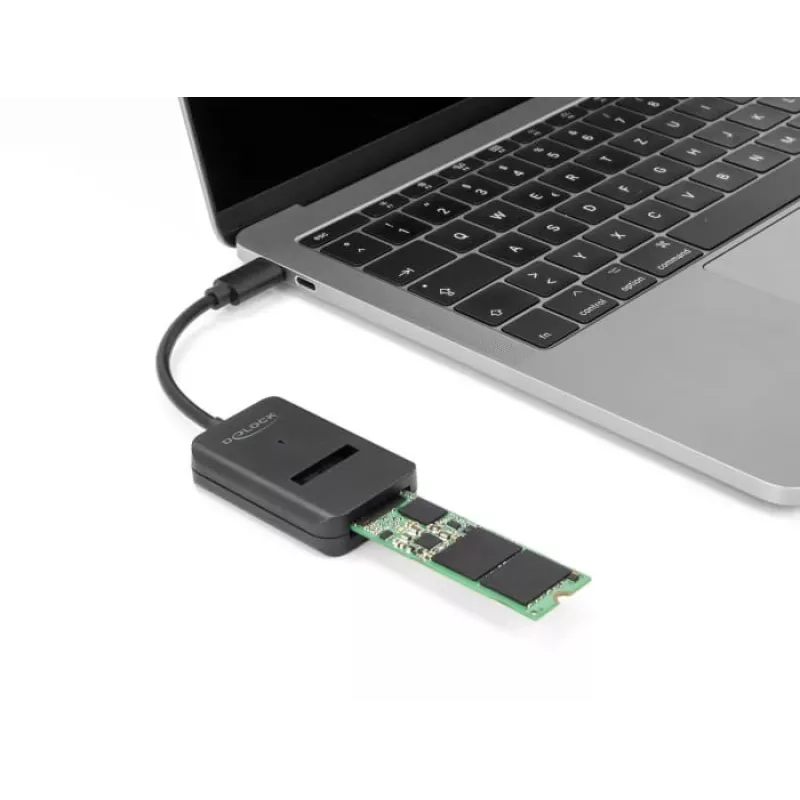

Insert the M.2 SSD module into the converter slot, making sure the module matches the connector type and alignment. Secure the drive according to the converter's mounting method, connect the converter to your PC or laptop via the USB Type-C cable, and allow the operating system to detect the drive. Once recognized, the SSD is available for file transfer, cloning, testing or other disk operations through the host system.

Recommendations

For reliable operation, use a USB Type-C port that supports USB 3.1 Gen 2 (10 Gbps) when maximum transfer speed is required. Handle M.2 modules in an electrostatic-safe environment and avoid forcing mismatched key types into the slot. Check that your operating system has the necessary drivers for the Realtek RTL9210B chipset if automatic recognition does not occur.
