DeLOCK D-Sub 15-pins stekker met behuizing IP67 waterdicht

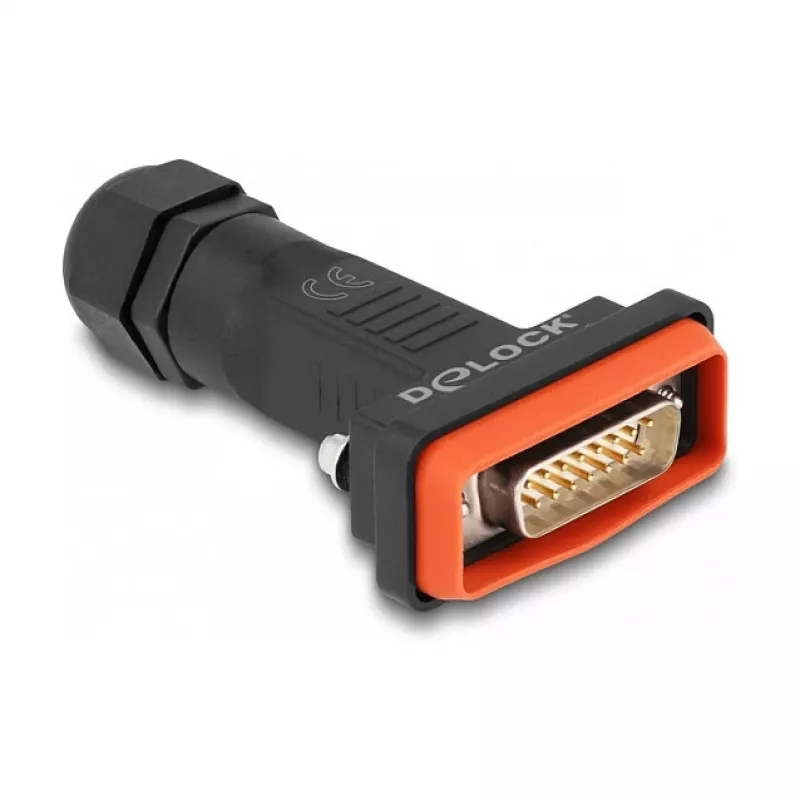

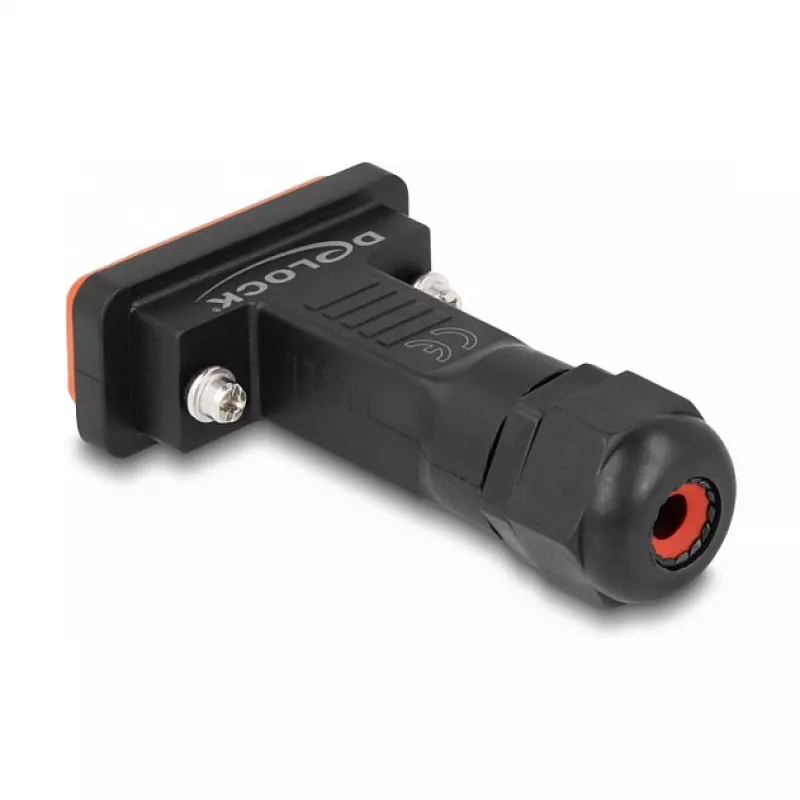

The DeLOCK D-Sub 15 pin male with housing IP67 waterproof is a 15-pin D-Sub male connector designed for solder assembly and cable assembly. The connector features soldering pins and is supplied with an IP67-rated housing that protects cable wires from moisture, making it suitable for installation in switch cabinets and other industrial environments. The product is available in black and orange and has compact dimensions of approximately 80 mm (width) x 49 mm (depth) x 22 mm (height).

Advantages

The IP67 waterproof housing provides protection against dust and temporary immersion in water, extending the connector's suitability for harsh or moisture-prone environments. The soldering-pin design allows for secure, custom cable assemblies and reliable electrical contact. A dedicated housing supports cable strain relief and neat installation in control cabinets.

Suitable for

• Cable assemblies requiring a 15-pin D-Sub male connection
• Installation in switch cabinets and industrial enclosures
• Environments where dust and moisture protection (IP67) is needed

Key specifications

• Connector type: D-Sub 15 pin male
• Contacts: 15 soldering pins
• Protection class: IP67 (housing)
• Product colours: Black, Orange
• Dimensions (approx.): 80 mm × 49 mm × 22 mm (W × D × H)
• Brand: DELOCK, MPN: 87806, EAN: 4043619878062

How to use

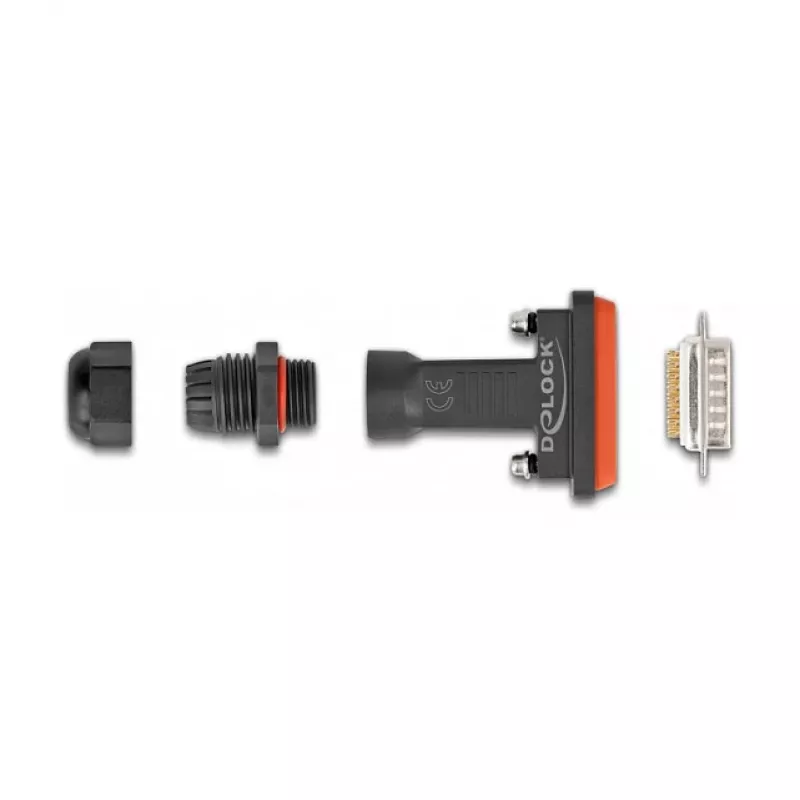

Feed the prepared cable wires through the IP67 housing and solder each conductor to the corresponding soldering pin of the D-Sub 15 male connector following the pinout required for your application. After soldering, assemble the connector and the cable into the housing, ensuring correct alignment and that the wires are secured. Tighten any housing screws or clamps to provide strain relief and restore the IP67 seal.

Recommendations

For reliable moisture protection, check that the housing seals are intact and that the cable diameter matches the housing grommet. Use appropriate soldering tools and flux for clean joints, and verify continuity and pinout before installation in a live system.
