DELOCK Easy 45 module 2x keystone-houders 45x45 mm wit/rood

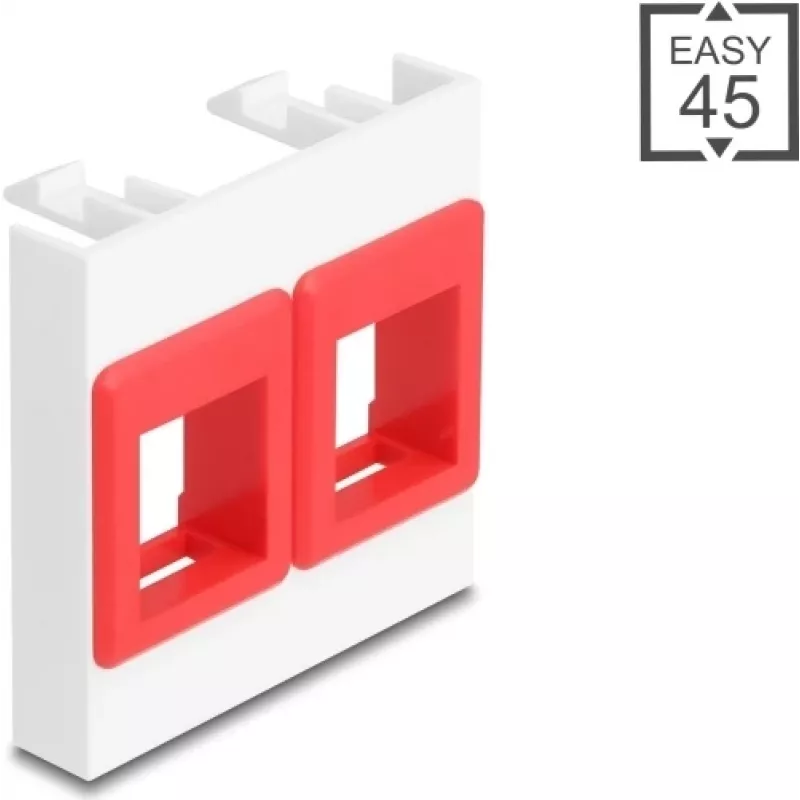

DELOCK Easy 45 Module 2x Keystone Mounts 45x45 mm white/red is a compact module designed to accept two standard Keystone inserts in a 45×45 mm form factor. The module is compatible with compatible panel systems and faceplates that accept Easy 45 modules and provides a tidy, space-saving solution for structured cabling points, patch panels and wall plates. The two-colour housing (white with red insert area) helps with visual identification and organized installation in multi-port environments.

Advantages

The module supports two standard Keystone connectors in a single 45×45 mm footprint, saving space while keeping ports accessible. Colour coding simplifies identification of specific circuits or services and speeds up installation and maintenance. The module is intended for quick mounting into compatible frames and faceplates, offering a neat finish and consistent alignment of connectors. Its compact dimensions are suitable for high-density installations where orderly presentation and efficient use of panel space are required.

Suitable for

• Structured cabling outlets in offices and data closets
• Patch panels and modular faceplates
• Custom signage or service identification where color coding is useful
• Any installation that requires two keystone-style connectors in a 45×45 mm module

Key specifications

• Form factor: 45 × 45 mm module
• Number of keystone mounts: 2
• Compatibility: fits Easy 45 compatible frames and faceplates designed for 45×45 modules
• Housing colour: white with red marked area for identification
• Mounting type: snap-in / panel-mounted into compatible systems
• Typical use: holds standard keystone inserts (network, audio, coaxial or other keystone-format jacks)

How to use

Press standard keystone inserts into each keystone opening until they snap into place, ensuring they are correctly oriented. Insert the assembled module into a compatible Easy 45 frame or faceplate, aligning the module with the mounting opening and securing it by the frame’s retention mechanism. Route and connect cabling to the back of each keystone insert following the connector manufacturer’s wiring instructions. Verify mechanical fit and that ports sit flush with the faceplate surface before completing installation.

Recommendations

Use the colour coding to mark service types or circuits and keep installation documentation updated. Select keystone inserts that match the application (e.g., RJ45 for Ethernet, RCA or coaxial for audio/video) and follow standard cabling practices for cable length, bend radius and strain relief to maintain performance.
