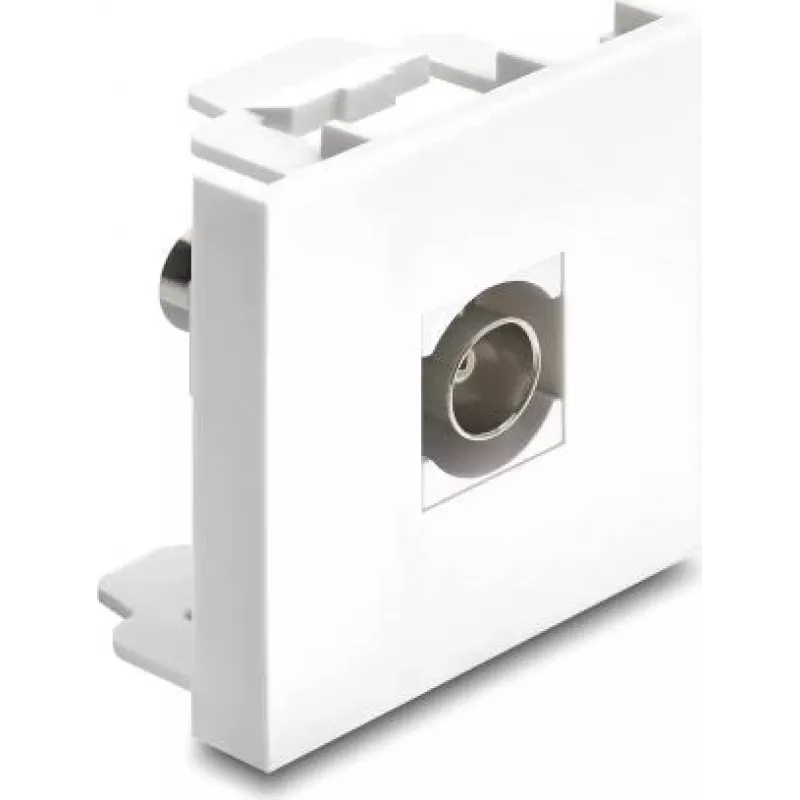

Delock Easy 45 module BNC bus naar BNC bus wit (91813)

In professional AV and broadcast installations, terminating coaxial cables cleanly and reliably at wall plates or patch panels is a constant challenge. The Delock Easy 45 Module BNC Female to BNC Female White (91813) solves this by providing a simple, snap-in pass-through connector for 75 Ohm BNC applications. It fits any Delock Easy 45 frame or enclosure, giving you a tidy, modular solution for video, RF, or other coaxial signal distribution.

Who is it for

This module is ideal for AV integrators, broadcast technicians, and structured cabling installers who need to terminate BNC cables in a wall outlet, floor box, or patch panel. It is also suitable for home theater enthusiasts or anyone building a professional-grade video distribution system using standard 75 Ohm coaxial cable.

Main features

• Pass-through design: BNC female to BNC female, no internal electronics, preserving signal integrity.
• Easy 45 compatibility: snaps securely into any Delock Easy 45 frame, faceplate, or enclosure.
• 75 Ohm impedance: matches standard coaxial video and RF systems for minimal signal loss.
• Gold-plated contacts: resist corrosion and ensure reliable, long-lasting connections.
• White (RAL 9010) ABS housing: blends with standard white wall plates and is durable for daily use.
• Wide operating temperature range: -10 °C to 50 °C, suitable for most indoor environments.

Specifications

• Connector type (input): BNC female
• Connector type (output): BNC female
• Module type: Delock Easy 45
• Impedance: 75 Ohm
• Colour: White (RAL 9010)
• Housing material: ABS
• Contact material: Gold-plated
• Mounting standard: Delock Easy 45
• Operating temperature: -10 °C to 50 °C
• Compatibility: Delock Easy 45 frames and enclosures
• Application: Video, RF, or other 75 Ohm BNC connections
• Pass-through design: Yes

Tips

For a complete installation, pair this module with a Delock Easy 45 frame or faceplate (sold separately). Use high-quality 75 Ohm coaxial cable and BNC connectors for best performance. The module can be easily removed and repositioned without tools, making it ideal for temporary setups or future reconfiguration.
