DeLOCK Keystone-module DC 5,5 x 2,1 mm bus naar DC 5,5 x 2,5 mm stekker zwart

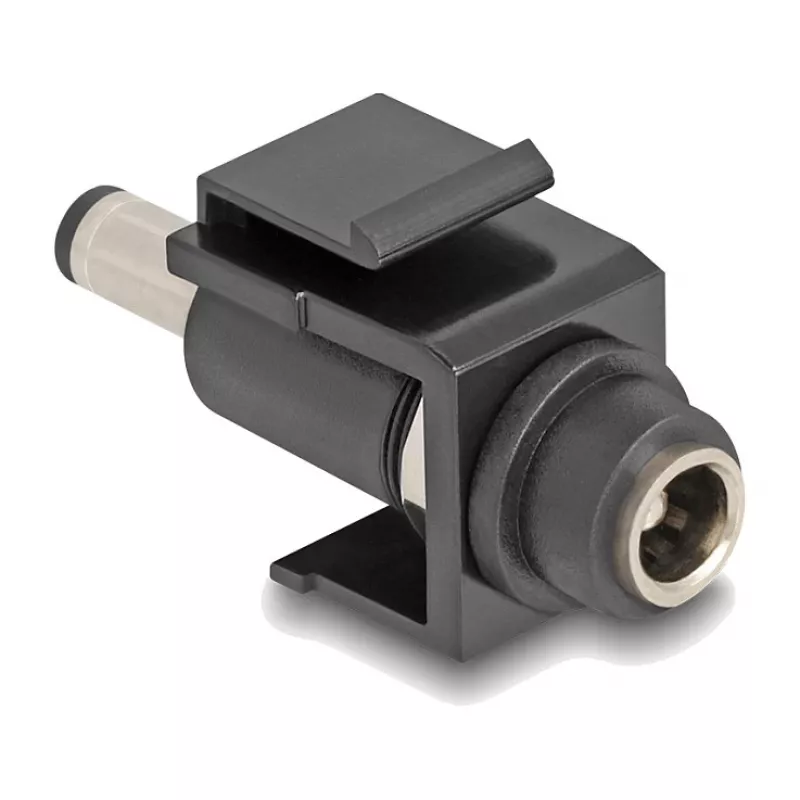

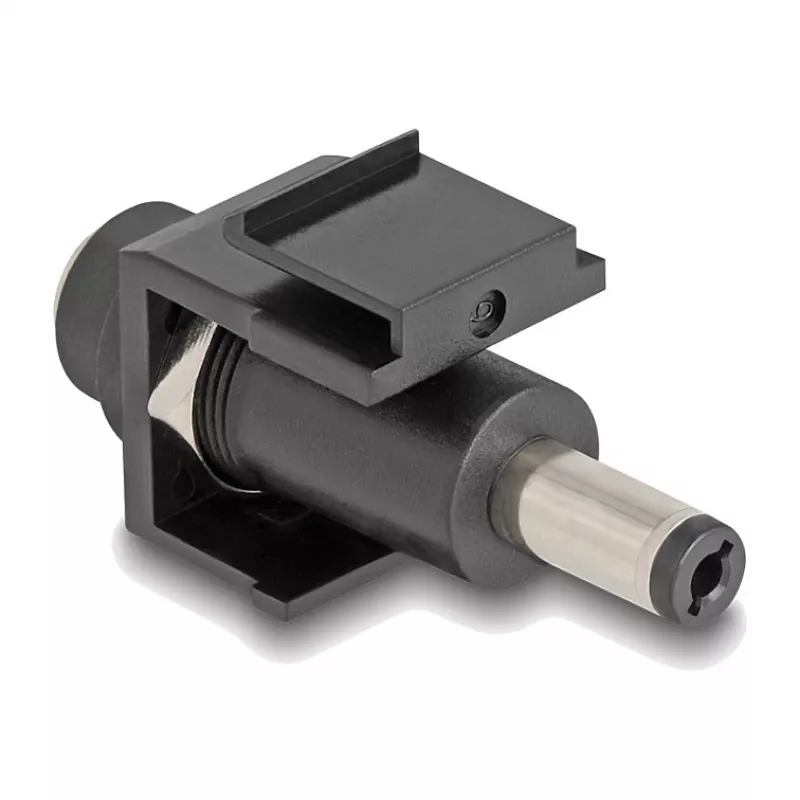

This DeLOCK Keystone Module is a DC female bulkhead designed for snap-in mounting in Keystone panels, faceplates or surface-mount boxes to provide power connections. It features a female DC 5.5 x 2.1 mm connector on the front and a male DC 5.5 x 2.5 mm connector on the rear, with a flat, black construction suitable for housings or devices that require a compact power feed-through.

Advantages

The module provides a standardized form factor for easy snap-in installation, allowing quick integration into Keystone-compatible panels or plates. Its combination of a DC 5.5 x 2.1 mm female connector and a DC 5.5 x 2.5 mm male connector enables connection between devices and power supplies that use slightly different DC jack sizes while maintaining polarity and mechanical stability. The flat, black design conserves space and offers a discreet appearance when mounted.

Suitable for

• Adapting between DC 5.5 x 2.1 mm and DC 5.5 x 2.5 mm power plugs
• Snap-in mounting in Keystone patch panels, faceplates or surface-mount boxes
• Routing power through housings or devices with limited internal space

Key specifications

• Connector 1: DC 5.5 x 2.1 mm (female)
• Connector 2: DC 5.5 x 2.5 mm (male)
• Colour: Black
• Dimensions: 16.2 mm (W) x 42.3 mm (D) x 21.8 mm (H)
• Brand: DELOCK, MPN: 84163, EAN: 4043619841639

How to use

Insert the module into a compatible Keystone slot or snap-in opening until it locks into place. Connect the power supply to the male DC 5.5 x 2.5 mm plug and the powered device to the female DC 5.5 x 2.1 mm jack. Verify that the module is firmly seated in the panel and that cable routing does not strain the connectors.

Recommendations

To ensure correct operation, confirm that the voltage, current and polarity of the connected power supply match the requirements of the powered device before applying power.
