Keystone-module DeLOCK 86505

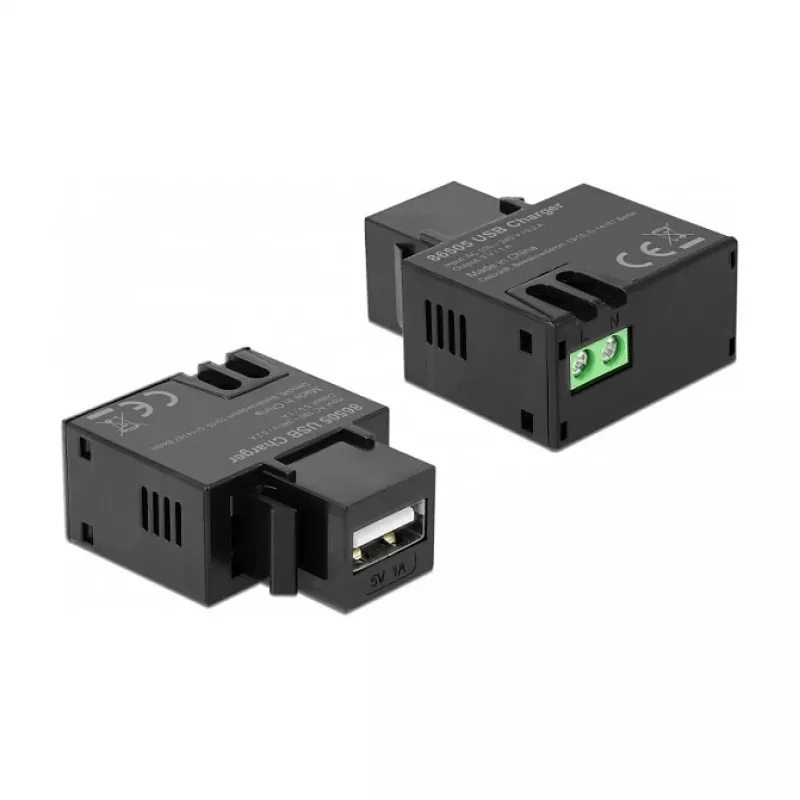

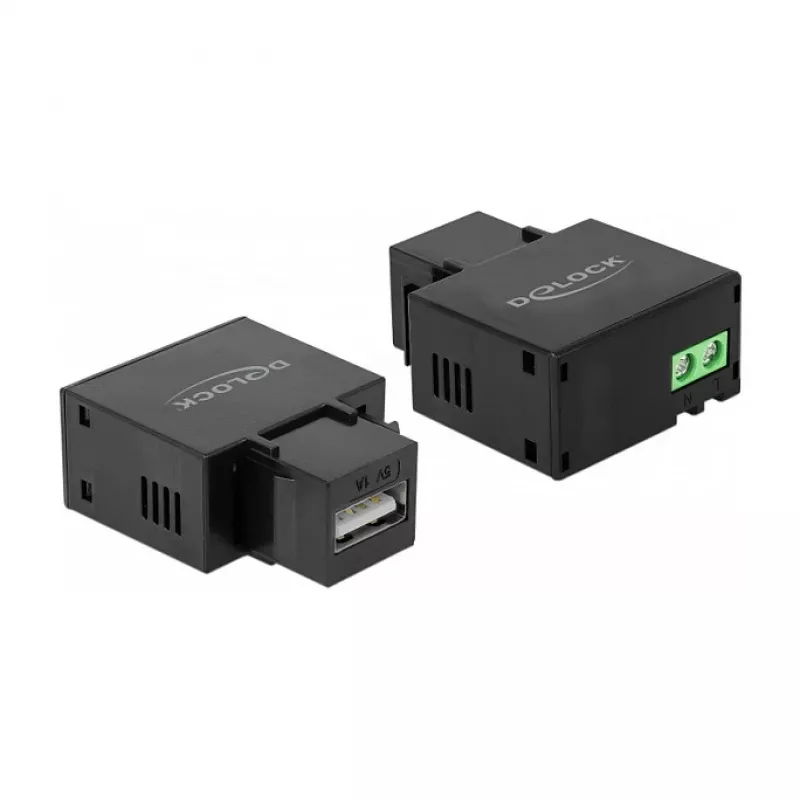

The DeLOCK 86505 keystone module provides a USB Type-A charging port in a compact, flat black housing suitable for snap-in mounting into keystone panels, faceplates or surface-mount boxes. It measures 16.7 mm (W) × 40.4 mm (D) × 32.5 mm (H) and is supplied as a single module for installations that need a recessed USB A connector and a terminal interface.

Advantages

The keystone format ensures compatibility with standard Keystone patch panels and faceplates for quick installation. Its flat construction and black colour allow discreet integration into furniture or wall-mount boxes. The module combines a USB A connector with a terminal interface, enabling easy wiring for power or data in customised installations.

Suitable for

• Keystone patch panels and structured cabling faceplates
• Surface-mount boxes and furniture installations
• Custom USB power or data outlets requiring a terminal connection

Key specifications

• Brand: DELOCK
• Model / MPN: 86505
• EAN: 4043619865055
• Connector 1: USB A (Type-A)
• Connector 2: Terminal
• Colour: Black
• Dimensions (W × D × H): 16.7 × 40.4 × 32.5 mm
• Sold as: Single module

How to use

Snap the module into a compatible keystone opening in a patch panel, faceplate or surface-mount box until it clicks into place. Connect the wiring to the terminal interface following the electrical requirements of your application, then plug a USB Type-A cable or device into the front USB A port. Ensure correct polarity and secure connections before applying power.

Recommendations

Use this module only in compatible keystone frames or housings and follow local electrical safety standards when wiring the terminal connector. Verify voltage and current requirements of connected devices to avoid overloading the port.
