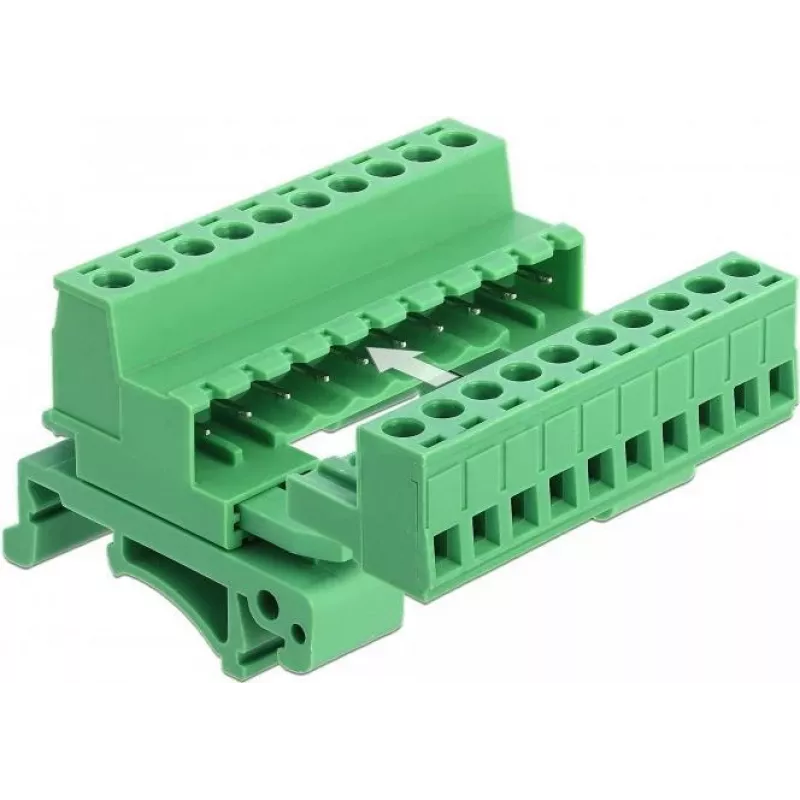

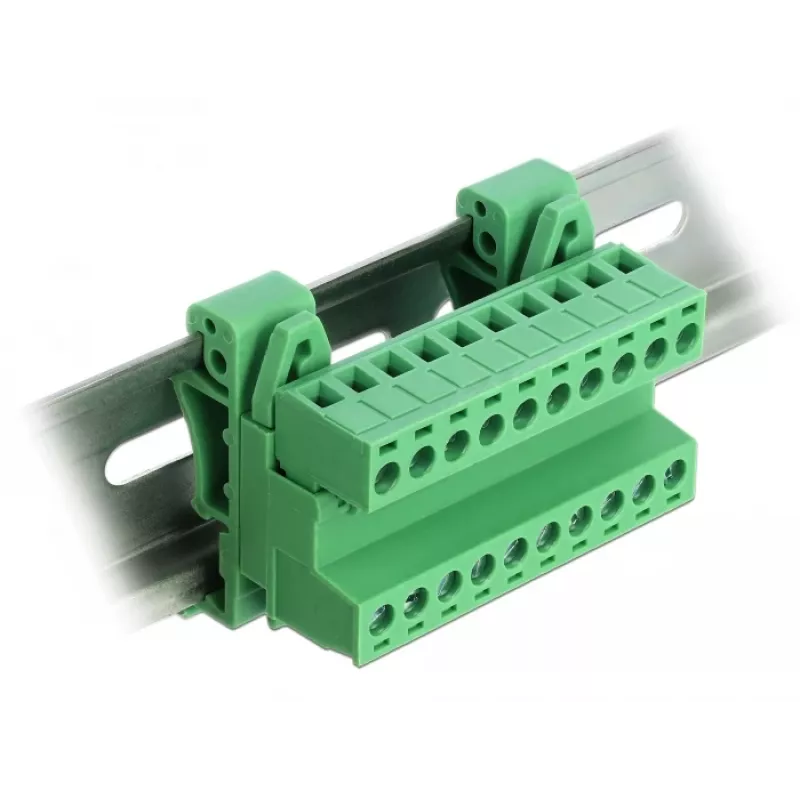

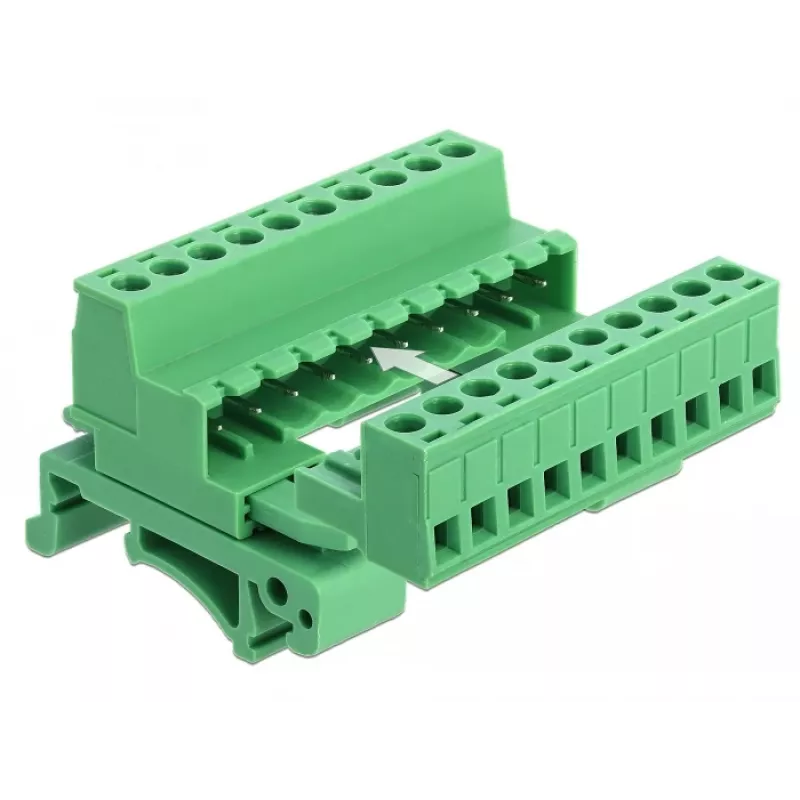

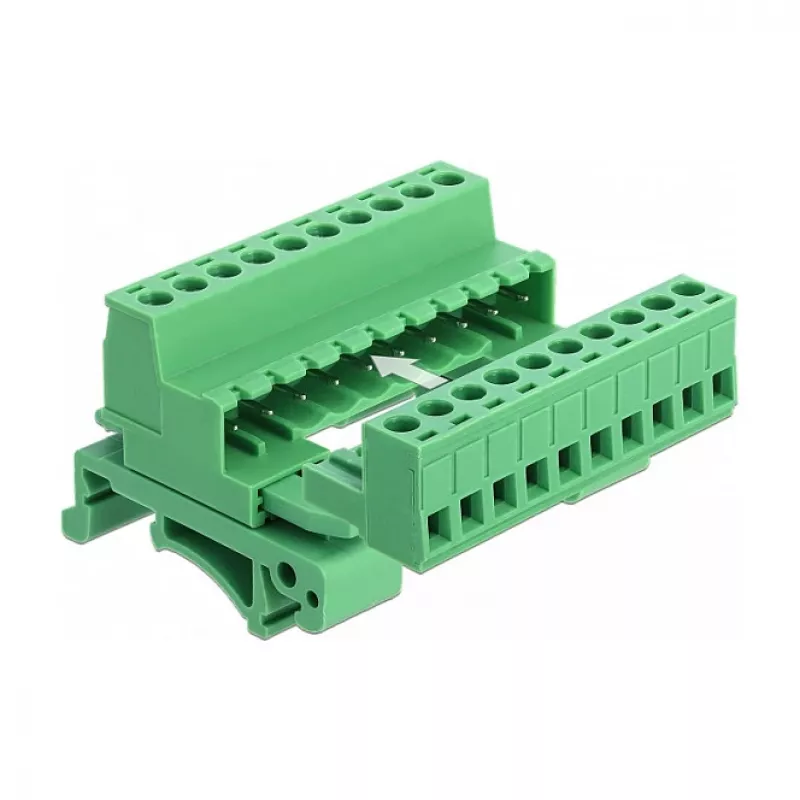

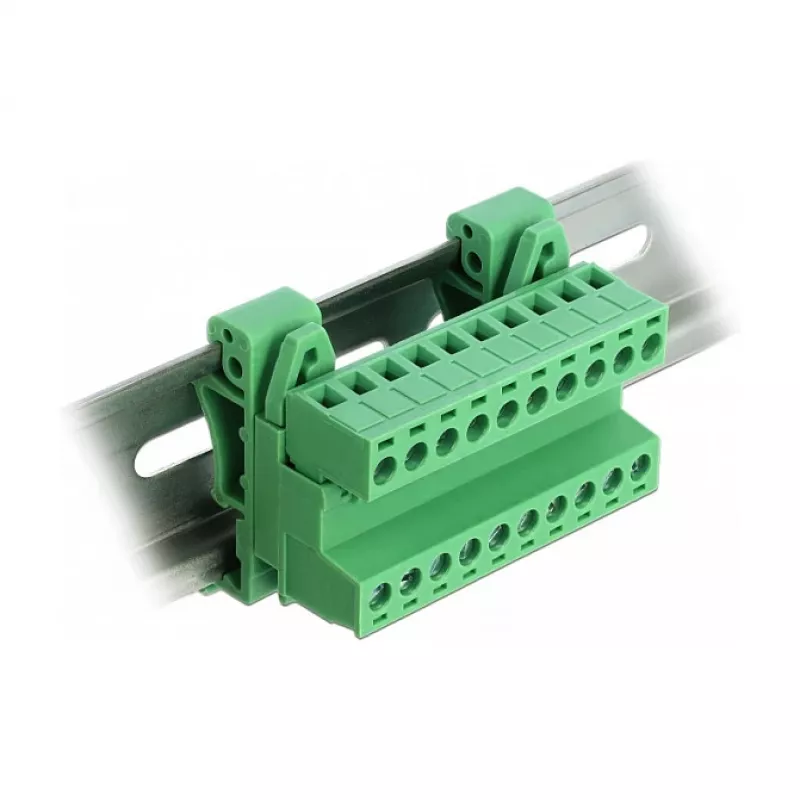

DELOCK klemmenblok-set voor DIN-rail 10-polig met 5,08 mm rastermaat haaks

Industrial installations often require a reliable and organized way to connect multiple wires to a DIN rail. This terminal block set provides a secure, angled connection point for up to 10 poles, simplifying wiring in control cabinets and automation systems.

Who is it for

Electricians, panel builders, and automation engineers who need a dependable pluggable terminal block for DIN rail mounting. Ideal for applications where space is limited and wires must enter at a 90-degree angle.

Main features

• 10-pole pluggable terminal block set with 5.08 mm pitch
• Angled (90°) wire entry for compact installations
• DIN rail (TS-35) mounting for quick and secure installation
• Screw terminal connection for solid and stranded wires from 0.2 to 2.5 mm² (24-12 AWG)
• Rated for 300 V and 10 A
• Green polyamide 66 housing with brass, tin-plated contacts

Specifications

• Product Type: Pluggable Terminal Block Set
• Number of Poles: 10
• Pitch: 5.08 mm
• Mounting Type: DIN Rail (TS-35)
• Terminal Orientation: Angled (90 degrees)
• Wire Entry Angle: 90 degrees
• Connector Type: Screw Terminal
• Wire Gauge (Solid): 0.2 - 2.5 mm² (24-12 AWG)
• Wire Gauge (Stranded): 0.2 - 2.5 mm² (24-12 AWG)
• Rated Voltage: 300 V
• Rated Current: 10 A
• Insulation Material: Polyamide 66 (PA66)
• Contact Material: Brass, Tin-plated
• Screw Material: Steel, Zinc-plated
• Operating Temperature: -40°C to +105°C
• Colour: Green
• Withstanding Voltage: 2000 V AC / 1 min
• Insulation Resistance: >500 MΩ at 500 V DC
• Screw Torque: 0.4 Nm
• Wire Strip Length: 7-8 mm

Tips

For a secure connection, tighten the screws to a torque of 0.4 Nm and strip wires to 7-8 mm before insertion. Ensure the DIN rail is properly grounded and the terminal block is fully seated before applying power.
