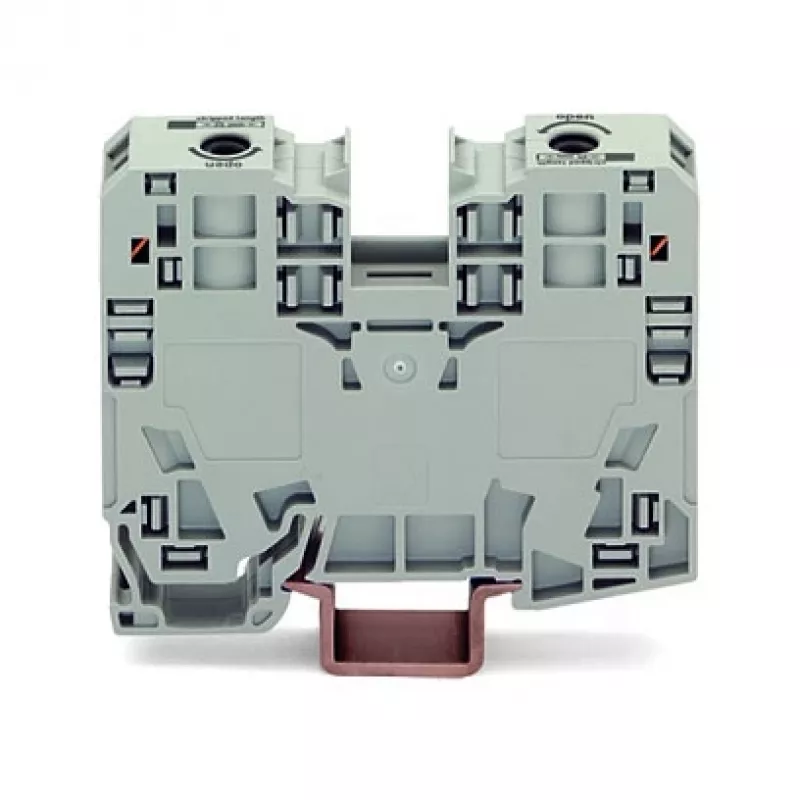

WAGO 285-135 2-aderige doorvoerklem, 35 mm², CAGE CLAMP, grijs

This WAGO 285-135 through terminal block delivers a robust and reliable wiring solution for demanding industrial applications. Engineered for 2-conductor through wiring with a 35 mm² rated cross-section, it provides a secure, maintenance-free connection for solid and fine-stranded conductors up to 50 mm². The CAGE CLAMP® connection technology ensures vibration-proof, corrosion-resistant terminations, making it an ideal choice for control cabinets, machinery, and power distribution systems.

Advantages

The CAGE CLAMP® mechanism offers fast, tool-free wiring, reducing installation time and labor costs. Its compact design saves valuable DIN-rail space, while the polyamide insulation provides excellent electrical and thermal performance. With a rated voltage of 1000 V and a rated current of 125 A, this terminal block handles high-power circuits with ease. It is also approved for Ex e applications (rated current 100 A) and meets stringent international standards, ensuring safety and compliance in hazardous environments.

Suitable for

• Control cabinet wiring and panel building
• Power distribution and motor circuits
• Ex e (increased safety) installations
• Railway and marine applications (DNV GL approved)

Key specifications

• Connection technology: CAGE CLAMP®
• Number of conductors: 2
• Number of potentials: 1
• Rated cross-section: 35 mm²
• Conductor sizes: solid/fine-stranded 10–50 mm² (8–1/0 AWG)
• Rated voltage (III/3): 1000 V
• Rated impulse voltage (III/3): 8 kV
• Rated current: 125 A
• Rated current (Ex e II): 100 A
• Housing material: Polyamide (PA)
• Colour: Gray
• Mounting: DIN-35 rail
• Pollution degree: 3
• Stripped length: 28–30 mm
• Wiring type: Front-entry
• Approvals: VDE, UL, CSA, GL, KEMA/KEUR, ATEX, IECEx, EAC, DNV GL

Recommendations

For optimal performance, use a screwdriver with a blade width of 0.6 x 3.5 mm for actuating the CAGE CLAMP®. Ensure the conductor is stripped to the specified length (28–30 mm) and inserted fully until it stops. This terminal block is suitable for use with copper conductors only. For Ex e applications, follow the specific installation guidelines.
