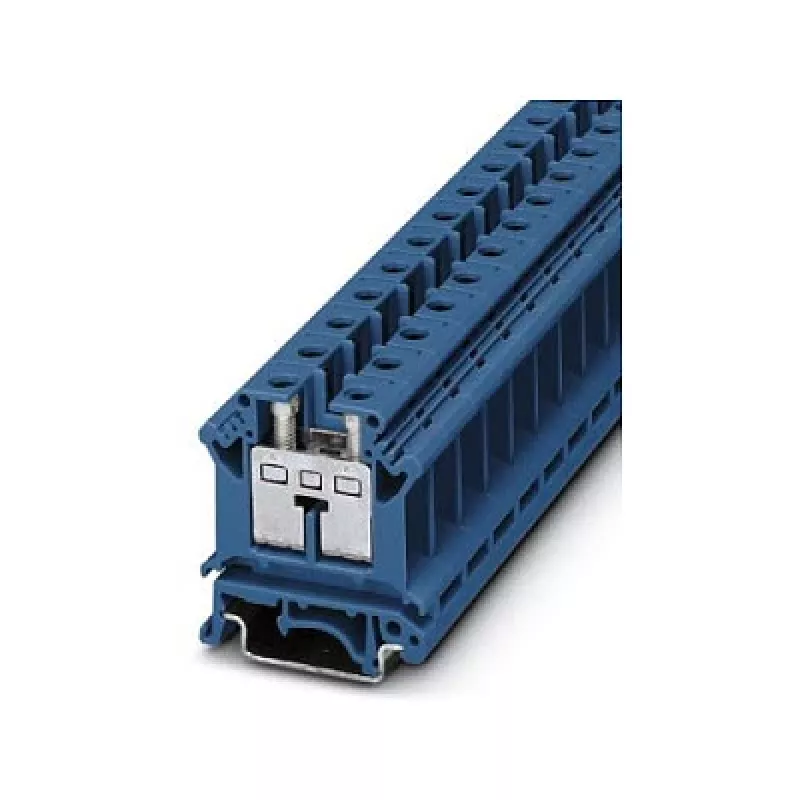

Phoenix 3006205 UIK 16 BU doorgangsklem, blauw, 16 mm², schroefaansluiting, DIN-rail

The Phoenix 3006205 UIK 16 BU is a feed-through terminal block designed for reliable electrical connections on DIN rails. This blue screw-clamp terminal accommodates conductor cross-sections from 0.5 to 16 mm² (AWG 20 to 6) and supports a nominal current of 76 A at a rated voltage of 1000 V, making it suitable for demanding industrial applications.

Advantages

Thanks to its screw connection technology, the UIK 16 BU provides a gas-tight, vibration-resistant connection. The polyamide housing offers outstanding insulation and meets UL 94 V-0 flammability requirements. Its compact design enables dense wiring, while the wide operating temperature range from -60 °C to 105 °C guarantees performance in harsh environments.

Suitable for

• Feed-through wiring in control cabinets and junction boxes
• Industrial machinery and switchgear
• Distribution boards and power supplies

Key specifications

• Terminal type: Feed-through terminal block
• Connection: Screw connection, 2 connections
• Nominal voltage (IEC): 1000 V
• Nominal current (IEC): 76 A
• Conductor cross section: 0.5 – 16 mm² solid/flexible
• AWG wire size: 20 – 6
• Stripping length: 12 mm
• Screw thread: M4, tightening torque 1.5 – 1.8 Nm
• Mounting: DIN rail NS 35/7.5 or NS 35/15
• Operating temperature: -60 °C to 105 °C
• Housing material: Polyamide, flame retardant UL 94 V-0
• Colour: Blue

Recommendations

For optimal performance, use a suitable screwdriver with the correct torque setting (1.5 – 1.8 Nm) and strip the conductor to the recommended length of 12 mm. Ensure the terminal is mounted securely on the DIN rail.
