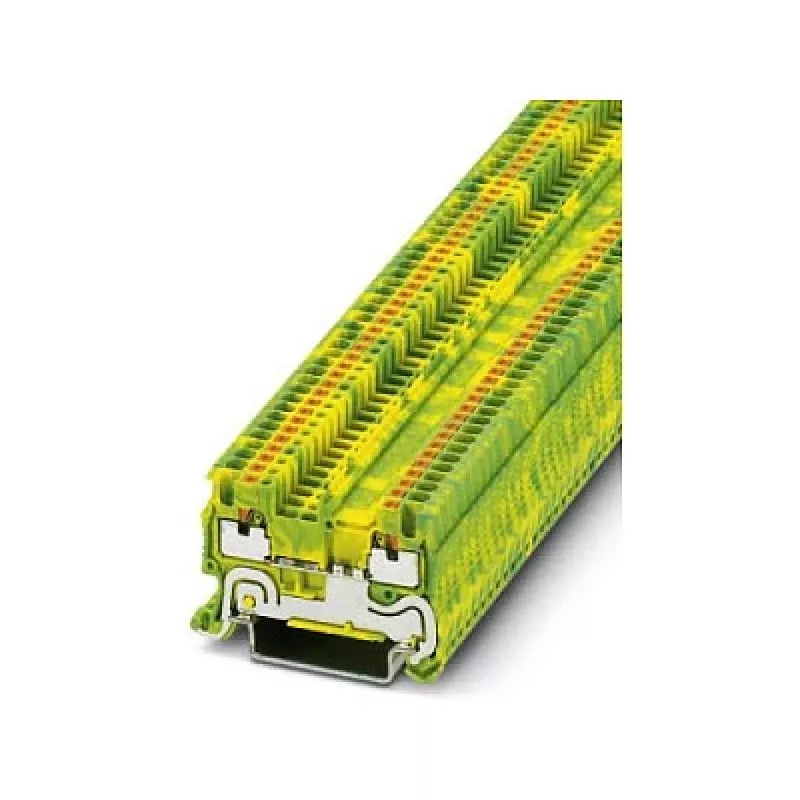

Phoenix Contact PT 1,5/S-PE doorvoerklem, aardleiding, Push-in, 1,5 mm², groen-geel

This feed-through terminal block with protective earth (PE) function provides a secure and reliable grounding point in electrical installations. Its push-in connection technology allows for tool-free wiring of solid and stranded conductors, significantly reducing installation time. The compact design and green-yellow color coding ensure clear identification and safe use in control cabinets and distribution boxes.

Advantages

The push-in connection system enables fast and effortless conductor termination without the need for special tools. The terminal block is made of high-quality polyamide (PA) with UL 94 V0 flammability rating, ensuring excellent mechanical and thermal resistance. It supports a wide range of conductor cross-sections from 0.14 mm² to 1.5 mm², making it versatile for various applications. The PE function guarantees reliable grounding, enhancing safety in electrical systems.

Suitable for

• Industrial control panels and switchgear
• Building automation and electrical distribution
• Machine building and equipment manufacturing
• Renewable energy systems
• Any application requiring a compact PE terminal block with push-in connection

Key specifications

• Type: Feed-through terminal block, PE function
• Connection method: Push-in
• Nominal cross section: 1.5 mm²
• Number of connections: 2
• Number of positions: 2
• Mounting type: DIN rail NS 35/7,5 and NS 35/15
• Color: Green-yellow
• Insulating material: Polyamide (PA)
• Flammability rating: UL 94 V0
• Conductor cross section range: 0.14 mm² - 1.5 mm² (solid, stranded, with/without ferrule)
• Stripping length: 8 mm - 10 mm
• Operating temperature: -60 °C to 105 °C
• Standards/Approvals: IEC 60947-7-2, UL, cUL, VDE, EAC
• Pollution degree: 3
• Overvoltage category: III
• Number of levels: 1

Recommendations

For optimal performance, ensure proper DIN rail mounting and use conductors within the specified cross-section range. The push-in connection is designed for easy insertion; to release, use a standard screwdriver. This terminal block is ideal for applications where space is limited and reliable grounding is essential.
