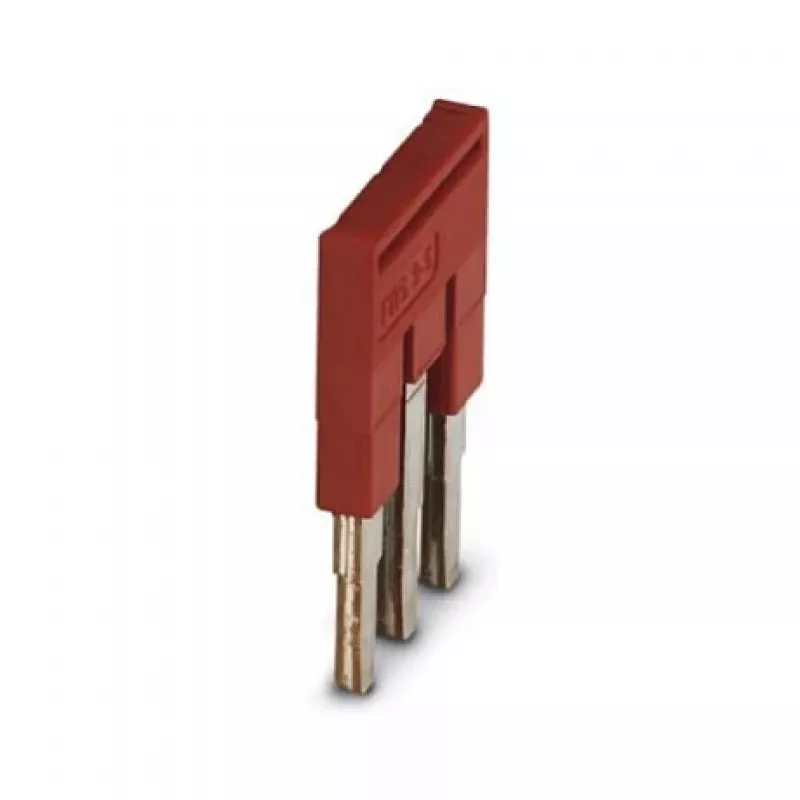

Phoenix 3030174 FBS 3-5 steekbrug, 3-polig, 5,2 mm rastermaat, rood

Rated for 24 A and 500 V, the Phoenix 3030174 FBS 3-5 plug-in bridge delivers robust power distribution across three positions with a 5.2 mm pitch. Its compact red housing, made from flame-retardant polyamide (UL 94 V0), ensures safe operation in demanding industrial environments.

Overview

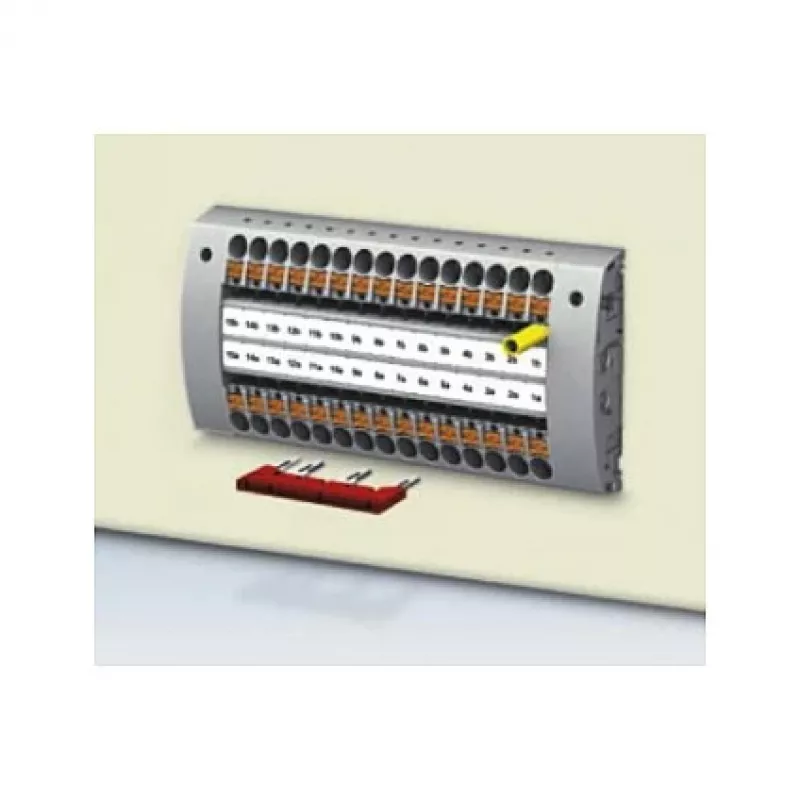

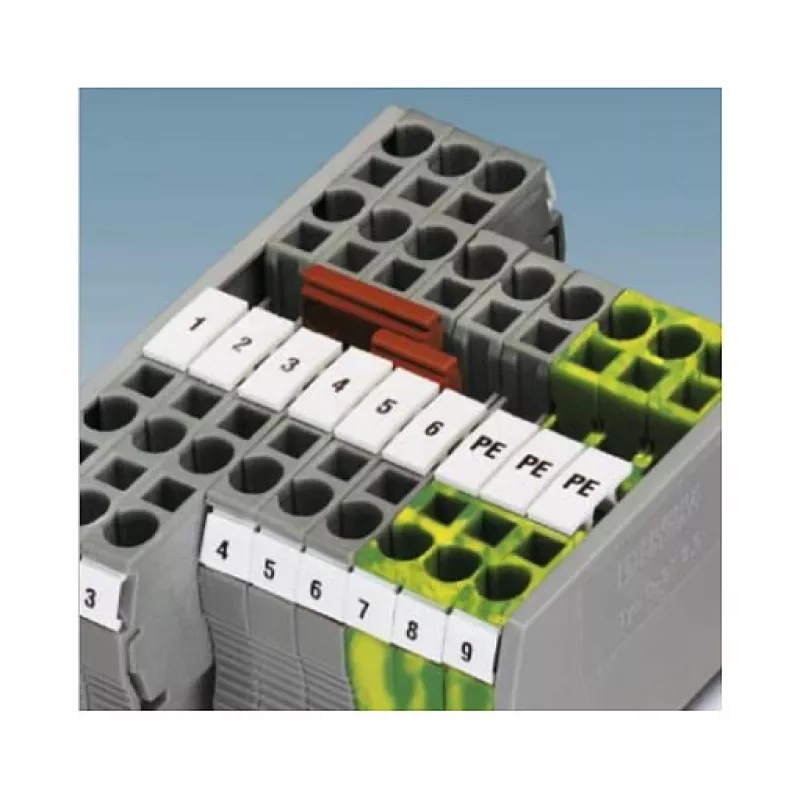

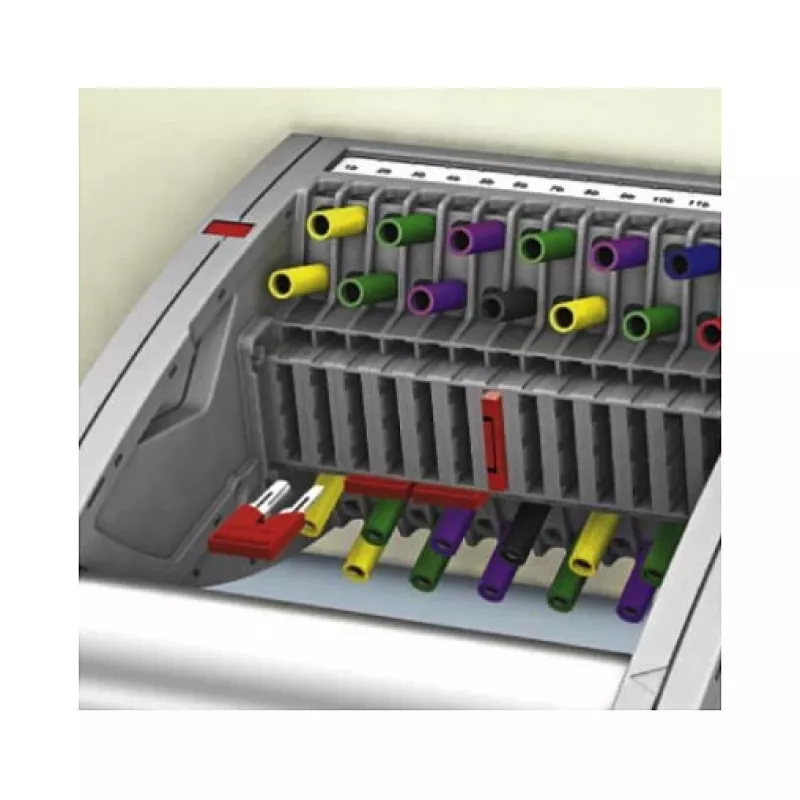

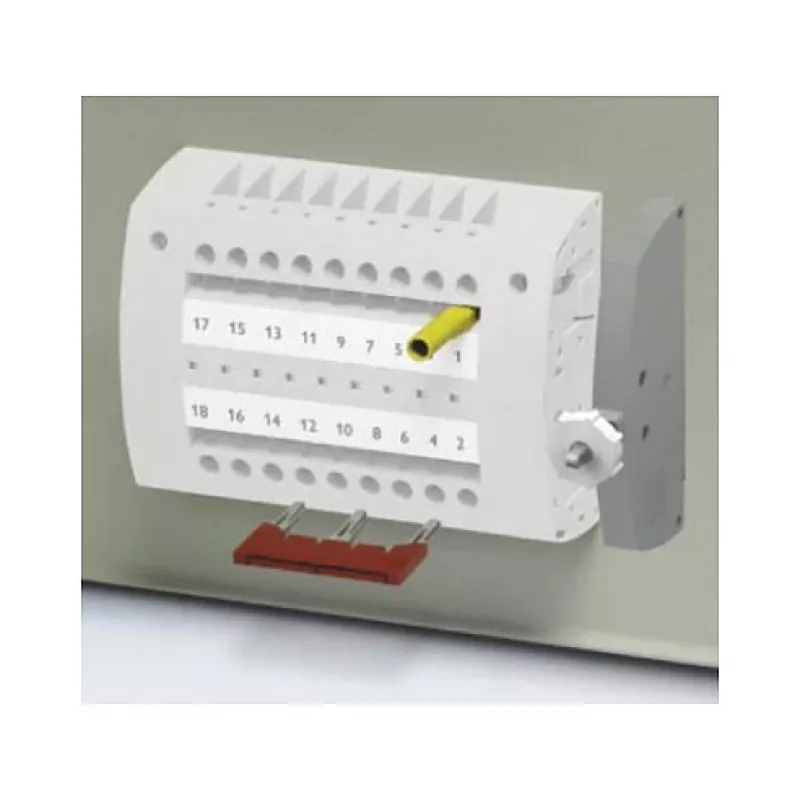

The Phoenix 3030174 FBS 3-5 is a 3-position plug-in bridge designed for terminal blocks with 5.2 mm pitch, such as the ST, UT, and PT series. It provides a reliable and efficient method for jumpering adjacent terminals, simplifying wiring and reducing installation time. The bridge is rated for 24 A current (with 1.5 mm² conductor) and 500 V voltage, with a surge voltage rating of 6 kV, making it suitable for a wide range of industrial control and power distribution applications.

What stands out

• High current rating of 24 A for reliable power distribution.
• Flame-retardant polyamide housing (UL 94 V0) for enhanced safety.
• Wide operating temperature range from -60 °C to 105 °C.
• Plug-in design for quick and tool-free installation.
• Compatible with popular Phoenix Contact terminal block series.

Technical details

• Product type: Plug-in bridge
• Number of positions: 3
• Pitch: 5.2 mm
• Rated voltage (III/2): 500 V
• Rated surge voltage: 6 kV
• Rated current: 24 A (for 1.5 mm² conductor)
• Insulating material: PA (Polyamide)
• Colour: Red
• Flammability rating: UL 94 V0
• Operating temperature: -60 °C to 105 °C
• Mounting type: Plug-in
• Standards/Approvals: IEC 60947-7-1
• Environmental compliance: RoHS, REACH

Our verdict

The Phoenix 3030174 FBS 3-5 plug-in bridge is a dependable choice for professionals seeking a high-performance, safety-oriented jumpering solution. Its robust construction and broad compatibility make it an essential component for efficient terminal block wiring.
