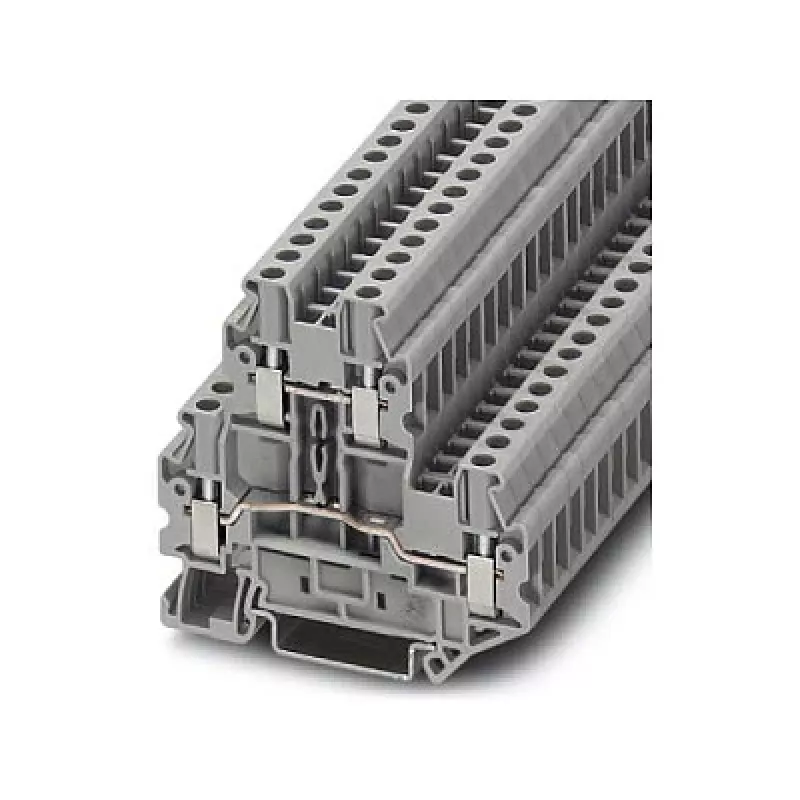

Phoenix 3044636 UTTB 2,5 Dubbelverdieping Rijgklem

For installations where space is at a premium but connectivity demands remain high, the Phoenix 3044636 UTTB 2,5 double-level terminal block delivers two independent potential levels in a single compact housing. This design effectively doubles wiring density on the DIN rail without increasing footprint, making it a practical choice for control cabinets and distribution boards. The screw connection system ensures reliable, maintenance-free clamping for solid and flexible conductors up to 2.5 mm², while the gray polyamide insulation meets UL 94 V0 flammability requirements for enhanced safety.

Highlights

• Double-level design: two potentials in one block, saving rail space.
• Screw connection with M3 thread, torque 0.5–0.6 Nm for secure clamping.
• Wide conductor range: 0.14–4 mm² solid, 0.14–2.5 mm² flexible (AWG 26–12).
• Rated for 500 V / 24 A (IEC), pollution degree 3.
• Mounts on standard DIN rail NS 35/7.5 or NS 35/15.
• Insulating material: polyamide (PA), flammability rating UL 94 V0.

In daily use

Electricians appreciate the straightforward wiring: strip 9 mm of insulation, insert the conductor, and tighten the screw to the specified torque. The double-level arrangement keeps wiring organized and accessible, reducing troubleshooting time. The block's compact dimensions allow high-density packing, and the robust PA housing withstands mechanical stress and thermal loads typical in industrial environments.

Full specifications

• Type: Double-level terminal block
• Number of levels: 2
• Number of connections: 4
• Number of potentials: 2
• Connection method: Screw connection
• Nominal voltage (IEC): 500 V
• Nominal current (IEC): 24 A
• Nominal cross section: 2.5 mm²
• Conductor cross section solid: 0.14–4 mm²
• Conductor cross section flexible: 0.14–2.5 mm²
• AWG range: 26–12
• Stripping length: 9 mm
• Screw thread: M3
• Tightening torque: 0.5–0.6 Nm
• Mounting type: DIN rail NS 35/7.5, NS 35/15
• Colour: Gray
• Insulating material: PA (Polyamide)
• Flammability rating: UL 94 V0
• Pollution degree: 3

Final note

Engineered for reliability and space efficiency, the Phoenix 3044636 UTTB 2,5 is a dependable choice for professional electrical installations requiring compact, high-density wiring solutions.
