DeLOCK Mini PCIe I/O 1 x USB 2.0 Type-A bus full-size half-size

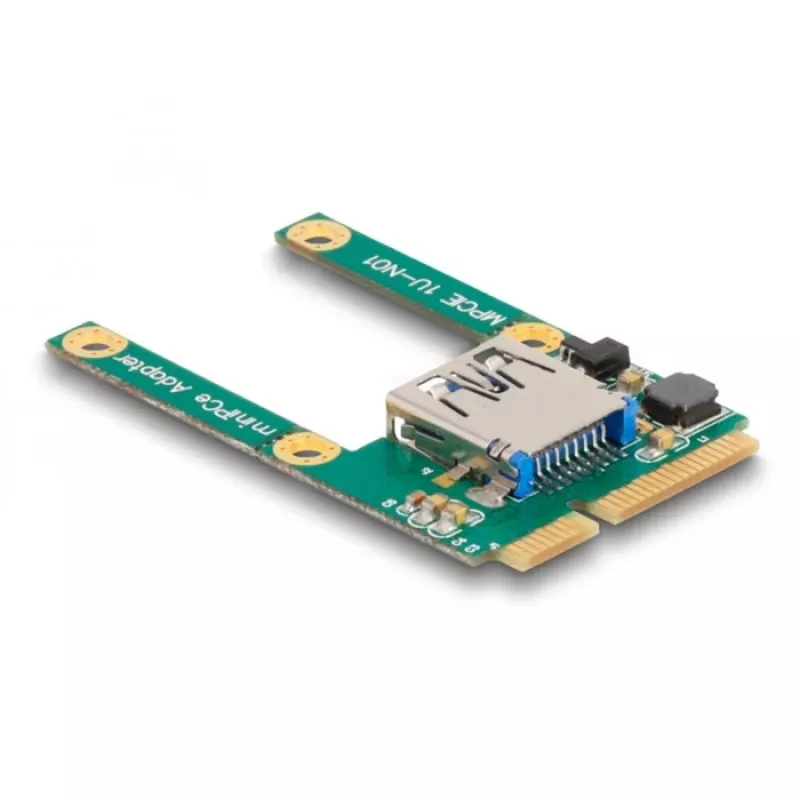

This Mini PCIe module by Delock adds one external USB 2.0 Type-A female port to a system. The board supports both full-size and half-size Mini PCIe card formats and provides a standard 5 V output with up to 0.5 A current for connected devices. The module is suitable for connecting USB peripherals such as WLAN sticks or USB flash drives and offers a maximum data transfer rate of 0.48 Gbit/s.

Advantages

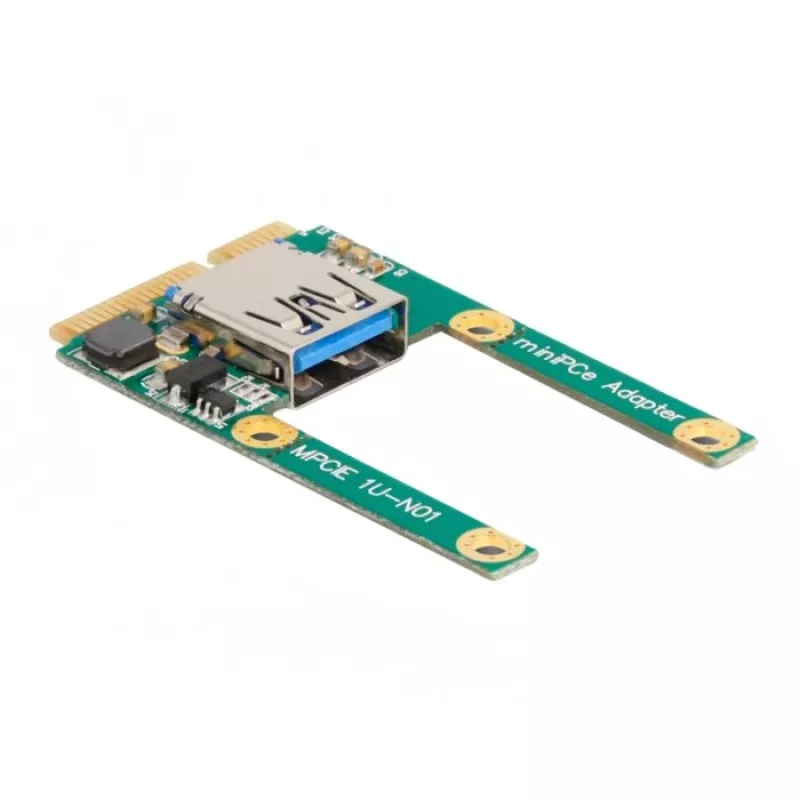

The DeLOCK Mini PCIe I/O provides a compact way to expand a computer with an additional USB 2.0 Type-A port without requiring extra cables or external hubs. Its design allows conversion between full and half size at the marked cut line, and the module delivers standard USB power and data rates for common peripherals. The product is finished in green and is compatible with Mini PCIe slots.

Suitable for

• Adding a USB port to a desktop or embedded system with a Mini PCIe slot
• Connecting USB WLAN adapters
• Connecting USB flash drives or external storage (USB 2.0 speeds)
• Small form-factor systems where internal expansion is required

Key specifications

• Connector: 1 x USB 2.0 Type-A female

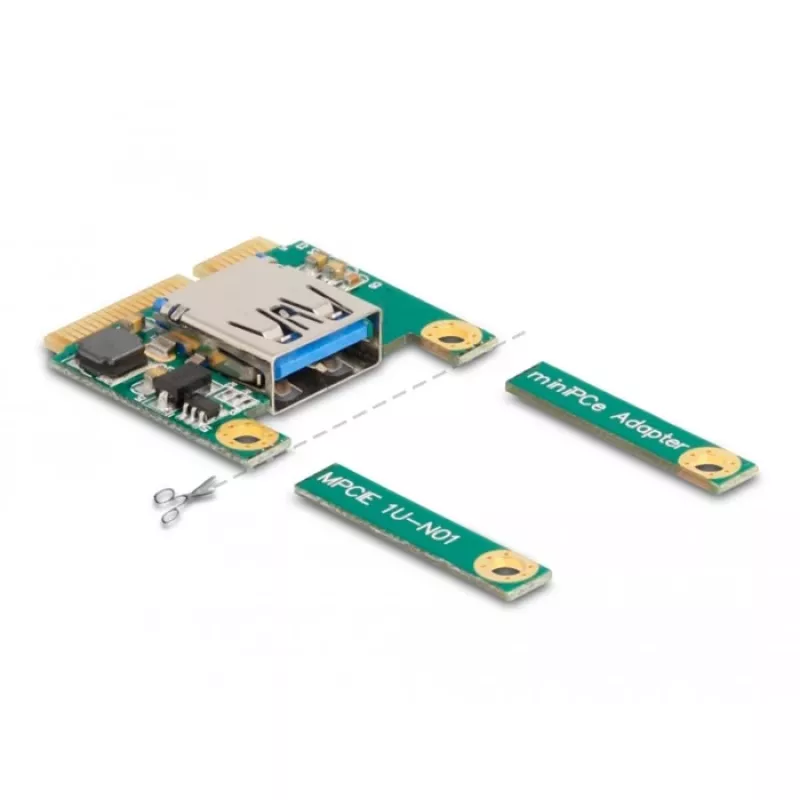

• Interface: Mini PCIe (full size / can be cut to half size)
• Maximum data rate: 0.48 Gbit/s
• Output voltage: 5 V
• Output current: 0.5 A
• Product colour: Green
• Brand: DELOCK, MPN: 80039, EAN: 4043619800391

How to use

Power off the host system and locate an available Mini PCIe slot. If necessary, trim the module along the marked position to switch from full size to half size before insertion. Insert the module into the Mini PCIe slot and secure it according to the host system’s mechanical procedures. After booting the system, connect USB devices to the external Type-A connector. Ensure connected devices do not exceed the port’s 0.5 A current limit.

Recommendations

Use this module in systems with compatible Mini PCIe slots and drivers. For devices with higher power requirements, use an externally powered hub or a dedicated internal power solution. Observe anti-static precautions when handling and follow the host motherboard’s installation guidelines.
