DELOCK Patch Panel module SC simplex blauw/wit 45° Easy 90896

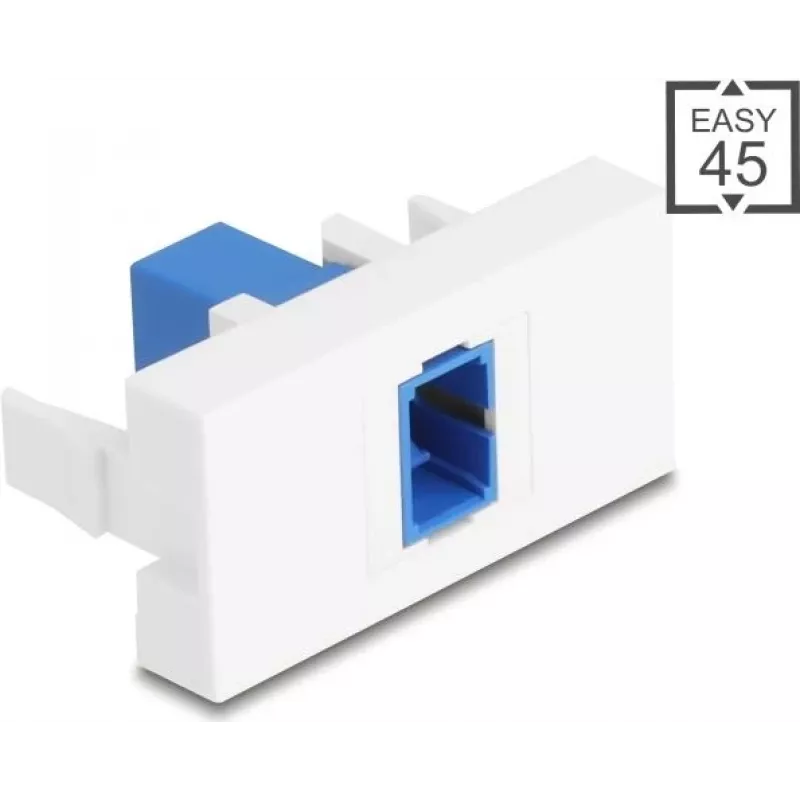

DELOCK Patch Panel Module SC Simplex Blue/White 45° Easy 90896 is an SC Simplex fiber adapter insert designed for installation in standard patch panels and compatible housings. The module provides a compact 45° oriented connection point for single-fiber SC Simplex connectors, combining a blue and white finish that helps with visual identification and cable management in telecommunications racks and data cabinets.

Advantages

The module offers a space-efficient 45° orientation that simplifies cable routing and reduces bend stress on fibers. Its standardized SC Simplex interface ensures compatibility with common single-fiber connectors. The clear color coding aids fast recognition during installation and maintenance. The compact construction allows high-density port population in network enclosures without additional adapters.

Suitable for

Key specifications

How to use

Install the module into a compatible patch panel or adapter frame by aligning the module release mechanism with the panel slot and snapping it into place according to the patch panel manufacturer’s instructions. Terminate or connect SC Simplex fiber connectors to the front face of the module, ensuring proper insertion until an audible or tactile click is felt. Route the fiber cables through available cable management paths, avoiding sharp bends and maintaining appropriate bend radius. For removal, depress the module latch or release tab and pull the module out straight to prevent damage to the housing or installed fibers.

Recommendations

Use the module in conjunction with compatible SC Simplex connectors and maintain recommended fiber bend radii during routing. Label ports as needed for serviceability. Inspect connectors and adapters with appropriate cleaning tools before mating to minimize insertion loss. Follow standard fiber handling safety practices and manufacturer guidance when installing or reconfiguring connections.
