DELOCK RJ12-modulebus 6P6C UTP wit 90898

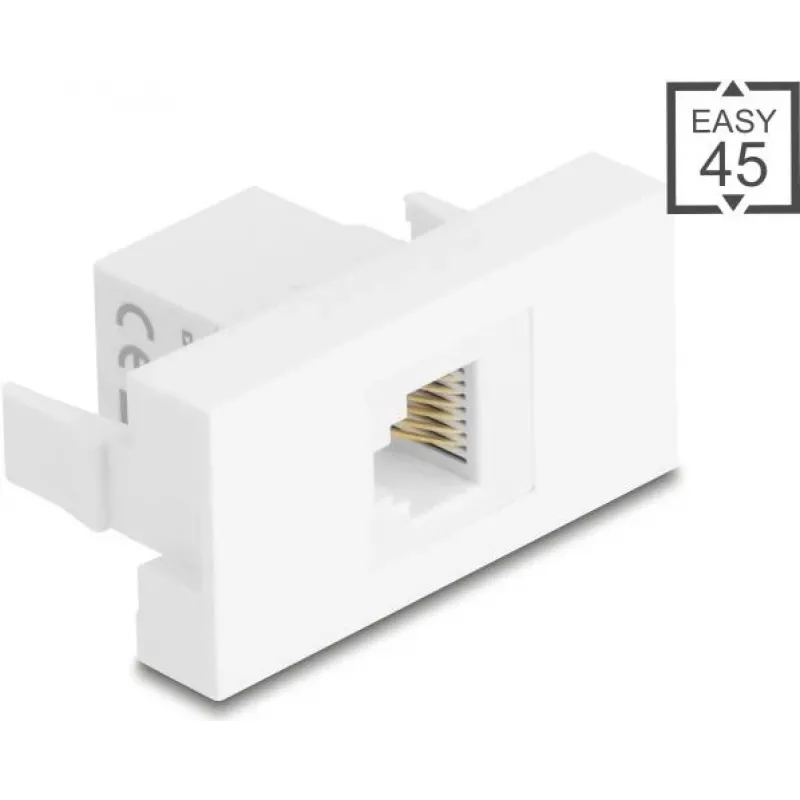

DELOCK RJ12 Module Socket 6P6C UTP White 90898 is a single-port RJ12 module designed for modular faceplates, patch panels and keystone systems. The compact white module provides a standard 6P6C UTP connection for telephone lines and low-speed data circuits, enabling tidy installations in residential and commercial wiring setups. The unit is intended to be snapped into compatible housings to create customized outlet configurations while keeping wiring accessible and organized.

Advantages

The module supports the common 6-position, 6-contact RJ12 pinout, ensuring compatibility with existing telephony and control equipment. Its UTP design reduces unnecessary shielding where unshielded twisted pair cabling is used. The snap-in mounting mechanism simplifies installation and replacement without the need for special tools, and the compact footprint allows multiple modules to be combined in a single wall plate or patch panel. The white finish offers a neutral appearance that integrates with many interior designs.

Suitable for

Key specifications

How to use

Prepare the cabling and terminate wires according to the installation wiring scheme required for the telephone or control device. Insert the terminated cable into the rear termination points of the module and secure the connections following standard 6P6C wiring. Snap the module into a compatible faceplate or patch panel cutout until it clicks into place. Test the line for continuity and correct pin mapping before finalizing the installation. To replace the module, depress the retaining clips and pull the module from the housing.

Recommendations

Use standard solid-core UTP communication cable rated for wall or patch installations and follow local wiring codes. Avoid using the module in environments with excessive moisture or mechanical stress. For structured cabling, label the port and record its connection to the patch panel or distribution point to simplify maintenance.
