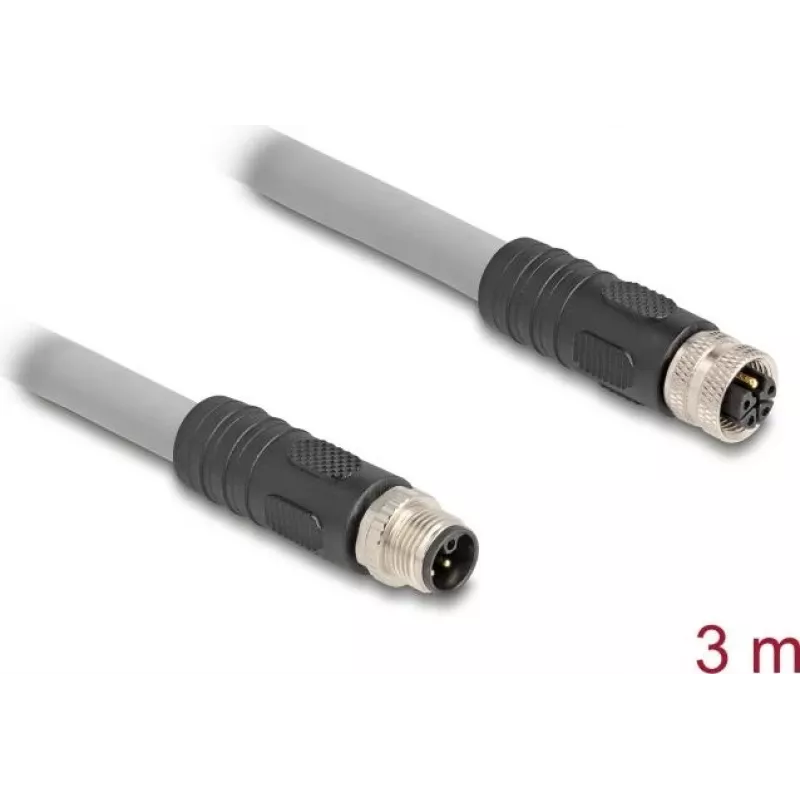

DeLOCK sensor-/actuatorkabel 80540 3 m RST M12 grijs

The DeLOCK sensor/actuator cable 80540 is a 3 m M12 RST cable designed for DC power and signal transmission in industrial environments. The L-coded M12 connector provides five power contacts and is intended for applications requiring low voltage and comparatively high current. The grey cable supports reliable connection of fieldbus components, power supply units, machines and motors where a stable power feed and signal integrity are necessary.

Advantages

The L-coded M12 design offers five power contacts rated for 16 A at 63 V, enabling dependable current transmission for sensor and actuator installations. The 3 m length allows flexible placement of devices while maintaining a compact cable run. The use of standard M12 RST connectors ensures compatibility with common industrial components and simplifies integration into existing systems.

Suitable for

• Supplying power to fieldbus components
• Powering industrial power supply units
• Connecting sensors and actuators in automation systems
• Feeding motors and machine units requiring low voltage, higher current

Key specifications

• Manufacturer: DELOCK
• Model / MPN: 80540
• EAN: 4043619805402
• Connector type: M12, L-coded, RST
• Number of contacts: 5 power contacts
• Rated current: 16 A
• Rated voltage: 63 V
• Cable length: 3 m
• Colour: Grey

How to use

Connect the L-coded M12 RST plug to the corresponding L-coded M12 socket on the device or terminal block, ensuring correct alignment of the keyed connector. Use this cable for direct current power distribution and sensor/actuator signal lines; confirm that the application voltage does not exceed the 63 V rating and that expected current draw remains within 16 A per contact. Route the cable to avoid sharp bends and mechanical strain, and secure connections to prevent accidental disconnection in industrial environments.

Recommendations

Use the DeLOCK 80540 cable in installations where an L-coded M12 connection is required and where voltage and current demands match the 63 V/16 A ratings. For safety and longevity, inspect connectors regularly for wear and ensure cable routing avoids excessive heat, chemicals or mechanical abrasion.
