DeLOCK USB-barcodescanner 1D en 2D bedraad voor vaste montage

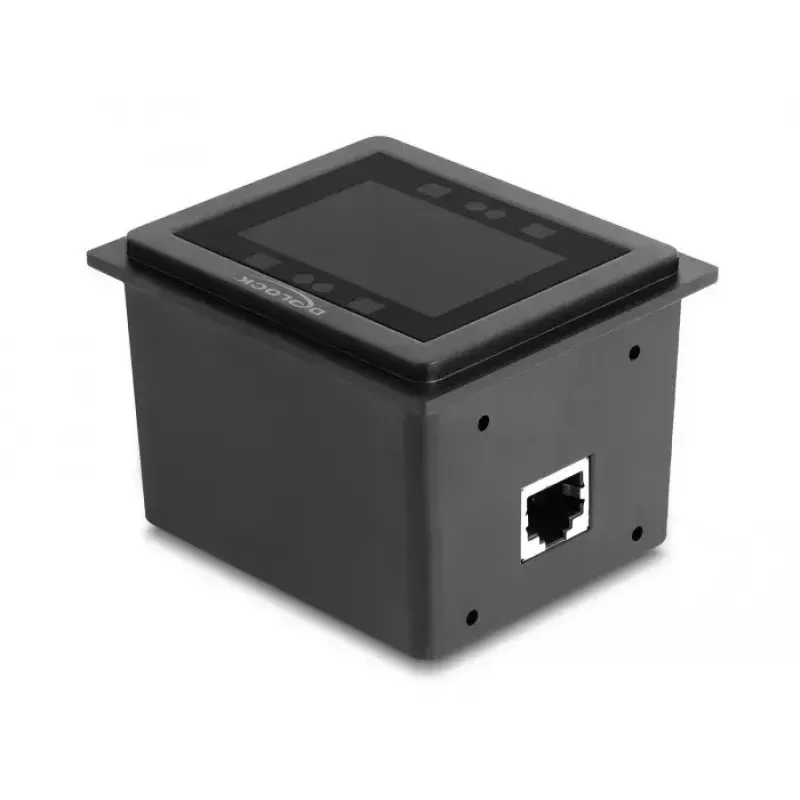

The DeLOCK USB Barcode Scanner for 1D and 2D codes is designed for stationary installation in a table top and wired connection to a host system. With a compact black housing and a CMOS sensor, it supports scanning of all common linear and matrix barcodes, including codes displayed on smartphone screens.

Advantages

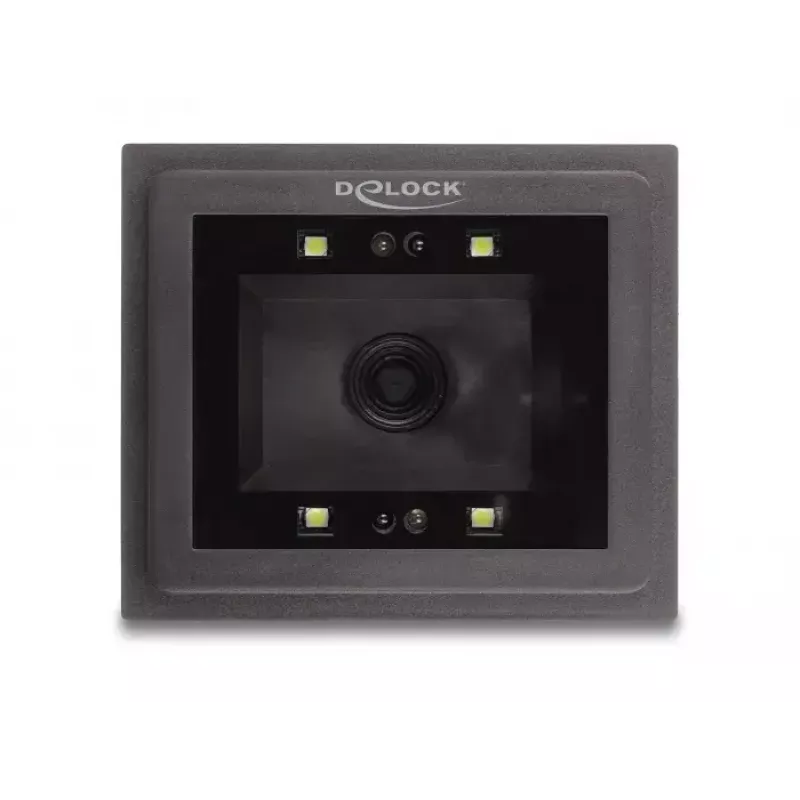

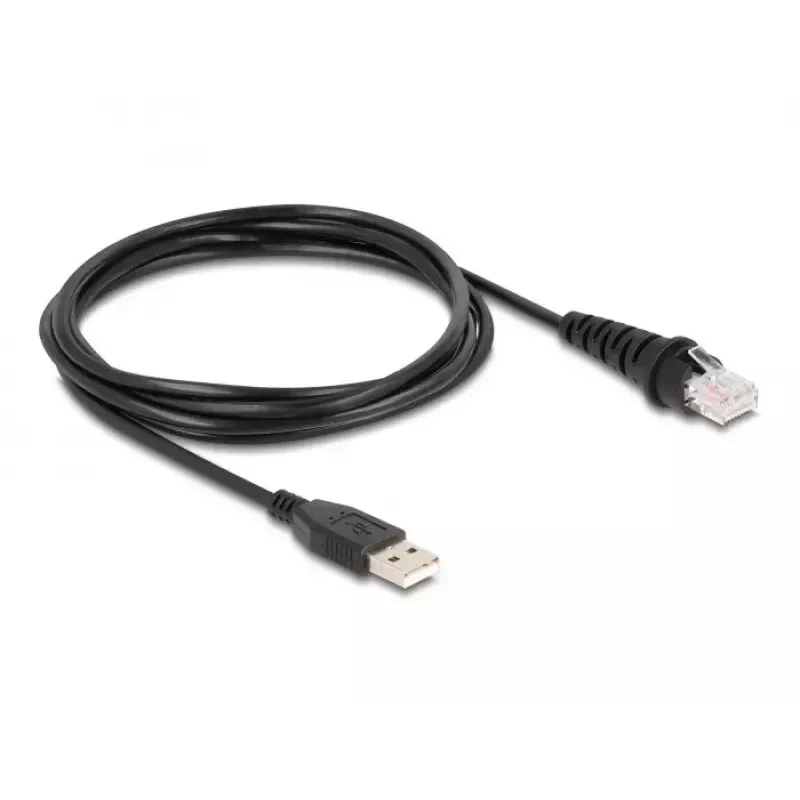

The scanner automatically adapts to ambient brightness and achieves up to 60 reads per second under optimal lighting. An integrated white LED illuminates barcodes in low-light conditions. Data transmission is handled via the included USB cable with wired RJ-50 connectivity, and the device is powered directly from USB with low power consumption.

Suitable for

Key specifications

How to use

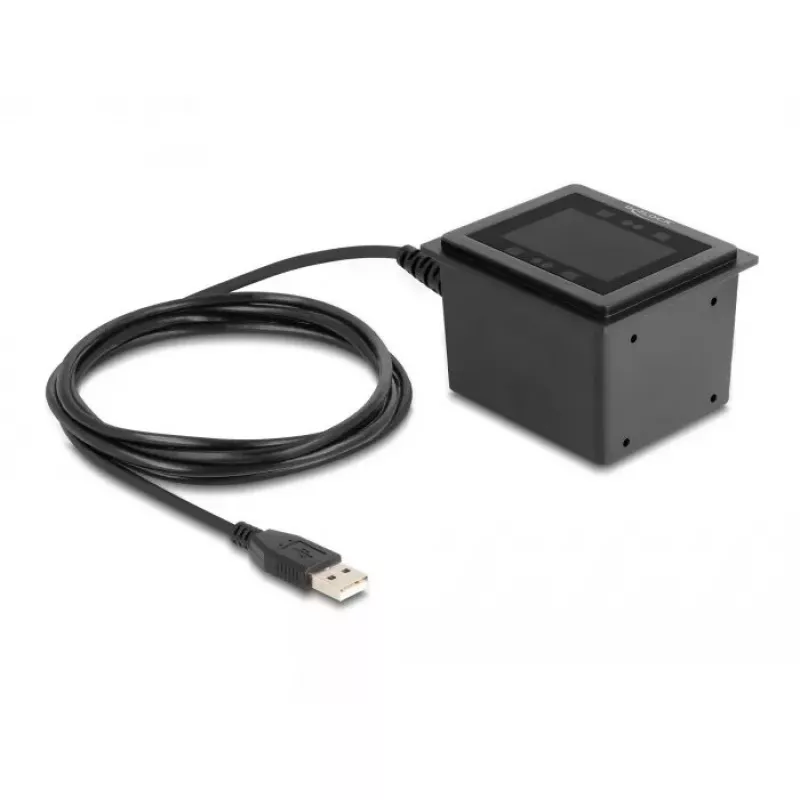

Install the scanner into a table top cutout for stationary mounting and connect it to the host system using the supplied USB cable. Position the barcode within the scanner's field of view and allow the device to read the code; the scanner will automatically adjust to ambient brightness and apply the white LED if additional illumination is required. Scanned data is transmitted immediately over the USB connection to the connected system.

Recommendations

Place the scanner on a stable surface and ensure the barcode is held steady and within the recommended working distance (up to 250 mm). For best performance, use under even lighting and keep the scanner optics free from dust or smudges.
