Delock USB-switch 4 x apparaat 2 x host 5 Gbit/s zwart

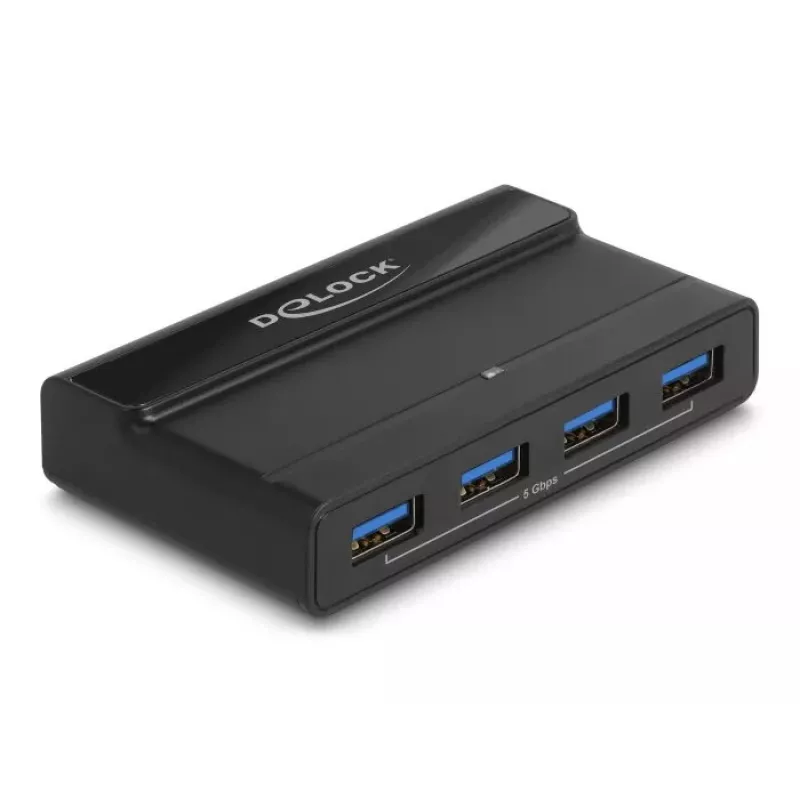

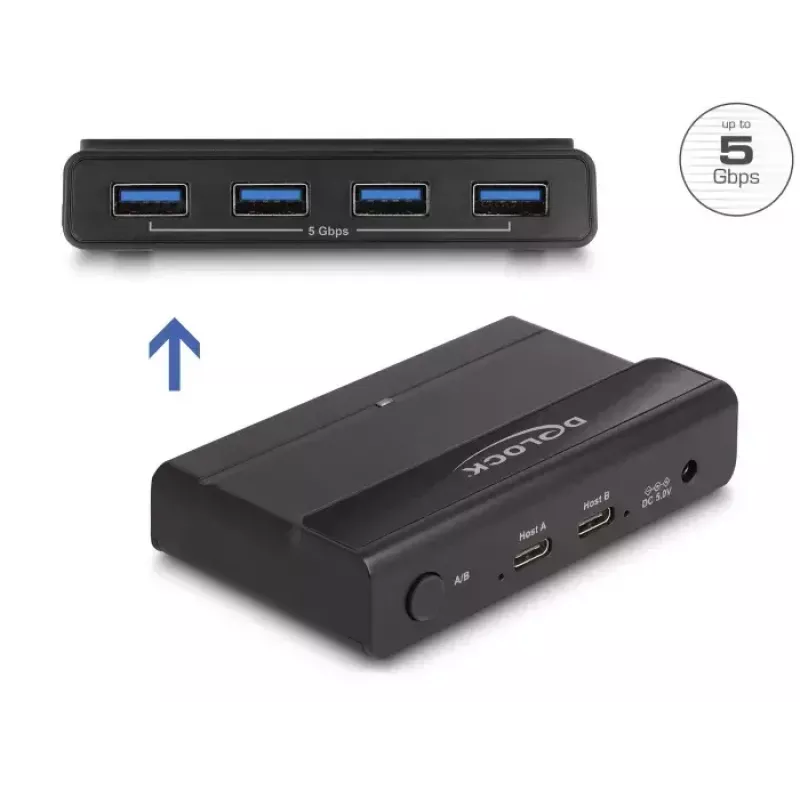

The DeLOCK USB Switch lets you share up to four USB devices between two computers with a maximum data transfer rate of 5 Gbps. The compact black unit (54 mm x 92 mm x 19 mm) provides a button to select which host is connected to the attached devices and supports both USB‑C and USB‑A host ports via the included host cables. An optional power cable is supplied for cases when the host devices cannot provide sufficient power.

Advantages

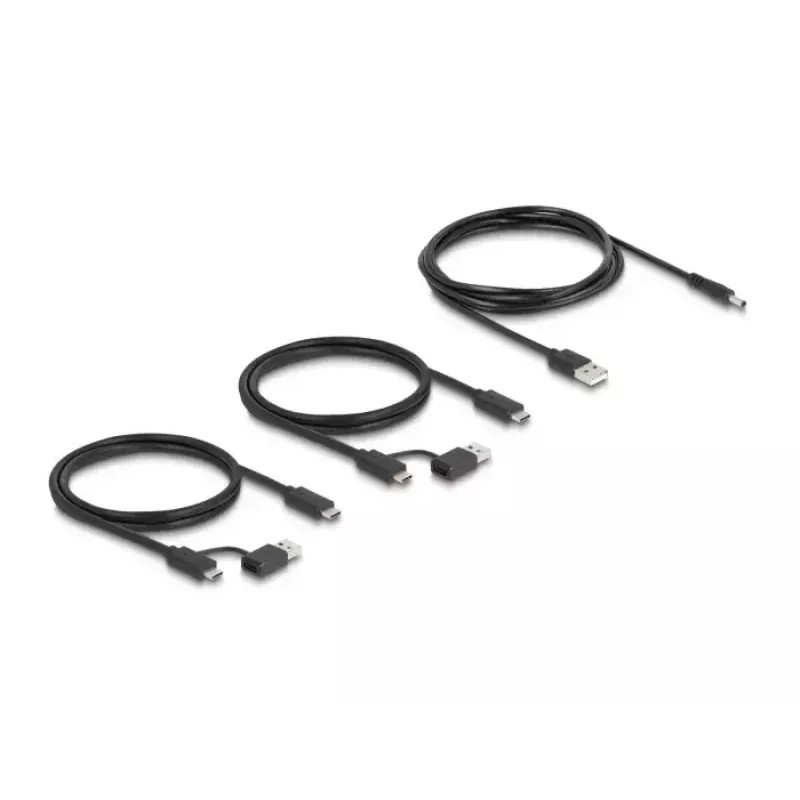

This USB switch supports up to 4 devices and 2 hosts at transfer speeds up to 5 Gbps, enabling quick switching between computers via a dedicated button. The package includes host connection cables with adapters for USB‑C and USB‑A, and an optional power cable for stable operation when host power is insufficient. Its compact dimensions and black finish make it easy to integrate into different workspaces.

Suitable for

Key specifications

How to use

Connect up to four USB devices to the switch using the device ports. Use the supplied cables to connect the two host computers to the switch; the host‑side adapter enables connection to either USB‑C or USB‑A ports as required. Press the front button on the switch to select which host has access to the connected USB devices. If connected devices require more power than the hosts supply, connect the included power cable to provide additional power.

Recommendations

For reliable operation when using multiple high‑power USB devices (for example external hard drives or multifunction printers), use the included power cable. Ensure drivers for connected devices are installed on both hosts to allow seamless switching.
