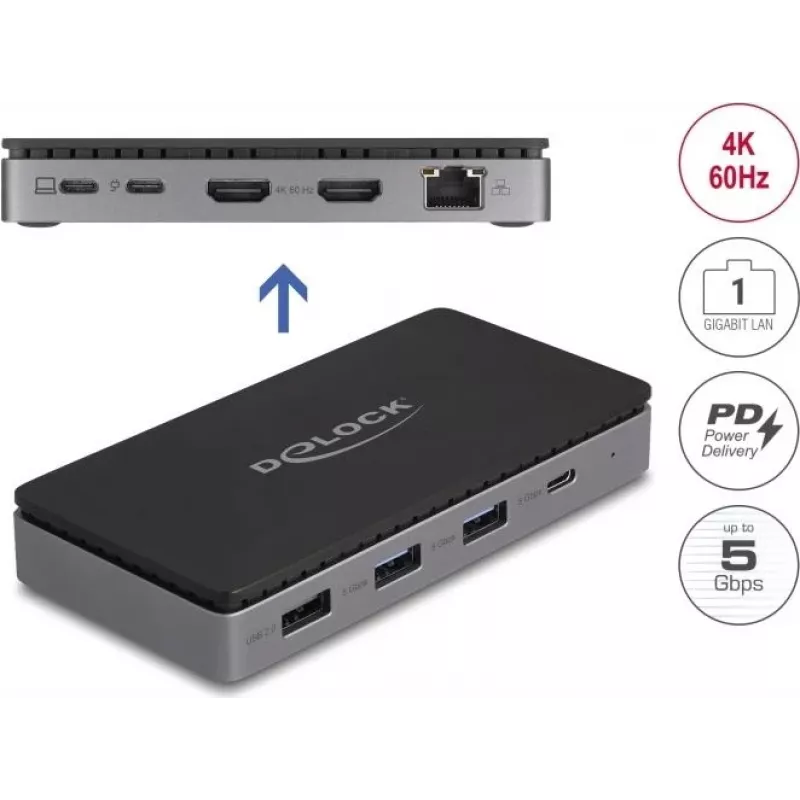

DeLOCK USB Type-C dockingstation 4K dual HDMI MST USB Gigabit LAN PD 85W

The DeLOCK USB Type-C Docking Station connects to a computer via a USB-C™ port with DisplayPort Alt Mode, Thunderbolt™ 3 or Thunderbolt™ 4 and provides multiple interfaces to expand a laptop or desktop. It supports two 4K-capable HDMI outputs, several USB ports for peripherals and an integrated Gigabit LAN port. The docking station also features a USB-C Power Delivery port that can supply up to 85 W to charge the connected host device while in use.

Advantages

This docking station functions as a Multi-Stream Transport (MST) hub allowing extended desktop configurations and independent control of connected monitors on compatible systems. It offers dual HDMI outputs for driving two external displays simultaneously, a Gigabit RJ45 port for stable wired network access and multiple USB Type-A and USB-C ports for external devices. USB Power Delivery (PD 3.0) support up to 85 W enables charging of the host device during operation.

Suitable for

Key specifications

How to use

Connect the docking station to a host computer using a USB-C port that supports DisplayPort Alt Mode or to a Thunderbolt 3/4 port. Attach external monitors to the HDMI outputs and configure display settings in the host operating system; on Windows, MST enables individual control of each monitor and the option to span a single large desktop. Plug USB devices into the Type-A or Type-C ports and connect an Ethernet cable to the RJ45 port for wired network access. To charge the host device, connect its power adapter to the docking station USB-C PD port.

Recommendations

Use a high-quality USB-C cable that supports DP Alt Mode and the necessary bandwidth for dual 4K displays. For optimal network performance, use a Cat5e or better Ethernet cable. Check your host device specifications to confirm support for MST and USB Power Delivery if you plan to use multiple displays and charging simultaneously.
