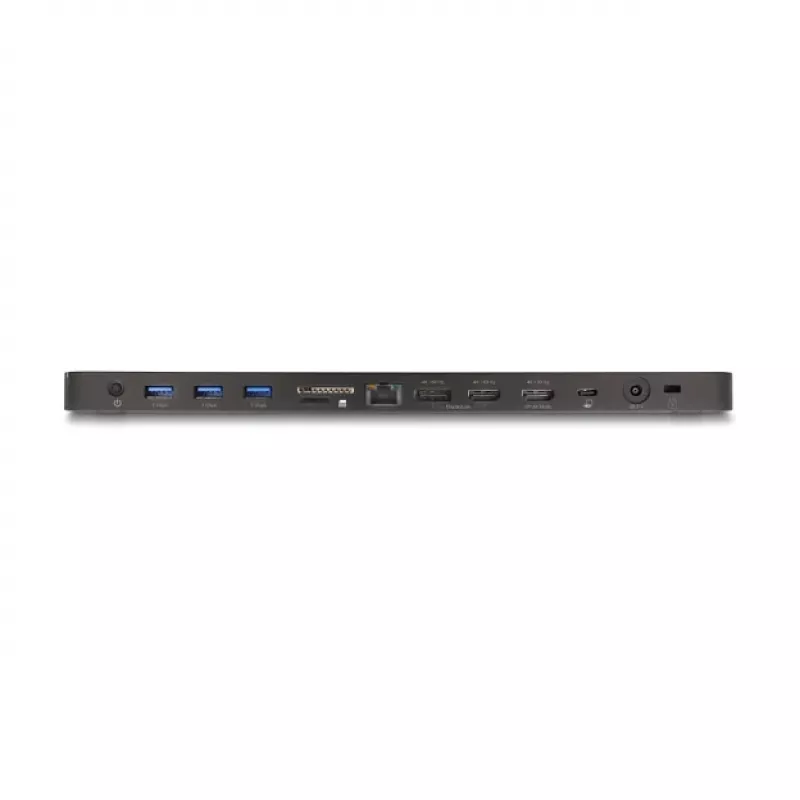

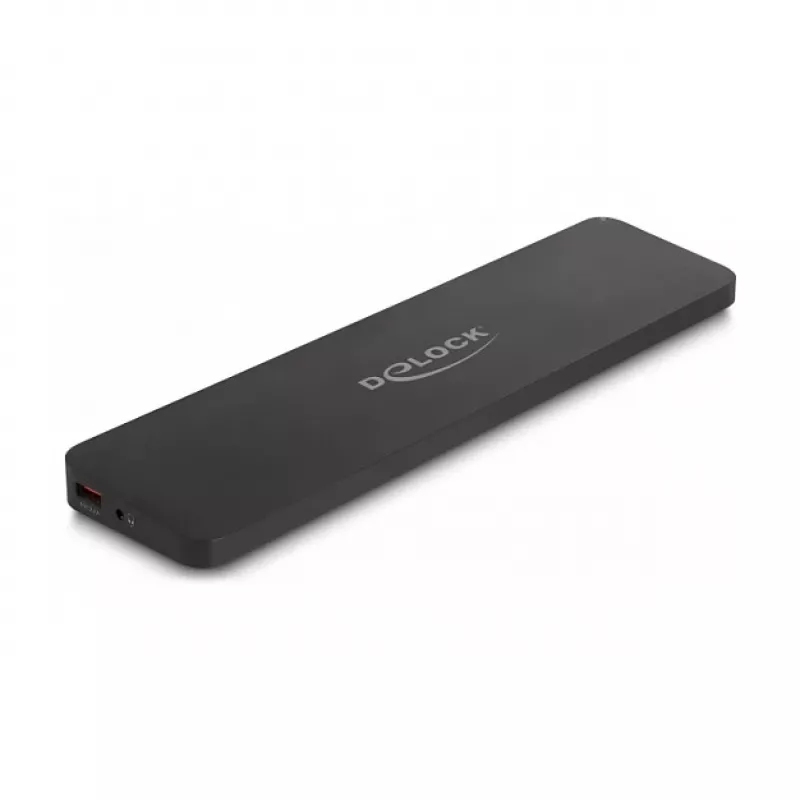

DeLOCK USB Type-C Triple Display Docking Station 4K USB 5 Gbps LAN SD Audio PD 80 W

The Delock USB Type-C Triple Display Docking Station connects to a host with USB-C™ DP Alt Mode, Thunderbolt™ 3 or Thunderbolt™ 4 and provides multiple interfaces including three video outputs, five USB 5 Gbps ports, an additional USB port for charging, Gigabit Ethernet, SD and microSD card reader, audio connectors and a Kensington lock slot. It supports triple-monitor setups and offers up to 80 W Power Delivery via the included power supply.

Advantages

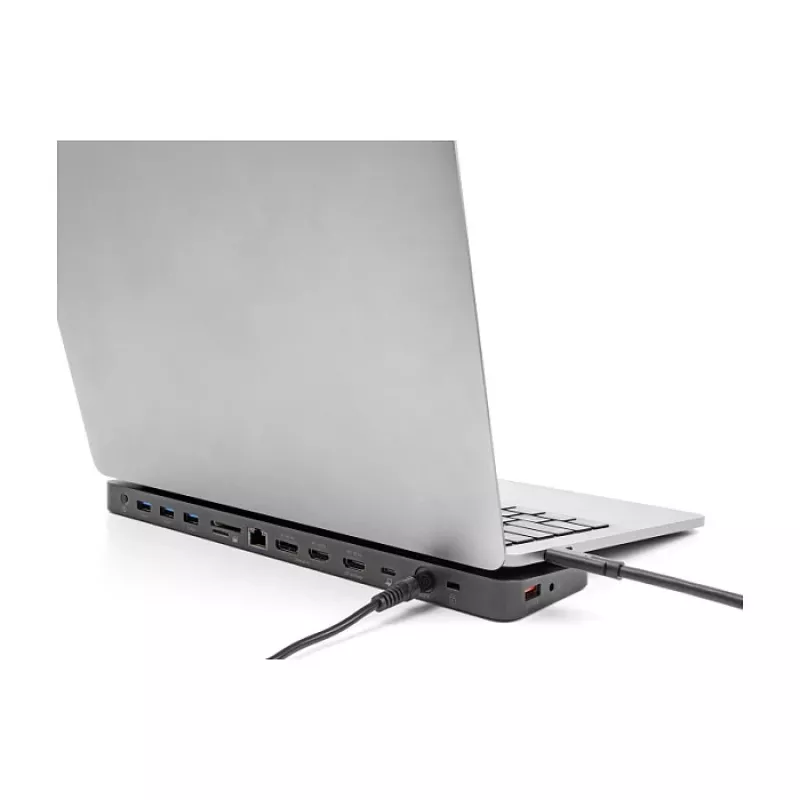

The docking station supports three displays simultaneously — one via USB-C DP Alt Mode and two via DisplayLink® — with guaranteed 4K UHD capability on all ports. DisplayLink® enables mirrored and extended screen configurations on Windows and macOS. The unit includes fast USB 5 Gbps ports for peripherals, a separate charging USB port, a Gigabit LAN port and an SD/microSD card reader. Its slim, elongated design allows placement under a laptop to improve tilt and cooling, and a Kensington slot provides theft protection.

Suitable for

Key specifications

How to use

Connect the docking station to a compatible host using a USB-C/Thunderbolt cable supporting DP Alt Mode or Thunderbolt 3/4. Attach external monitors to the three video outputs — when all three are used, one display runs via DP Alt Mode and two via DisplayLink®; on systems without DP Alt Mode support the docking station can drive up to two monitors. Plug peripherals into the USB 5 Gbps ports and insert SD/microSD cards into the reader. Connect the power supply to enable USB Power Delivery and to charge the host device with up to 80 W. Use the Kensington slot to secure the unit if needed.

Recommendations

For optimal display performance on three monitors, install the latest DisplayLink® drivers on Windows or macOS and ensure the host’s USB-C/Thunderbolt port supports the required modes. Use the supplied power adapter to guarantee full 80 W charging and reliable operation of connected devices.
