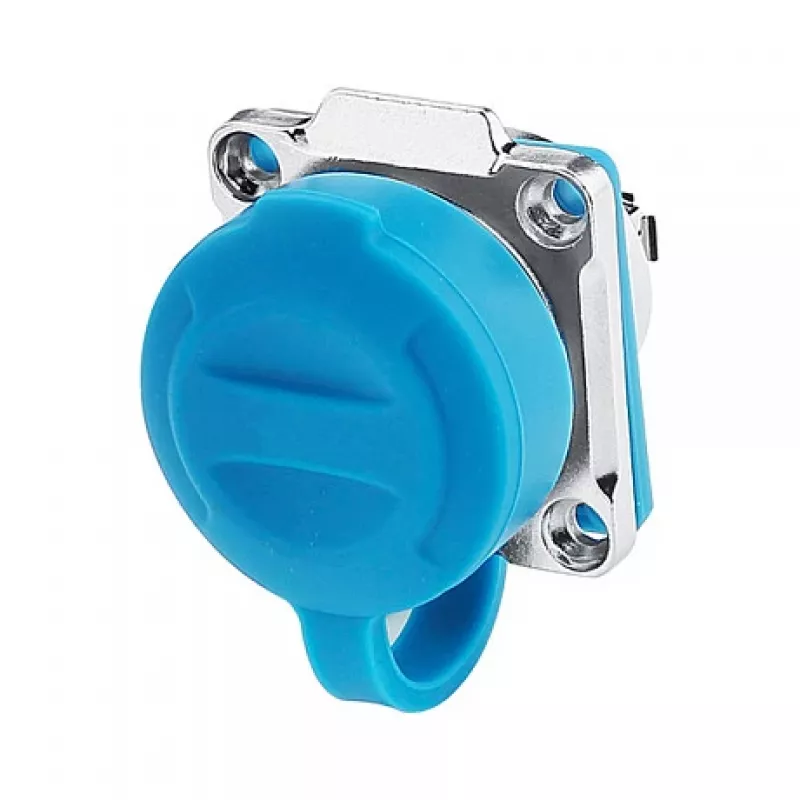

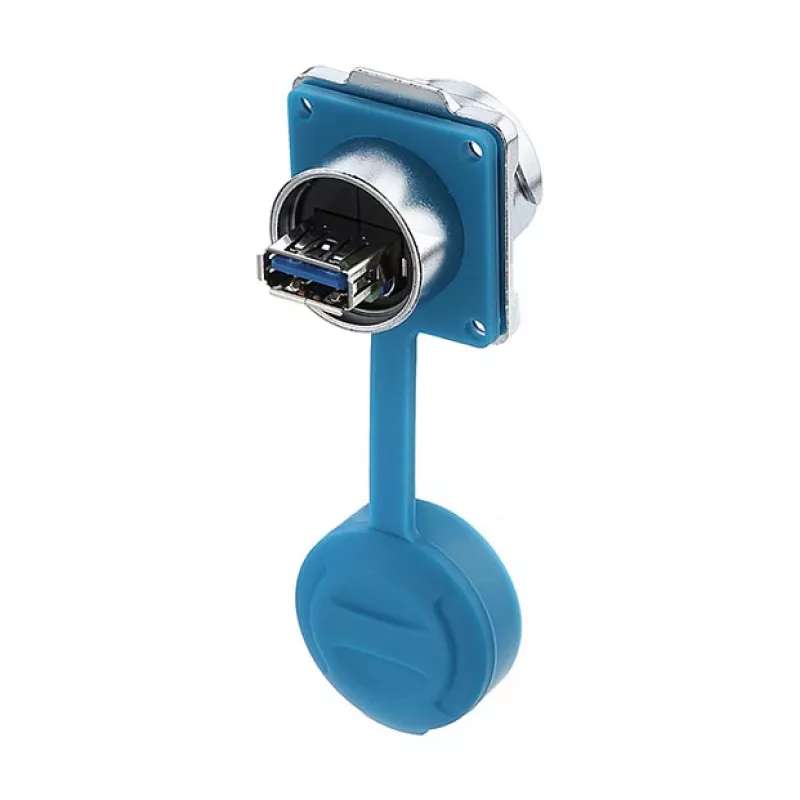

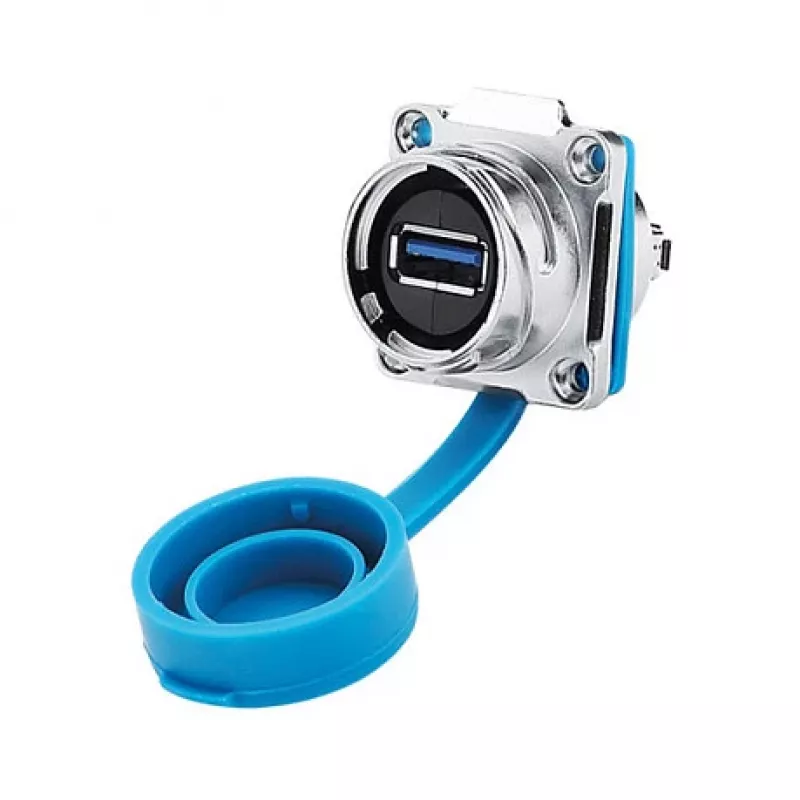

Good Connections Industrial Coupling S3 - USB 3.0 A-A

The Good Connections Industrial Coupling S3 is a robust USB 3.0 female-to-female coupler designed for panel-mount applications in industrial environments. It enables secure and reliable extension or connection of USB cables through a panel, providing a professional solution for control cabinets, machinery, and workstations.

Advantages

This coupling offers high-speed data transfer up to 5 Gbps, ensuring efficient communication for industrial equipment. Its metal housing provides durability and shielding against electromagnetic interference, while the gold-plated contacts guarantee long-lasting connectivity. The D-type panel mount design allows for easy installation with standard cutouts.

Suitable for

• Industrial automation and control systems
• Panel-mounted USB connections in machinery
• Professional audio/video and data applications
• Extending USB 3.0 connections through walls or enclosures

Key specifications

• USB Standard: USB 3.0 (USB 3.2 Gen 1)
• Data Transfer Rate: 5 Gbps
• Connector A: USB Type-A Female
• Connector B: USB Type-A Female
• Mounting Type: Panel Mount (D-type S3)
• Housing Material: Metal
• Housing Color: Silver
• Gender: Female-Female
• Shielding: Yes
• Contact Plating: Gold-plated
• Certifications: CE, RoHS

Recommendations

For optimal performance, use with high-quality USB 3.0 cables. Ensure the panel cutout matches the D-type dimensions (approx. 24 x 19 mm) and secure with the provided screw holes.
