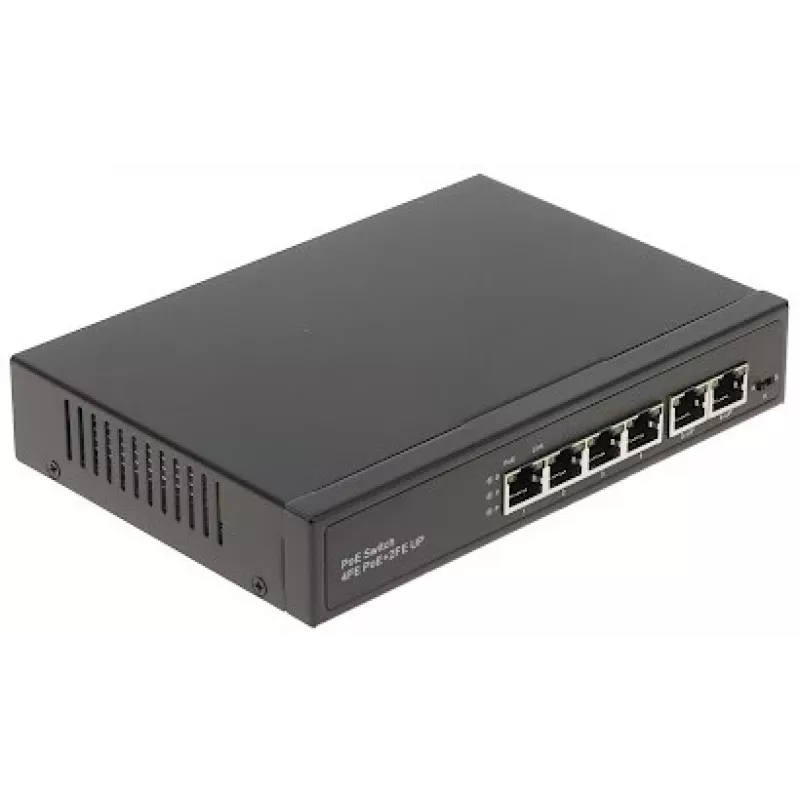

DELTA ENERGY SYSTEMS 4-poorts PoE-switch GTX-A1-06-42

This 4-port PoE switch delivers reliable power and data over a single Ethernet cable, with a total PoE budget of 65W to support up to four PoE devices simultaneously. Its compact desktop design and fanless operation make it ideal for small offices, retail, and surveillance setups where quiet, efficient networking is essential.

Advantages

The GTX-A1-06-42 simplifies deployment of IP cameras, VoIP phones, and wireless access points by eliminating the need for separate power supplies. Extend Mode stretches PoE and data transmission up to 250 meters, while VLAN isolation enhances security and performance by separating ports. With IEEE 802.3af/at compliance, it powers a wide range of PoE devices up to 30W per port.

Suitable for

• Small business networks requiring basic PoE connectivity
• IP surveillance systems with up to four cameras
• VoIP phone deployments in offices
• Wireless access point installations
• Retail point-of-sale environments

Key specifications

• 4 PoE ports (10/100 Mbps) + 2 uplink ports (10/100 Mbps)
• PoE standard: IEEE 802.3af/at, max 30W per port, total budget 65W
• Switching capacity: 1.2 Gbps; packet forwarding rate: 0.89 Mpps
• MAC address table: 2K entries
• Extend Mode up to 250m; VLAN isolation
• Fanless design, desktop form factor
• External AC/DC adapter (DC 52V/1.25A)
• Operating temperature: 0°C to 40°C
• Certifications: CE, FCC, RoHS

Recommendations

For a cost-effective, silent PoE solution in small-scale networks, the GTX-A1-06-42 offers the essential features without complexity. Its extended reach and isolation options make it a practical choice for installers and IT administrators seeking dependable performance.
