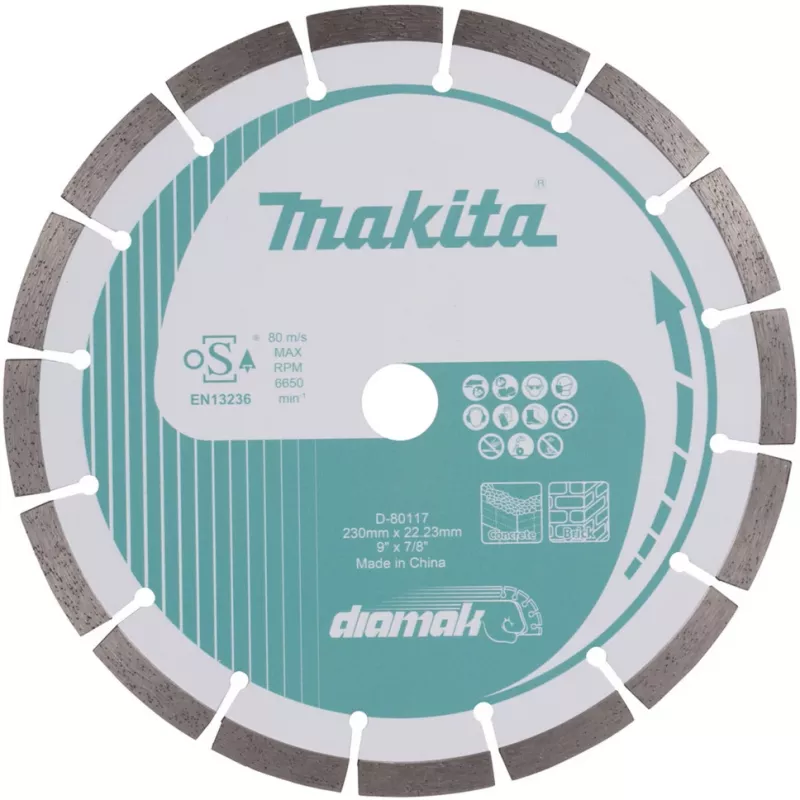

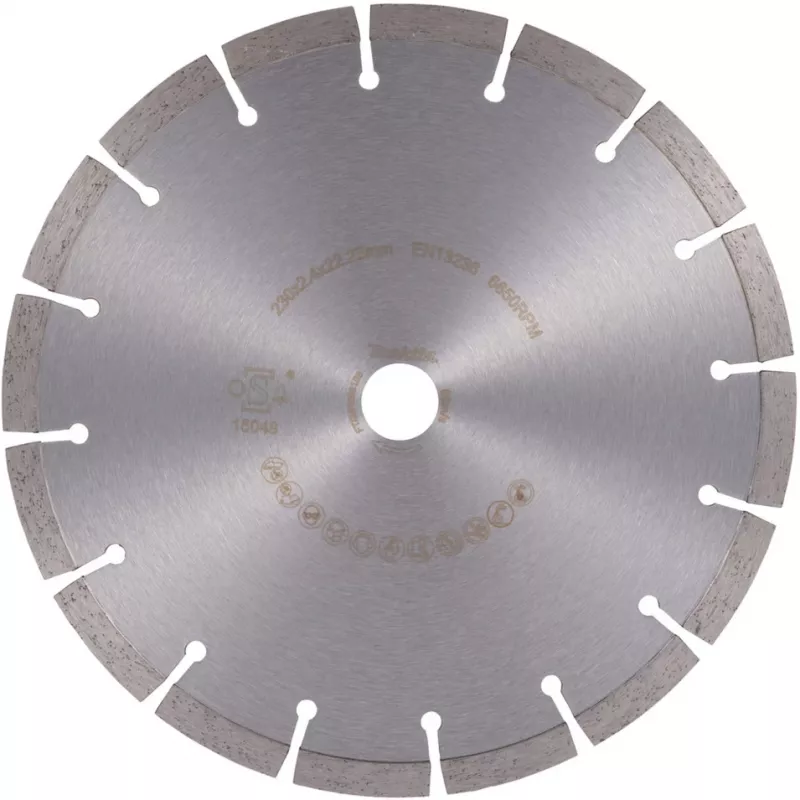

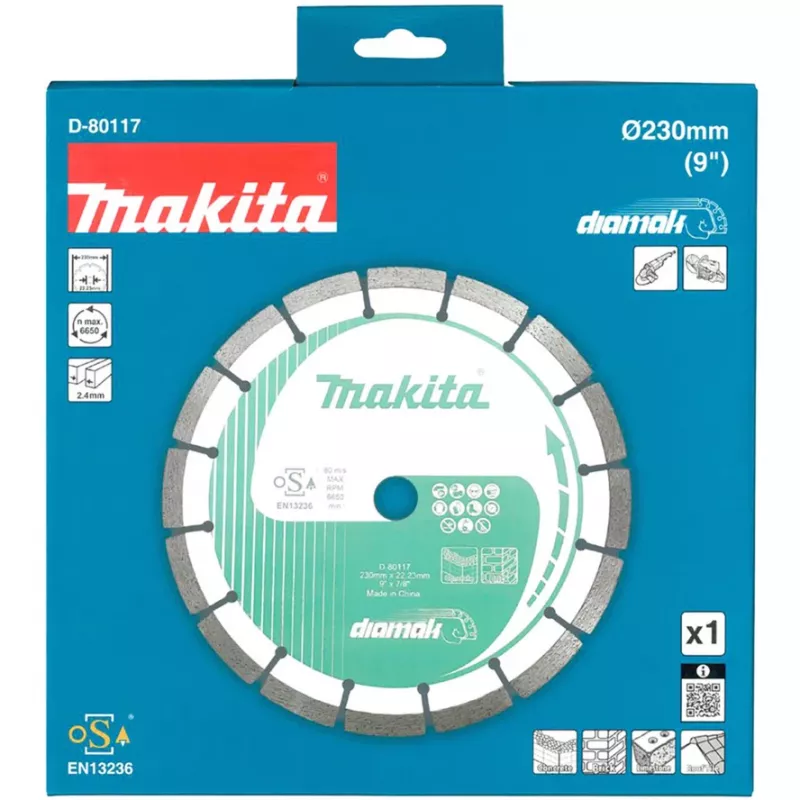

Diamantslijpschijf Makita D-80117 om te snijden, 230x22,23 mm

Diamond blade Makita D-80117 for cutting, 230x22.23 mm is a segmented diamond cutting disc designed for precise work on hard materials. Intended for use on angle grinders and cutting machines with a 22.23 mm bore, this blade delivers steady cutting performance for tile, natural stone and concrete. Construction and renovation professionals as well as DIY users can rely on consistent cut quality and durability when working on both straight and curved cuts.

Advantages

The blade is engineered with a diamond-segmented rim to provide fast material removal while maintaining a controlled cutting line. Optimized segment geometry and bonding ensure a balance between cutting speed and segment life, reducing the need for frequent replacements. Its 230 mm diameter and 22.23 mm arbor allow compatibility with a wide range of common angle grinders and portable cutting tools, offering stable mounting and reduced vibration during operation.

Suitable for

• Cutting ceramic and porcelain tiles
• Trimming natural stone such as granite and marble
• Cutting concrete, paving stones and masonry
• On-site construction and renovation tasks
• Precision DIY projects requiring smooth edges

Key specifications

• Diameter: 230 mm
• Bore (arbor) size: 22.23 mm
• Rim type: segmented diamond rim for efficient cutting and cooling
• Recommended tool: compatible angle grinders and cutting machines accepting 22.23 mm bore
• Typical applications: tile, stone, concrete and masonry

How to use

Mount the blade on a compatible grinder or cutting machine with the correct 22.23 mm arbor fit, ensuring the machine is unplugged or the battery is removed during installation. Tighten the flange and lock nut according to the tool manufacturer’s instructions so the blade is secure and runs true. Operate the tool at the manufacturer-specified maximum RPM for a 230 mm blade, apply steady, moderate pressure, and let the diamond segments perform the cutting—avoid forcing the blade through the material. For wet cutting, ensure the cooling water supply is set up per tool guidelines; for dry cutting, use intermittent passes to prevent overheating.

Recommendations

Use appropriate personal protective equipment including safety glasses, hearing protection and gloves. Allow the blade to reach full speed before contacting the workpiece, and maintain a straight, steady feed to extend blade life. Replace the blade if segments are significantly worn, cracked, or if cutting performance deteriorates. Follow the angle grinder or cutter manufacturer’s safety and maintenance instructions at all times.
