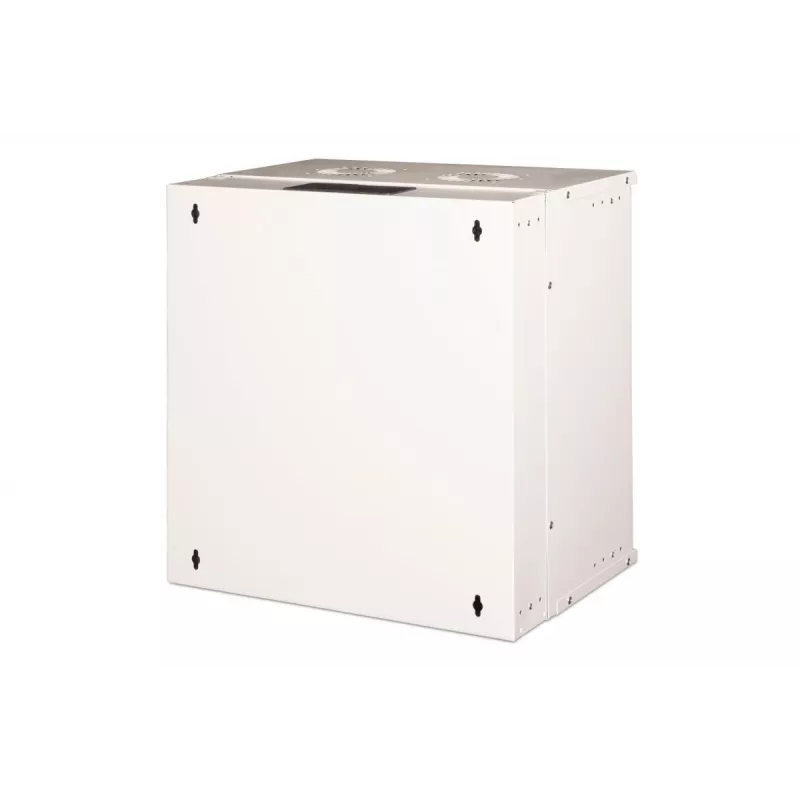

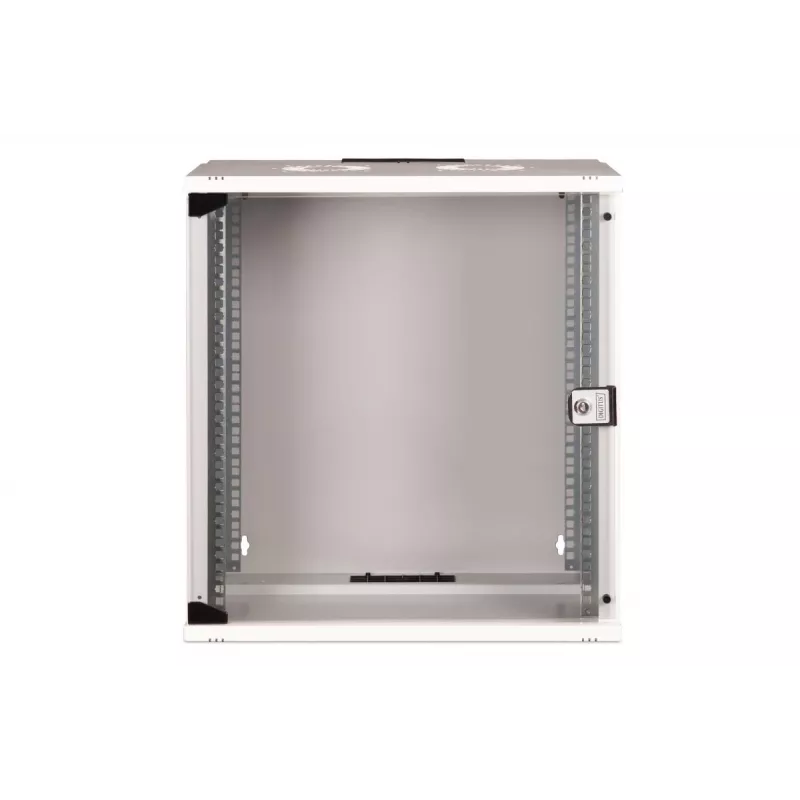

DIGITUS 19IN 12U wandmontagebehuizing - SOHO PRO 595 x 540 x 400 mm grijs

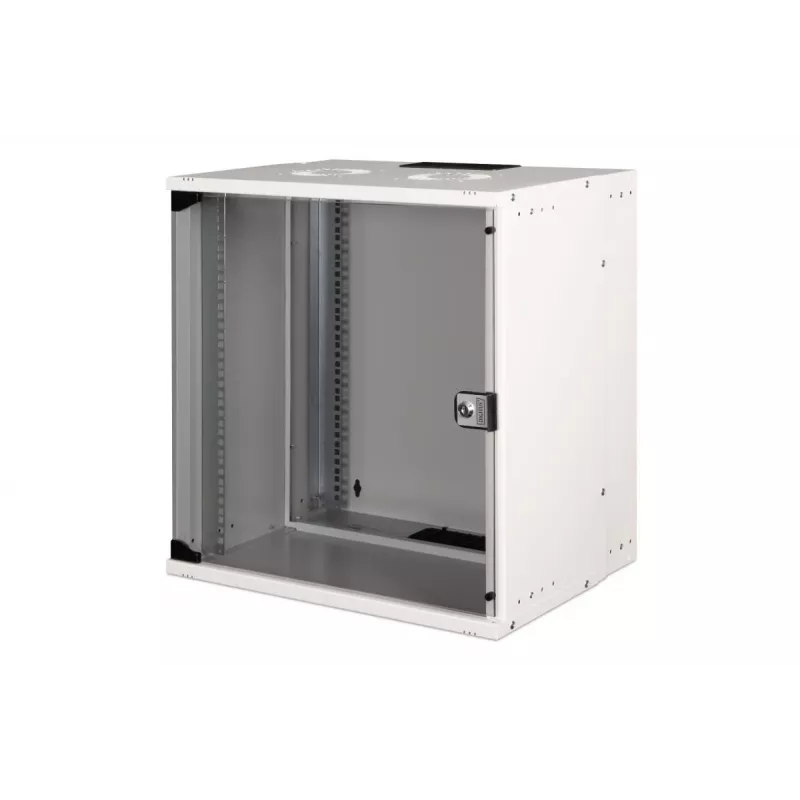

The DIGITUS® SOHO PRO wall-mounted enclosure is a compact 483 mm (19") cabinet designed for easy transport and simple installation. Supplied unassembled in an optimized flat pack, it is suitable for home, office or small sub-distribution applications where space is limited. The cabinet features a lockable safety glass door, depth-adjustable 483 mm (19") profile rails and protected cable entry points in the top and bottom.

Advantages

Delivered in a flat pack for simplified logistics and storage, the SOHO PRO cabinet is quick to assemble using only a few screws and the included step-by-step instructions. Its compact design and selectable heights allow flexible installation in areas with limited space. The lockable glass door and robust steel construction provide secure, visible equipment protection while depth-adjustable profile rails and protected openings enable flexible cable routing.

Key specifications

• Size: 483 mm (19") housing
• Available heights: 4U, 7U, 9U, 12U
• Delivery: unassembled in optimized flat pack

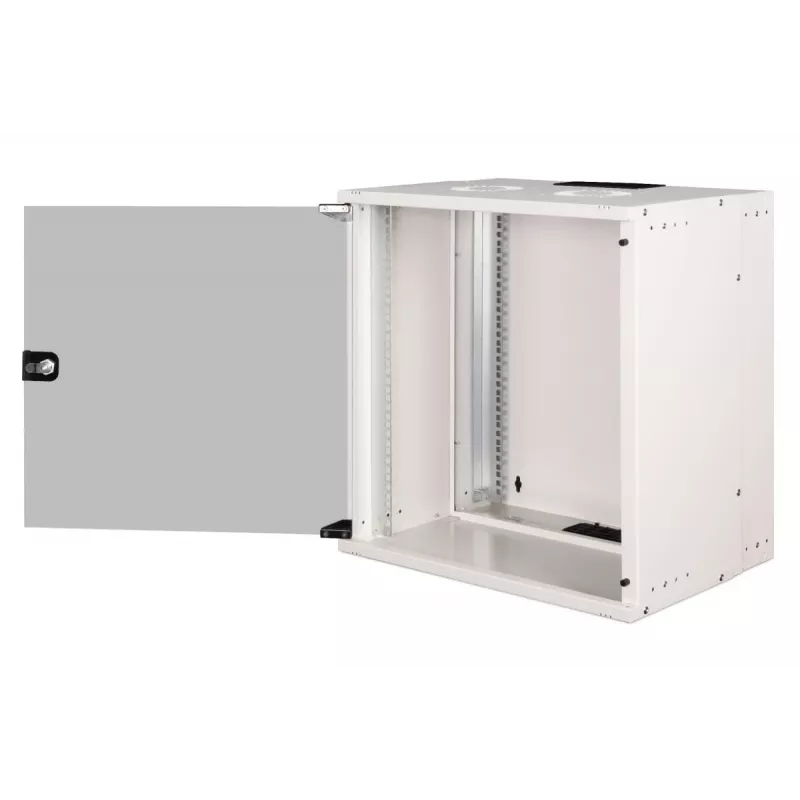

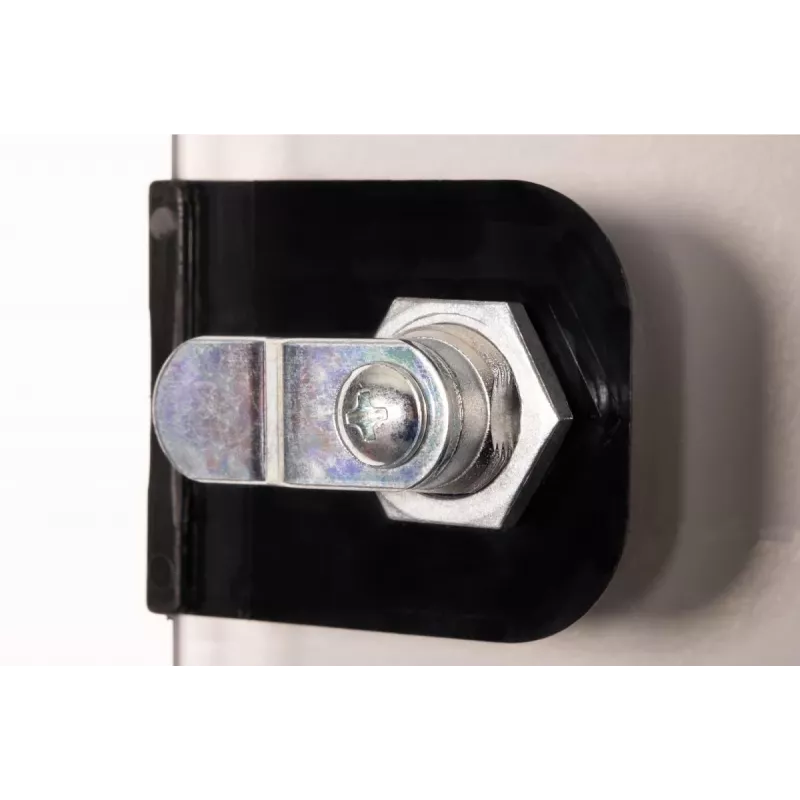

• Door: lockable safety glass, 200° opening angle

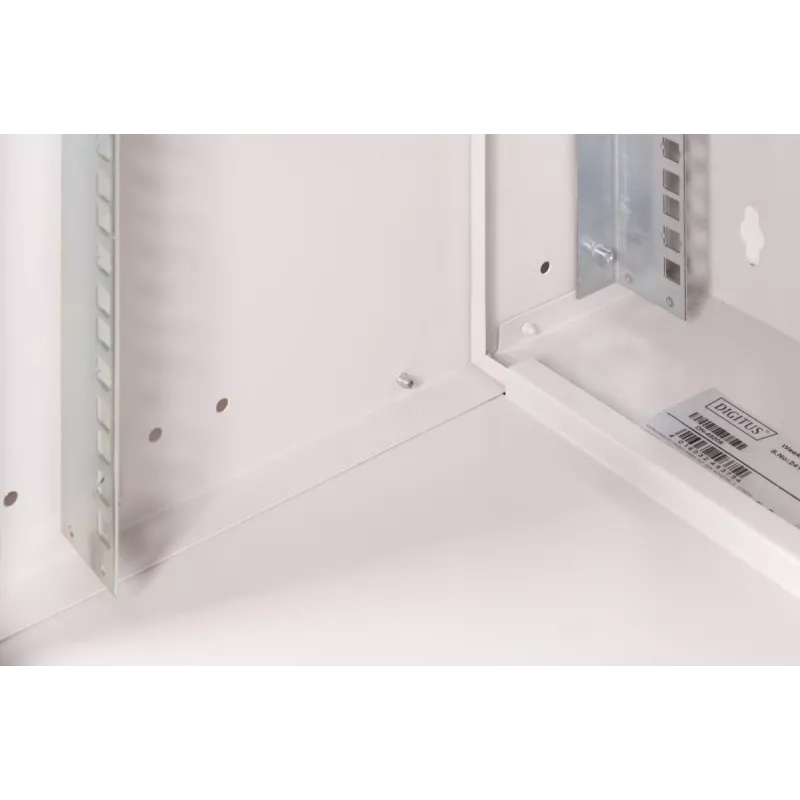

• Rails: galvanized 483 mm (19") profile rails, depth-adjustable, labelled with height units

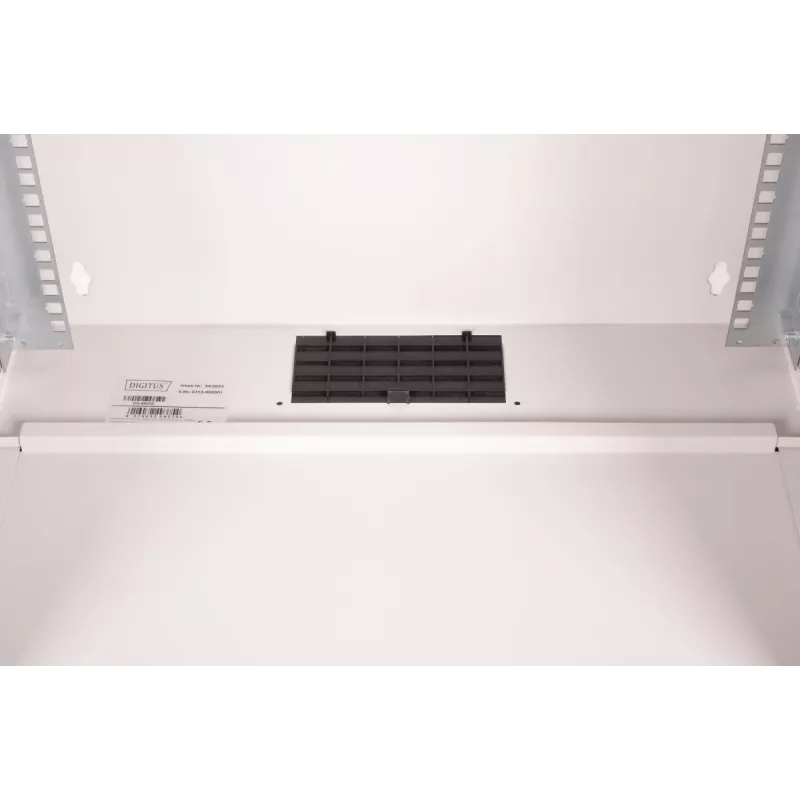

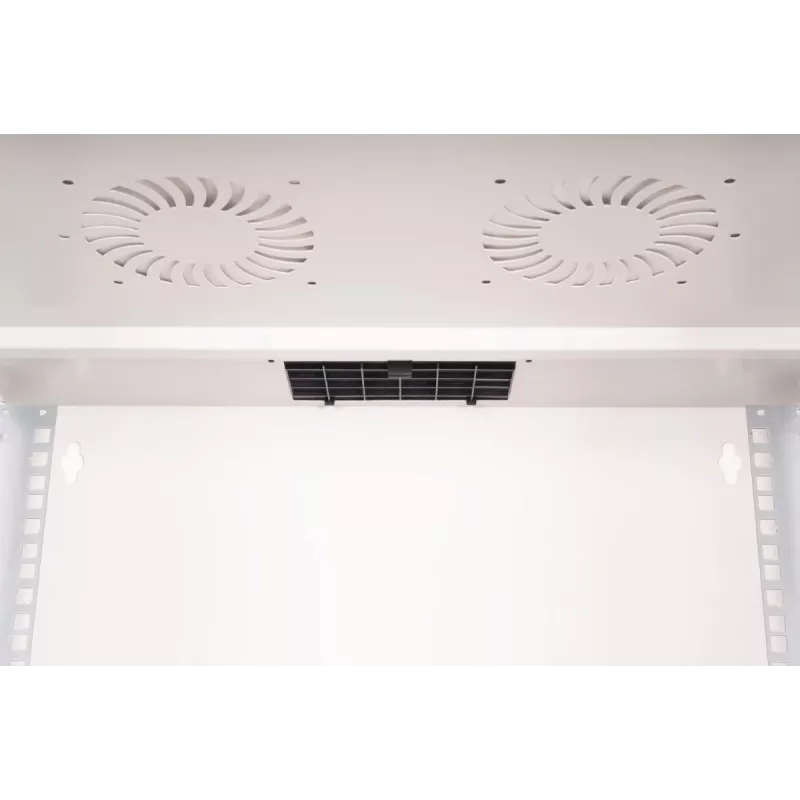

• Cable entry: protected openings in roof and floor (top and bottom)
• Load capacity: 60 kg
• Construction: sheet steel up to 1.5 mm thickness
• Finish: electrostatic powder coating in grey (RAL 7035) and black (RAL 9005)

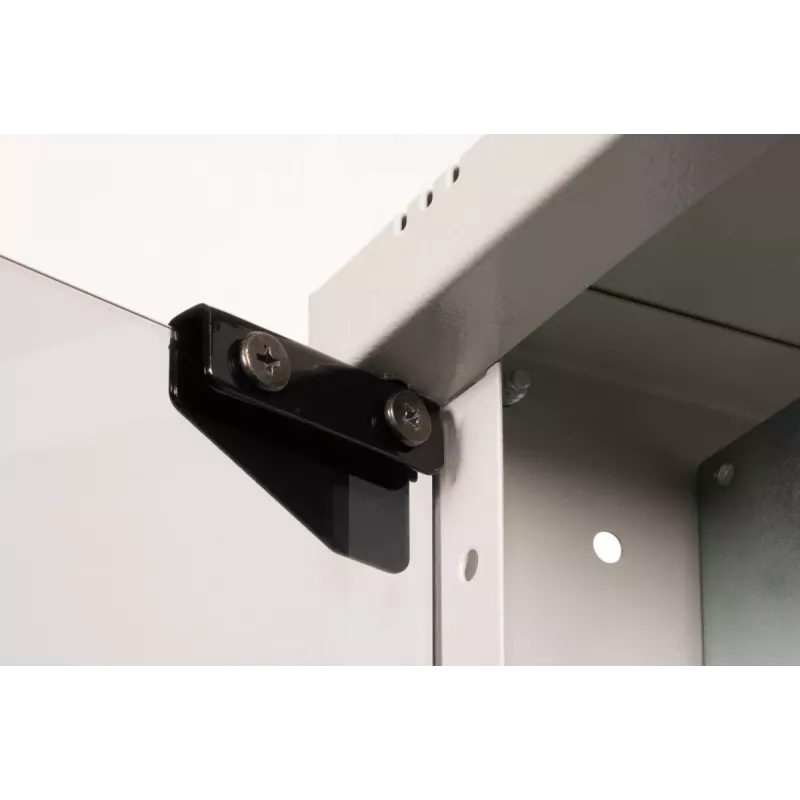

• Hinges: reversible/changeable door hinges

How to use

Unpack the flat pack and follow the enclosed step-by-step instructions to assemble the cabinet. Mount the cabinet to a suitable wall using appropriate fixings for the wall material and the cabinet load. Install equipment on the 483 mm (19") profile rails, adjusting the rail depth as required and using the labelled height units to position components. Route cables through the protected openings in the top or bottom and secure them as needed. Lock the safety glass door after installation to protect installed equipment.

Recommendations

Use appropriate wall fasteners rated for the cabinet weight plus installed equipment, and ensure ventilation and access for maintenance when positioning the enclosure. Choose the cabinet height (4U, 7U, 9U or 12U) based on the number of devices and available wall space.
