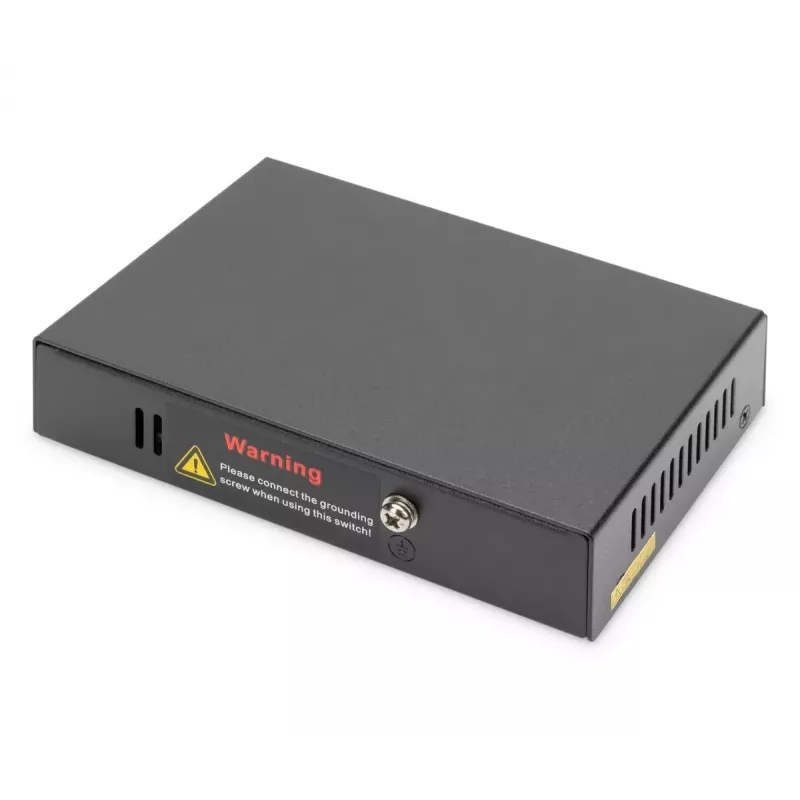

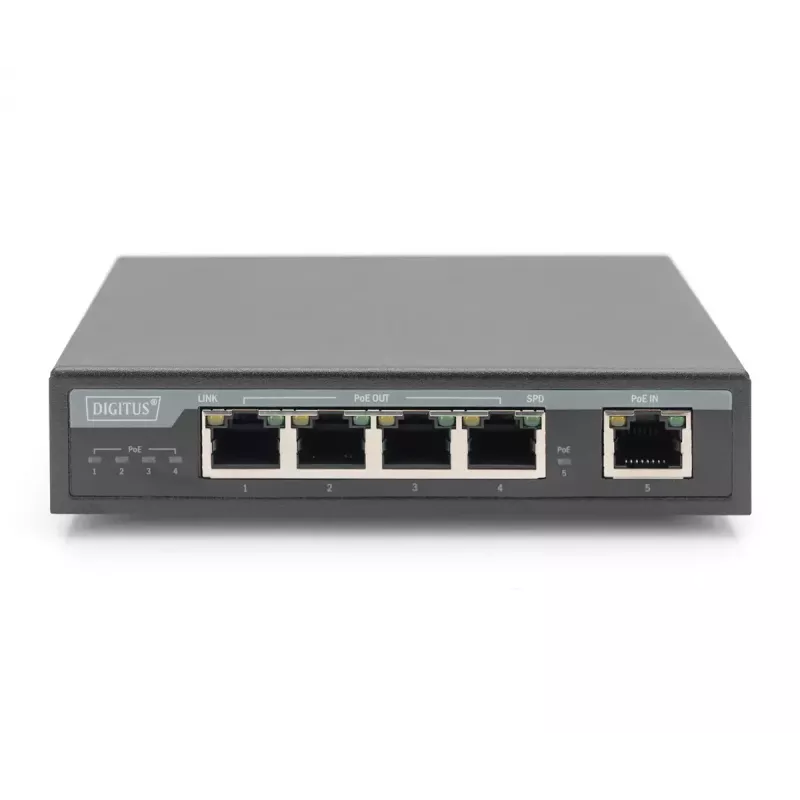

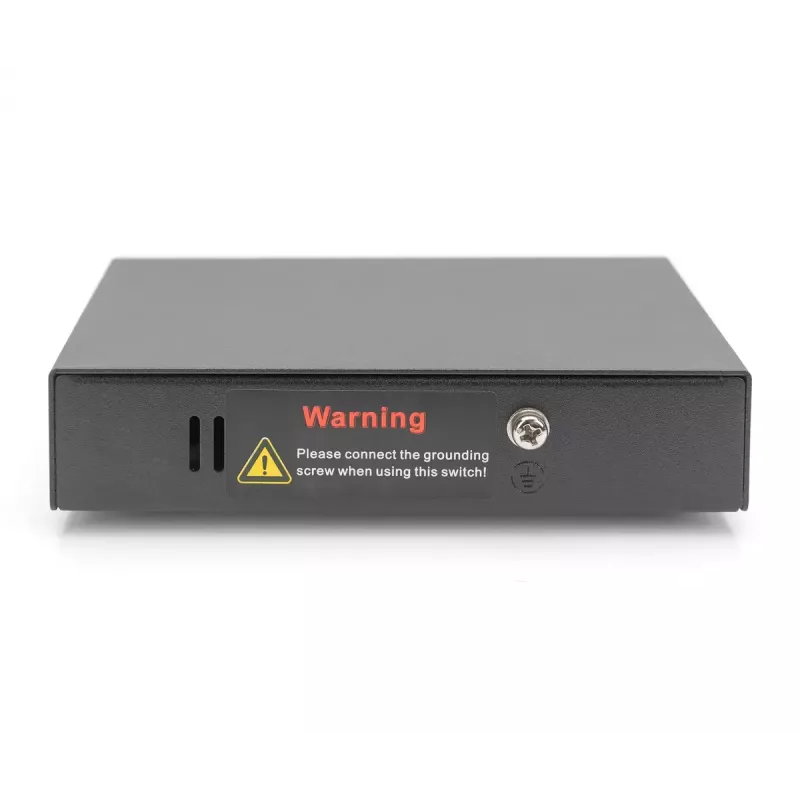

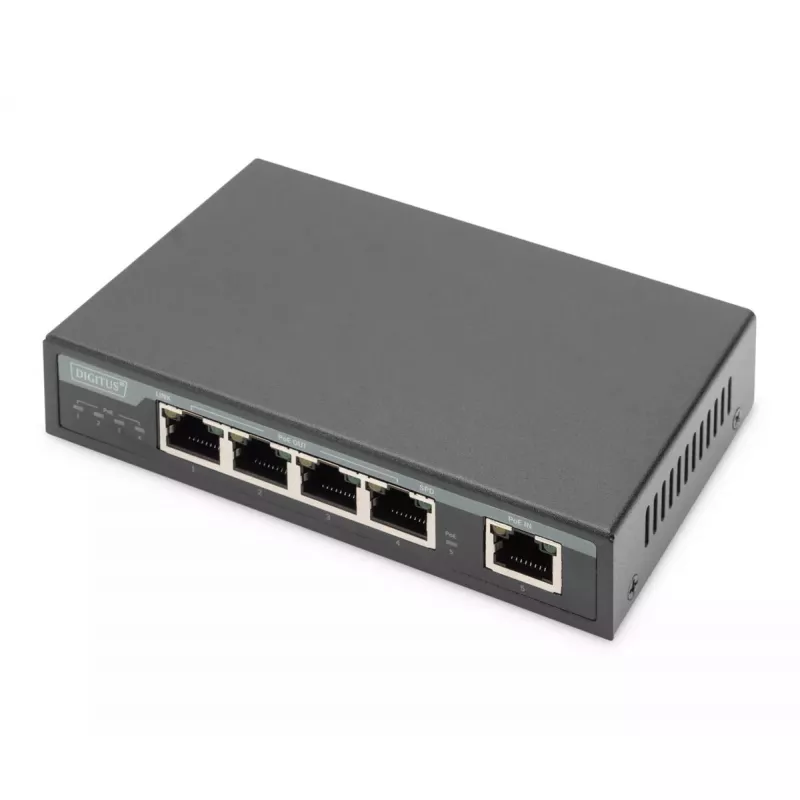

Digitus 4-poorts Gigabit 4PPoE extender 802.3at 60W zwart

The Digitus 4 Port Gigabit 4PPoE Extender (DN-95128-1) extends the range of a PoE network by up to 100 m while delivering data and power over a single Ethernet cable. It supports 802.3at (PoE+) and 4PPoE with up to 60 W output, features Gigabit Ethernet connectivity and LED indicators for Link and PoE, and is powered via PoE so no external power supply is required.

Advantages

This compact extender provides full Gigabit bandwidth over the entire extended distance and supports devices with higher power demands thanks to 4PPoE and PoE+ compatibility. Installation is simple with Plug and Play operation and automatic detection of PoE-enabled devices. The unit requires no separate power source and is suitable for locations without nearby power outlets.

Suitable for

• Extending PoE connections for access points
• Connecting PoS terminals and kiosks
• Powering IP phones and video telephones
• Extending networked cameras or other PoE-powered devices

Key specifications

• Model: DN-95128-1
• Standard: 802.3at (PoE+), 4PPoE
• Maximum PoE output: 60 W
• PoE voltage: 57 V
• Ethernet ports: 5 (RJ-45), Gigabit
• Maximum extension length: up to 100 m
• Product colour: Black

How to use

Connect the extender to an upstream PoE or 4PPoE injector/switch using a standard Cat5e/6 Ethernet cable. Plug the downstream PoE device into one of the extender's Gigabit RJ-45 ports. The extender receives power from the upstream PoE source and will automatically detect PoE-capable devices; LEDs indicate Link and PoE status. No additional configuration or external power connection is required.

Recommendations

Use quality Cat5e or Cat6 stranded or solid cabling for runs up to 100 m and ensure the upstream PoE source can supply sufficient power for connected devices. For high-power devices, verify compatibility with 4PPoE and the 60 W output before deployment.
