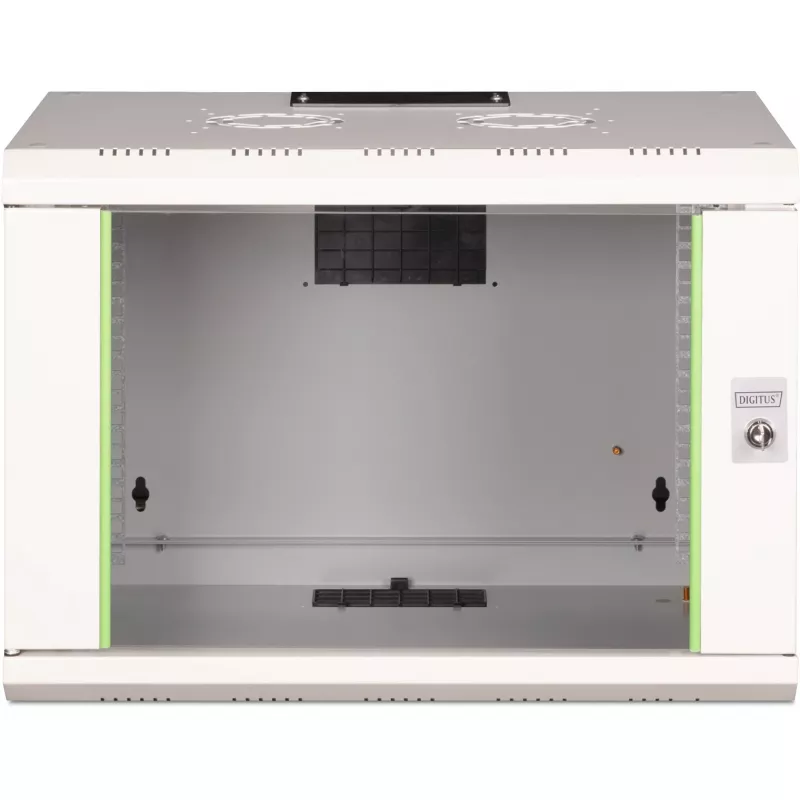

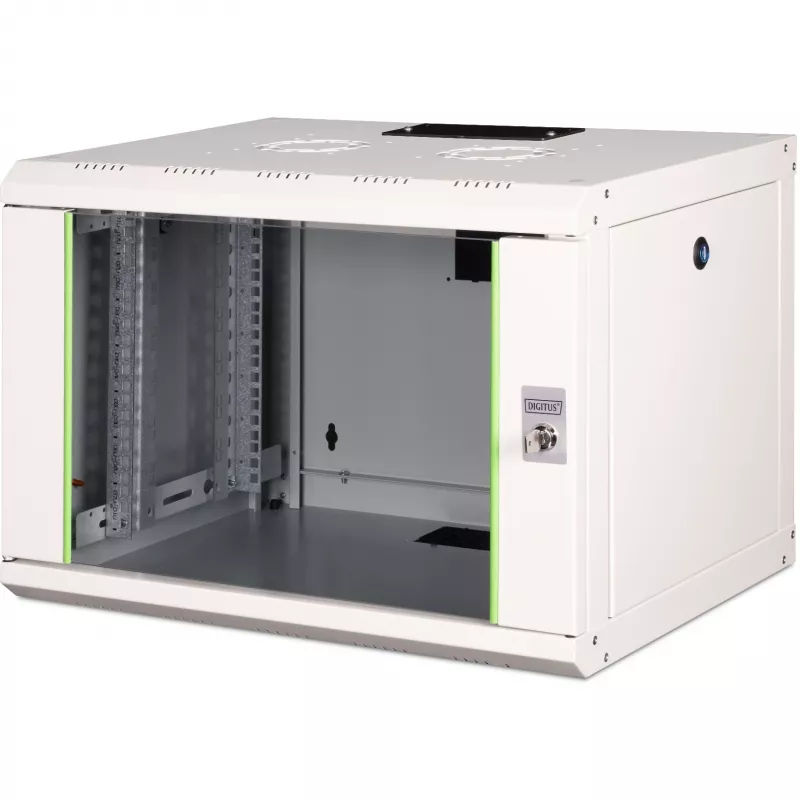

DIGITUS® 7HE wandbehuizing - grijs, RAL 7035 - 48,3 cm (19) (DN-19 07-U)

Network installations in small offices, retail spaces, or industrial environments often lack a secure, organized enclosure for active components. This DIGITUS wall-mount cabinet solves that by providing a lockable, 19-inch rack space that keeps equipment protected and accessible, while freeing up valuable floor area.

Who is it for

IT administrators and installers who need a compact, wall-mounted solution for patch panels, switches, or small servers. Ideal for branch offices, classrooms, and shops where floor space is limited but equipment security is essential.

Main features

• 7U rack capacity with 19-inch mounting width, compatible with standard rack equipment.
• Robust steel construction with electrostatic powder coating in grey (RAL 7035).

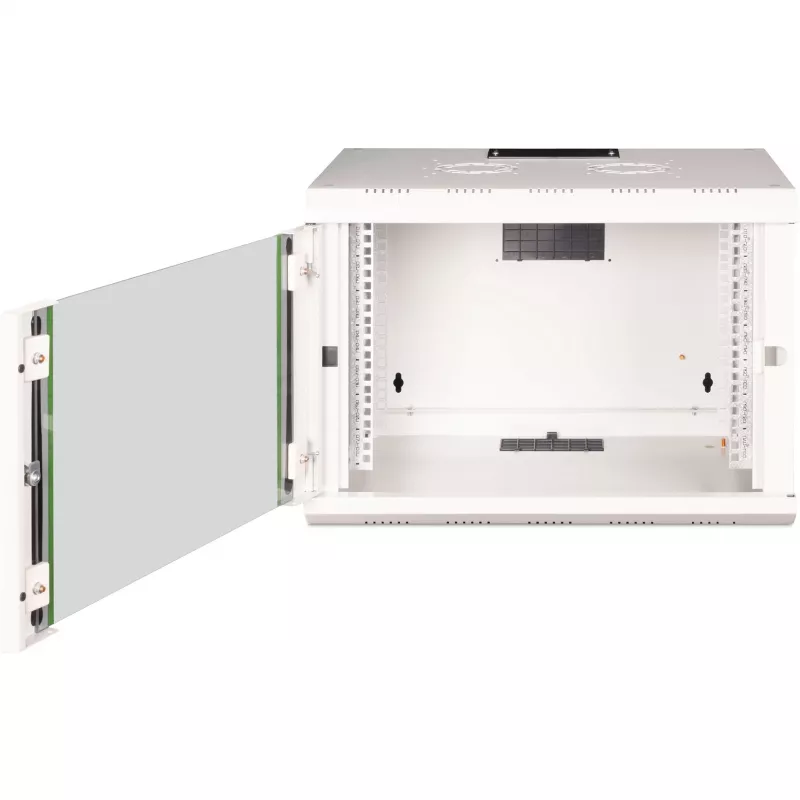

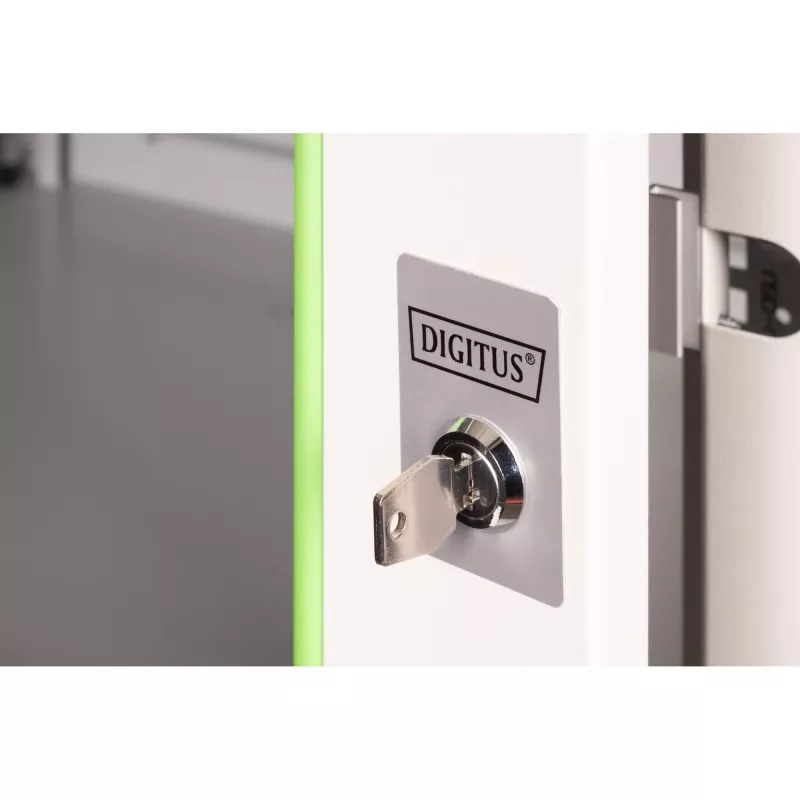

• Lockable front door with safety glass, plus removable and lockable side panels for easy access.

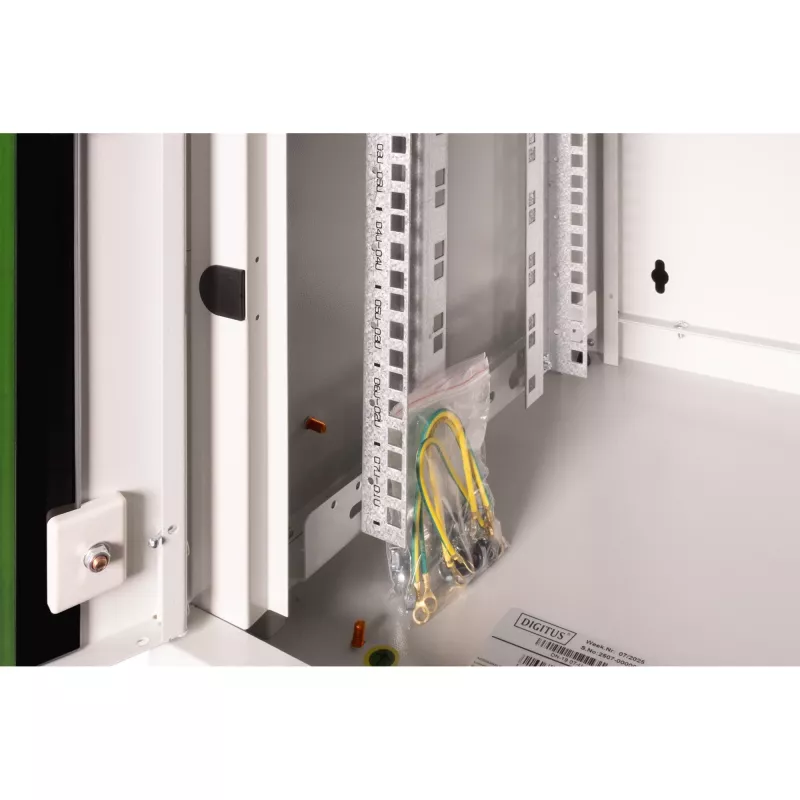

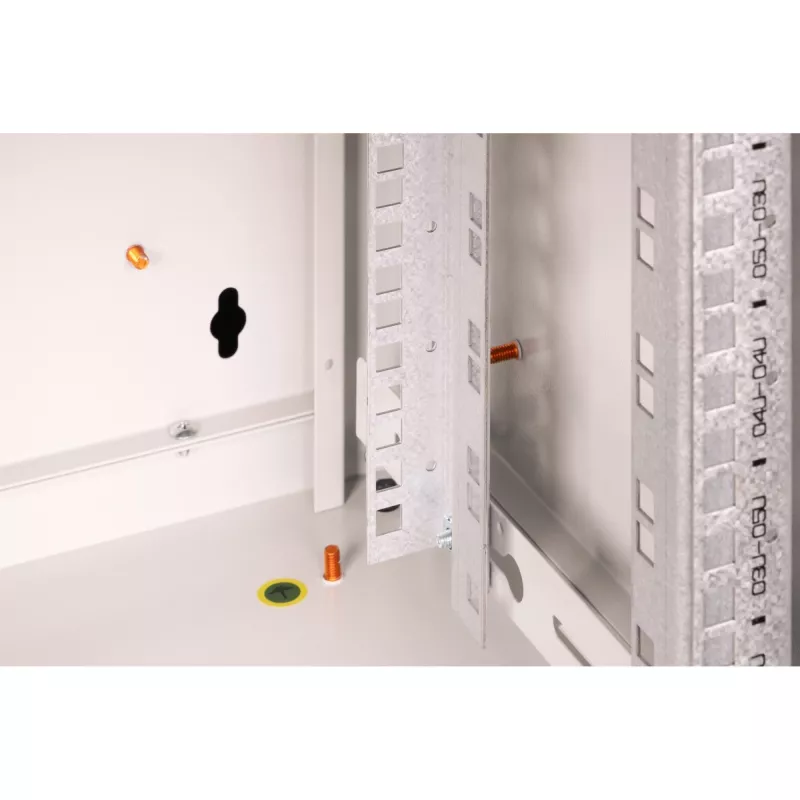

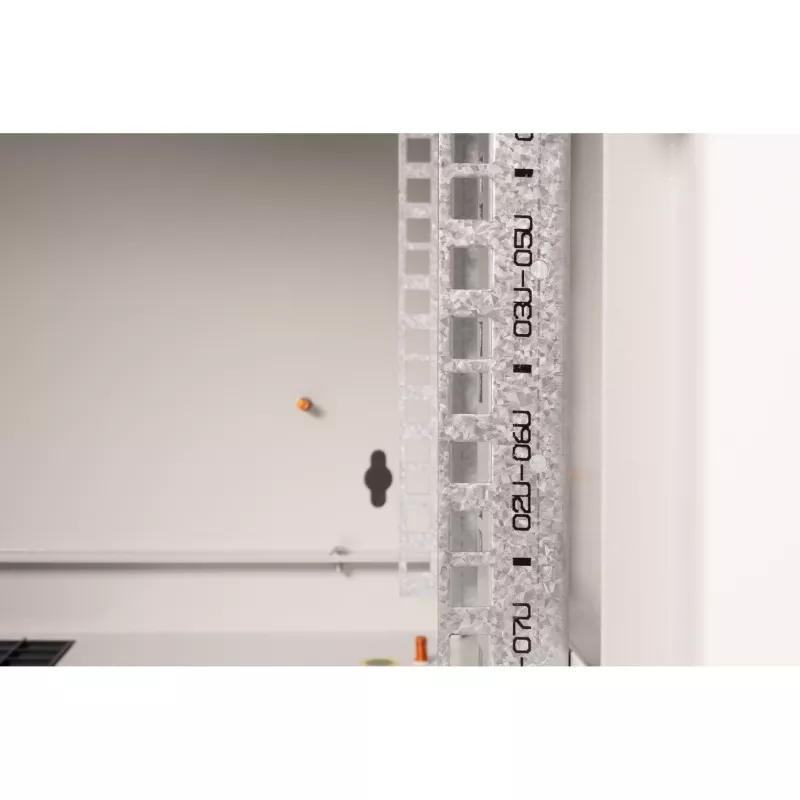

• Depth-adjustable 19" profile rails, marked with rack units on both sides for precise installation.
• Top cable entry with sliding cover and foam seal; rear and bottom cable entries with plastic covers.
• Prepared for optional fan module (passive ventilation as standard).

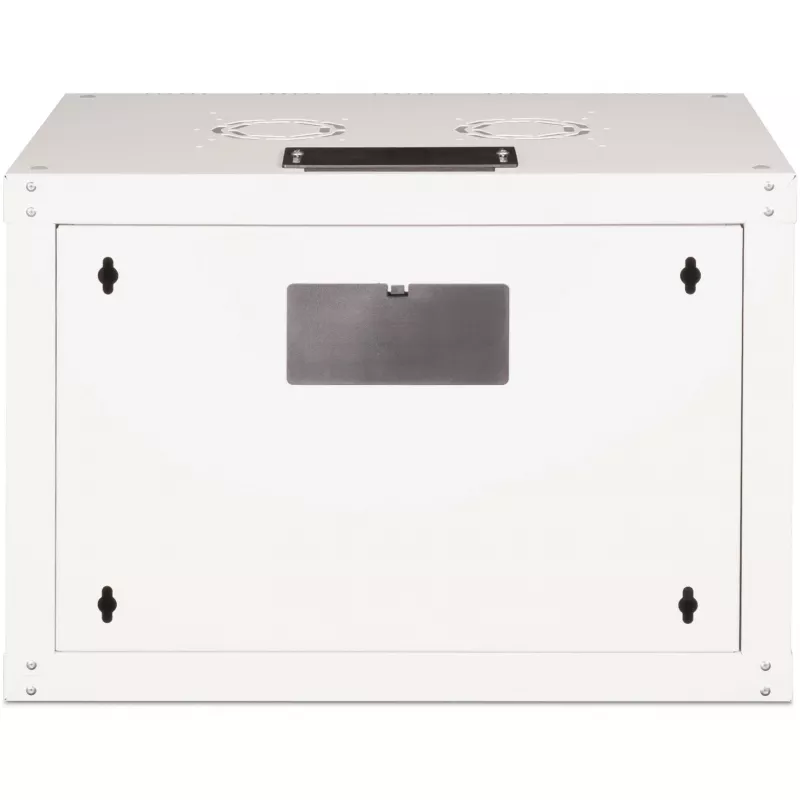

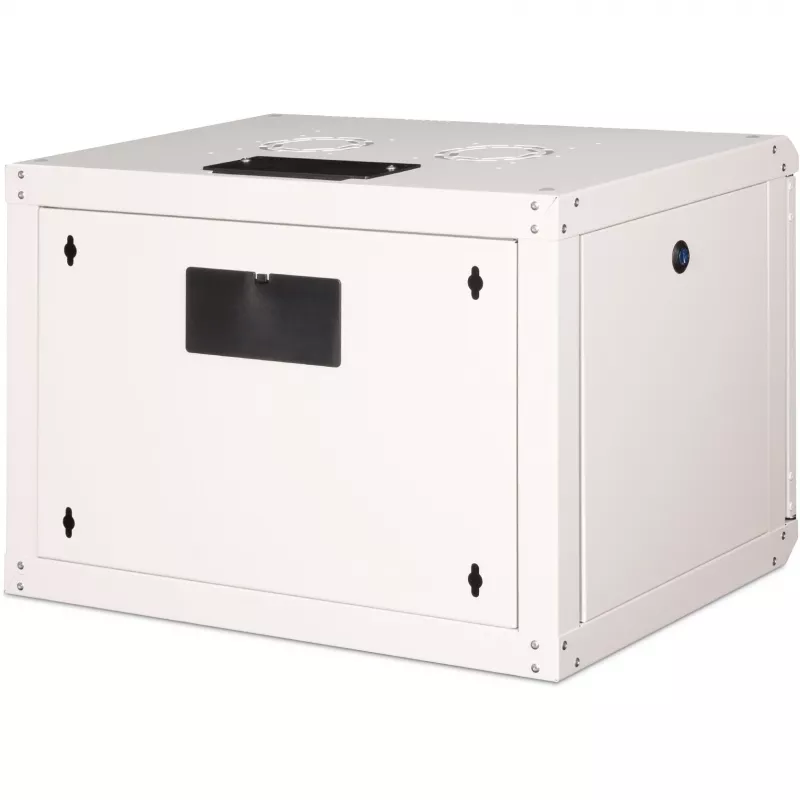

• Wall-mount design with simple two-step installation; optional leveling feet or castors for freestanding use.

Specifications

• Rack capacity: 7U
• External dimensions (W x D x H): 600 x 450 x 370 mm
• Load capacity: 60 kg
• Material: Steel sheet, up to 1.5 mm thick
• Protection rating: IP20
• Colour: Grey (RAL 7035)
• Mounting type: Wall mount
• Front door: Safety glass, lockable, reversible hinge
• Side panels: 2, removable and lockable
• Ventilation: Passive, prepared for fan unit
• Cable entry: Top and bottom
• Included: Mounting kit, screws, quick installation guide

Tips

For optimal airflow, consider adding a fan module if installing heat-generating equipment. Use the adjustable rails to align with deep devices, and ensure the wall structure can support the combined weight of the cabinet and equipment.
