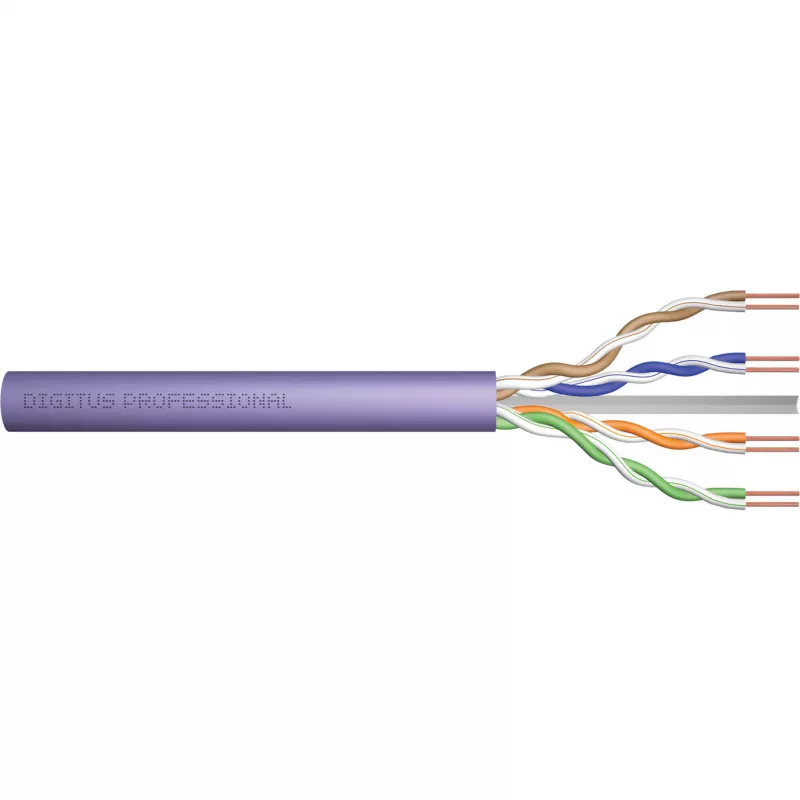

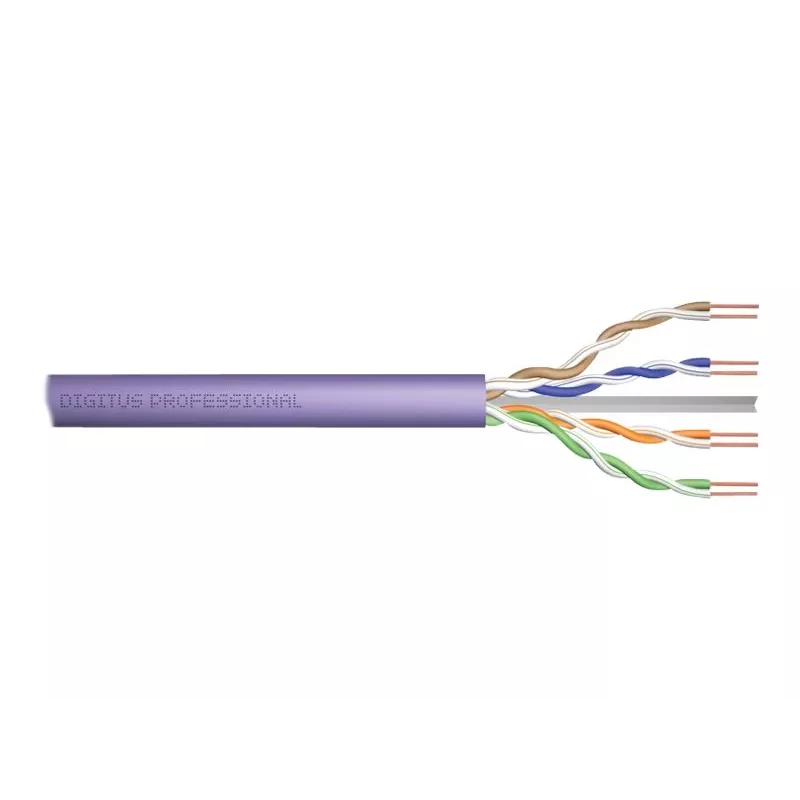

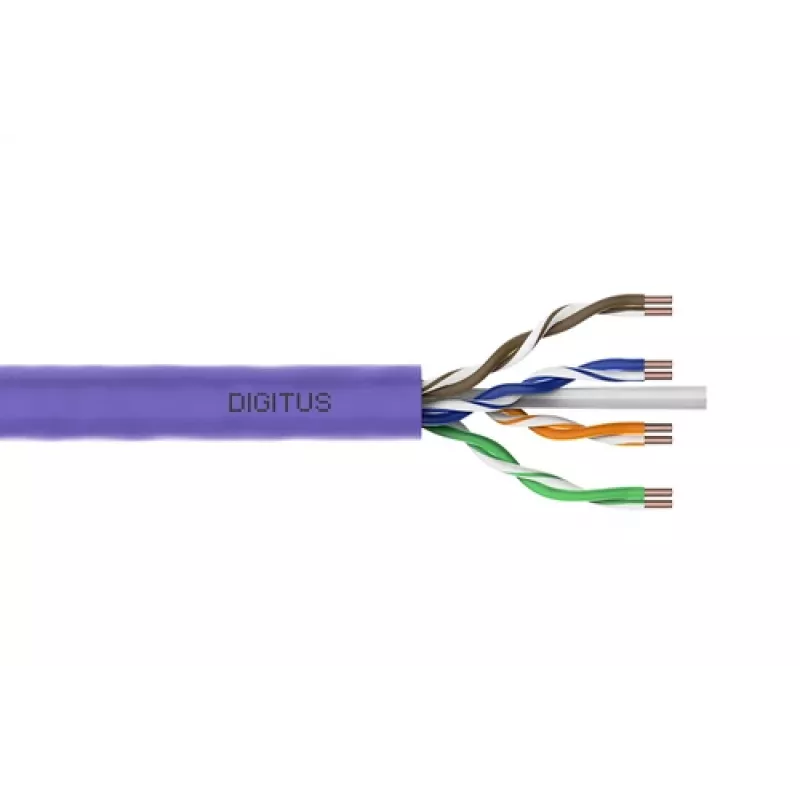

DIGITUS Cat.6 U/UTP B2ca installatiekabel, AWG23/1, LSOH, 500m, lila, rol

The DIGITUS Cat.6 U/UTP B2ca Installation Cable is a high-performance, solid conductor cable designed for structured cabling in commercial and residential buildings. With a length of 500 meters on a reel, this cable meets the stringent Euroclass B2ca fire safety standard, ensuring low smoke and zero halogen emissions in case of fire. The purple jacket provides easy identification, while the AWG23/1 bare copper conductors guarantee excellent signal transmission up to 250 MHz.

Advantages

This cable offers reliable data transmission for Gigabit Ethernet and other high-speed network applications. The U/UTP (unshielded twisted pair) design is cost-effective and easy to install, while the LSOH jacket enhances safety in occupied spaces. The B2ca classification ensures compliance with European building regulations for fire performance.

Suitable for

• Structured cabling in offices, schools, hospitals, and data centers
• Horizontal and backbone cabling in accordance with ISO/IEC 11801 and EN 50173
• Installations requiring low smoke and zero halogen materials
• PoE (Power over Ethernet) applications up to 100W

Key specifications

• Cable Type: Installation Cable
• Category: Cat.6 (up to 250 MHz)
• Shielding: U/UTP (Unshielded)
• Conductor: AWG 23/1 solid bare copper
• Number of Pairs: 4
• Jacket Material: LSOH (Low Smoke Zero Halogen)
• Jacket Color: Purple
• Length: 500 m
• Fire Performance: B2ca-s1a,d1,a1 (CPR)
• Outer Diameter: Approx. 6.2 mm
• Operating Temperature: -20°C to +60°C
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA 568-C.2, RoHS

Recommendations

For optimal performance, use with Cat.6 rated connectors and patch panels. Ensure proper cable management to maintain bend radius and avoid signal degradation. This cable is ideal for new installations or upgrades where fire safety is a priority.
