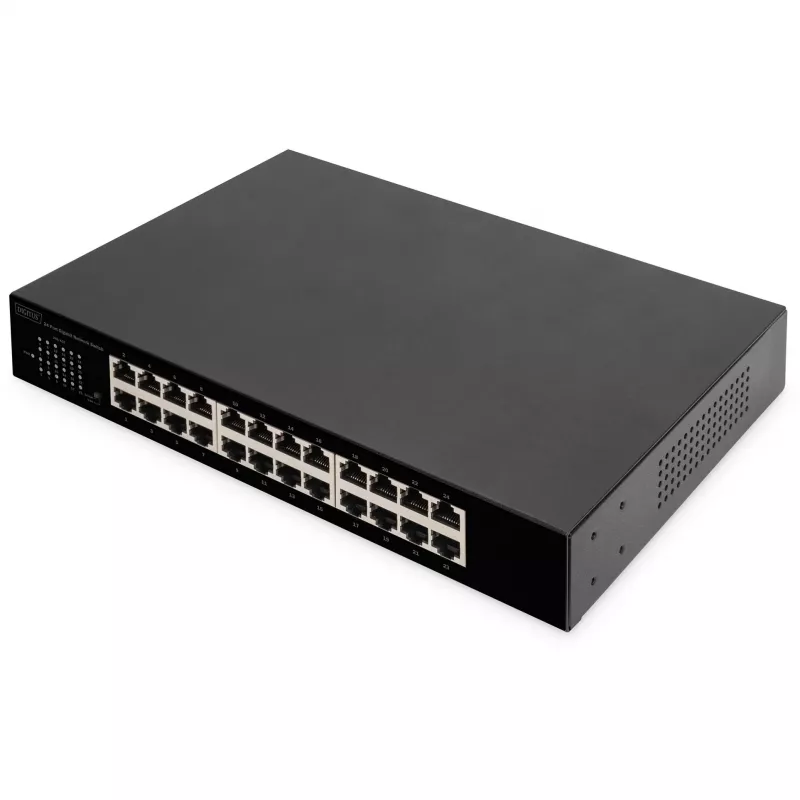

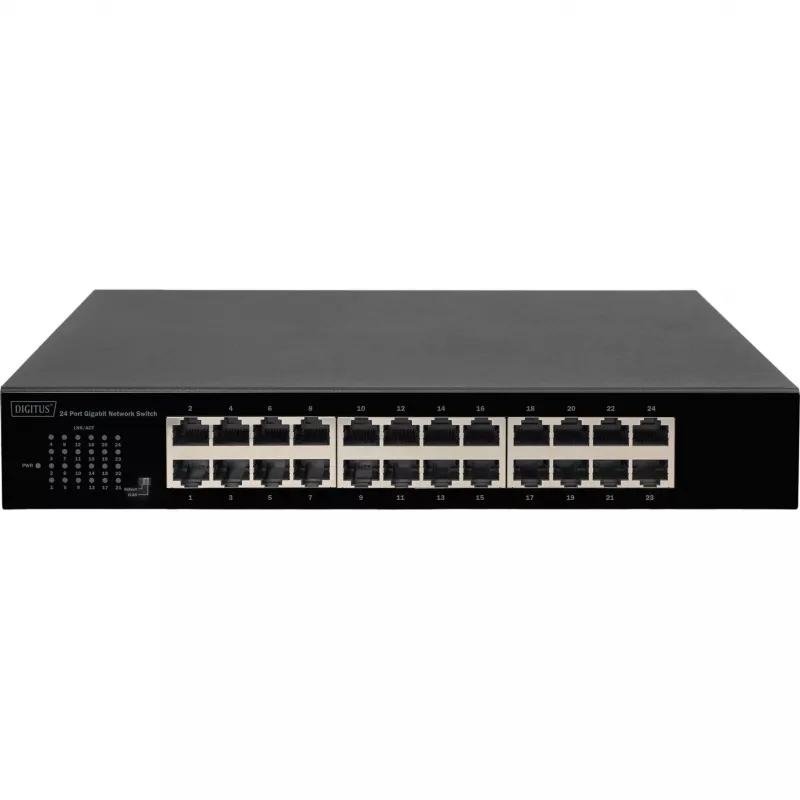

DIGITUS DN-80113-1 24-poorts Gigabit-switch, 19-inch rackmontage, 48 Gbps, unmanaged

With a 48 Gbps switching capacity and 24 Gigabit ports, this DIGITUS switch delivers wire-speed performance for demanding network environments. The fanless metal housing ensures silent operation, making it ideal for offices and meeting rooms.

Overview

The DIGITUS DN-80113-1 is an unmanaged 24-port Gigabit Ethernet switch in a 19-inch rackmount form factor. It provides 24 auto-negotiating 10/100/1000Base-T RJ45 ports with Auto MDI/MDIX, simplifying cable installation. The switch supports IEEE 802.3x flow control and jumbo frames up to 9.6 KB, ensuring efficient data transfer. Its 8K MAC address table and 35.7 Mpps forwarding rate deliver reliable performance for small to medium-sized networks.

What stands out

• 48 Gbps switching capacity for high-speed data transfer
• Fanless design for silent operation
• Rackmountable in 19-inch racks (1U height)
• Auto MDI/MDIX on all ports eliminates crossover cables
• Jumbo frame support up to 9.6 KB

Technical details

• 24 x 10/100/1000Base-T RJ45 ports
• Unmanaged plug-and-play operation
• Switching capacity: 48 Gbps
• Forwarding rate: 35.7 Mpps
• MAC address table: 8K entries
• Jumbo frame support: 9.6 KB
• Network standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x
• Flow control: IEEE 802.3x (full-duplex), back pressure (half-duplex)
• Power supply: Internal, AC 100-240V, 50/60Hz
• Power consumption: Max. 15W
• LED indicators: Power, Link/Act per port
• Housing: Metal
• Operating temperature: 0°C to 40°C

Our verdict

A reliable and silent 24-port Gigabit switch for expanding your network with minimal fuss. Its rackmount design and robust metal construction make it a solid choice for business use.
