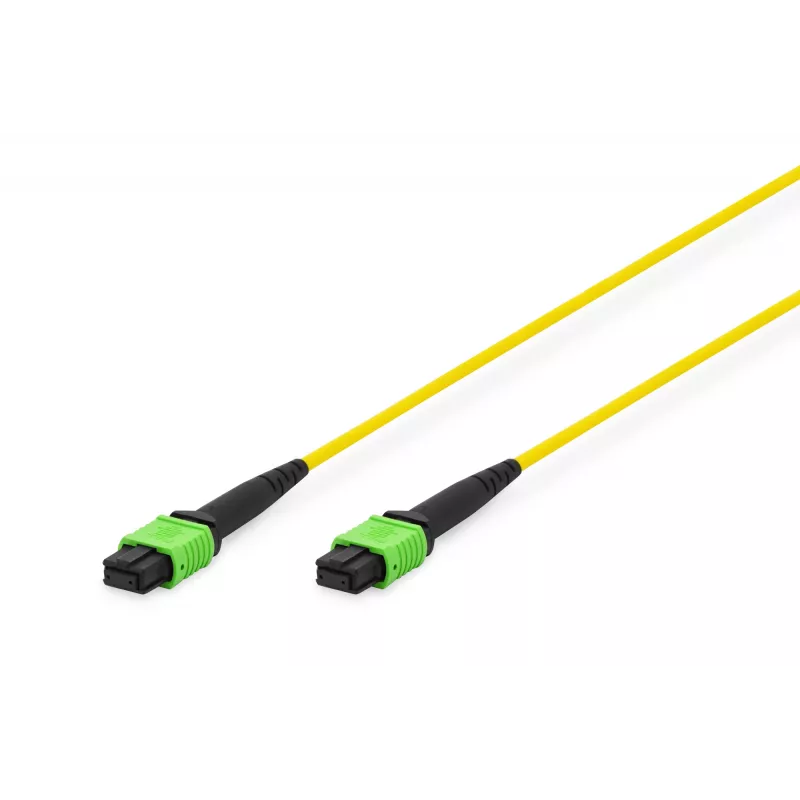

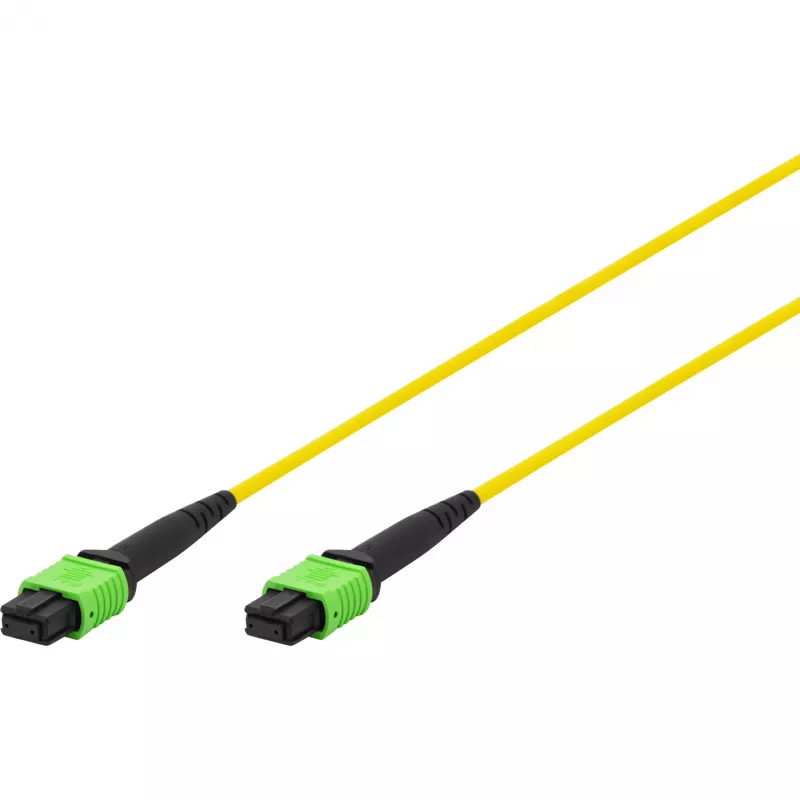

DIGITUS glasvezel-patchkabel MPO naar MPO, OS2 singlemode 9/125 µm, 12 vezels, 5 m, LSZH, geel DK-2966-05

Fiber optic patch cable with MPO connectors on both ends, engineered for high-density data center environments. This 5-meter OS2 singlemode cable features 12 fibers with a 9/125 µm core/cladding diameter, delivering exceptional performance with low insertion loss and high return loss. The LSZH jacket ensures safety in case of fire, making it ideal for modern networking infrastructure.

Advantages

MPO connectors enable rapid deployment of multiple fibers in a single connection, reducing installation time and complexity. The singlemode OS2 fiber supports long-distance transmission with minimal signal degradation, suitable for backbone and high-speed applications. LSZH jacket emits low smoke and zero halogen when exposed to flame, enhancing safety in enclosed spaces. The yellow jacket provides easy identification of singlemode cables in dense cabling systems.

Suitable for

• Data centers requiring high-density fiber connectivity
• Telecommunications rooms and backbone cabling
• High-speed network upgrades to 40G/100G Ethernet
• Environments with strict fire safety regulations

Key specifications

• Cable length: 5.0 m
• Fiber type: OS2 singlemode 9/125 µm
• Number of fibers: 12
• Connectors: MPO male to MPO male
• Insertion loss: ≤ 0.35 dB
• Return loss: ≥ 50 dB
• Jacket material: LSZH
• Cable color: Yellow
• Operating temperature: -20°C to 70°C

Recommendations

For optimal performance, pair this cable with compatible MPO cassettes or adapters. Ensure proper polarity and cleaning of connectors before installation. Use in structured cabling systems that require high bandwidth and reliability.
