DIGITUS installatiekabel - CAT 7A - S/FTP - AWG 22/1 simplex - 500 m - geel - B2ca

DIGITUS® CAT 7A S/FTP installation cable 4x2x AWG22/1 is a halogen-free network cable designed for structured cabling in data centers and buildings. The cable supports transmission frequencies up to 1500 MHz, is suitable for 10 Gbit Ethernet and complies with standards including ISO/IEC 11801, DIN EN 50173 and DIN EN 50288-4-1. The sheath meets IEC 60332-3-24, FRNC-C, LSZH-3 and CPR Euro class B2ca requirements.

Advantages

The S/FTP design uses individually shielded pairs plus an overall tinned copper braid to provide high shielding effectiveness and stable electrical performance. The halogen-free sheath reduces toxic gas emissions in case of fire, and the cable is certified for permanent link installations. It supports Power over Ethernet (PoE, PoE+) and is suitable for analog and digital data, audio, video and signal transmission in professional installations.

Key specifications

• Cable type: CAT 7A S/FTP installation cable
• Conductor: 4x2x AWG22/1
• Frequency range: up to 1500 MHz
• Ethernet: supports 10 Gbit Ethernet
• PoE support: PoE, PoE+
• Standards: ISO/IEC 11801, DIN EN 50173, DIN EN 50288-4-1, IEC 61156-7
• Sheath: halogen-free, FRNC-C, LSZH-3
• Fire rating/CPR: Euro class B2ca, complies with IEC 60332-3-24

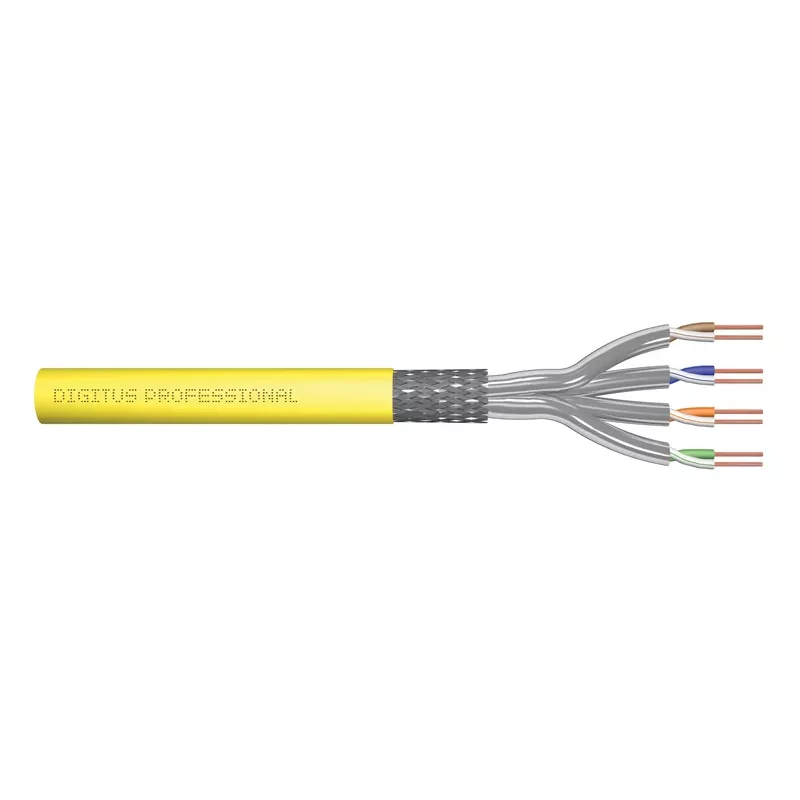

• Shielding: individually shielded pairs (S/FTP) with tinned copper braid
• Certification: permanent link certified

How to use

Install the cable as part of a structured cabling system following ISO/IEC 11801 and local installation rules. Terminate with compatible CAT 7A or higher connectors and test the permanent link to verify performance up to 1500 MHz. Ensure proper grounding of the shield braid and avoid sharp bends or mechanical stress during installation to maintain electrical characteristics.

Recommendations

Use this DIGITUS CAT 7A cable for backbone and horizontal runs in commercial and data center environments where high bandwidth, strong shielding and low-emission halogen-free materials are required. Verify connector and patch panel compatibility before deployment and perform certification tests after installation.
