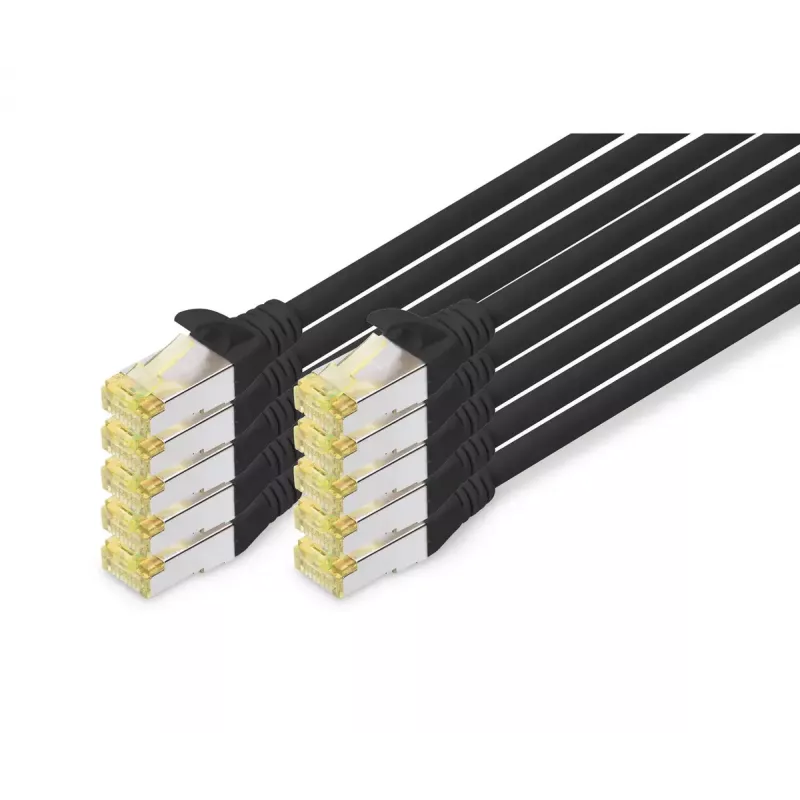

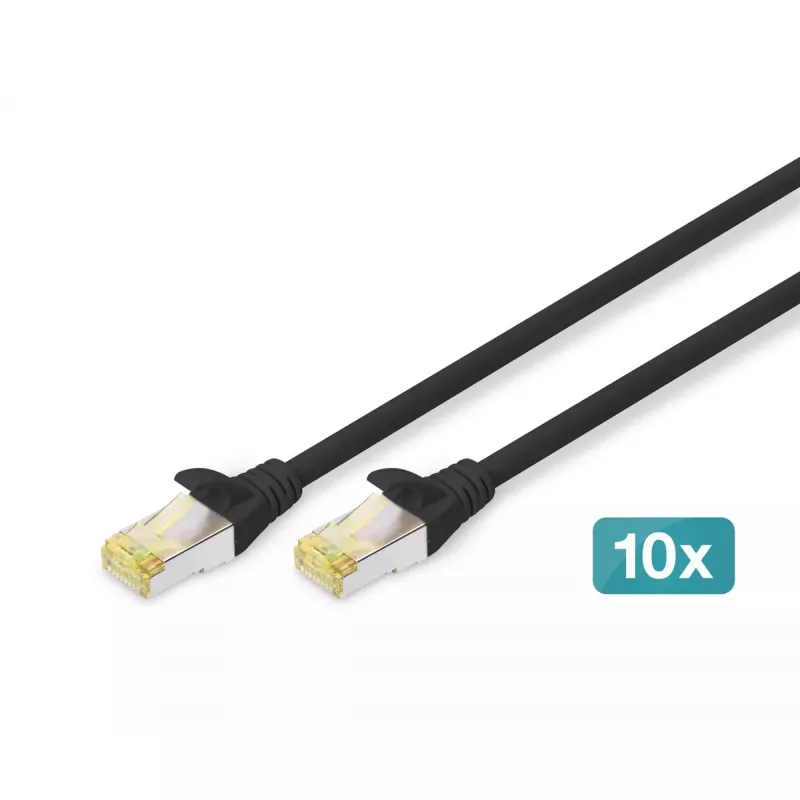

DIGITUS patchkabel - CAT6a - S/FTP - Snagless - 3 m - zwart - 10-pack

Future-oriented standards and high-end quality for your network. DIGITUS Category 6A Class EA patch cord with LSZH (Low Smoke Zero Halogen) outer sheath provides improved fire behaviour and low smoke emissions. The transparent yellow plug with metal shielding allows easy identification of Category 6A (500 MHz). Conductor material is copper (Cu) and the cable is PoE+ ready.

Advantages

The patch cord is manufactured and tested to ISO/IEC 11801 and DIN EN 50173 Category 6A specifications, ensuring channel compliance and reliable performance up to 500 MHz, including NEXT characteristics. Each cable features a molded boot with kink protection and strain relief, plus a latch protection to prevent breakage of the latching lever. The transparent yellow connector simplifies visual identification of Category 6A cabling.

Key specifications

• Category: 6A / Class EA
• Tested frequency: up to 500 MHz
• Standards: ISO/IEC 11801, DIN EN 50173
• Sheath: LSZH (Low Smoke Zero Halogen)
• Connector color: transparent yellow with metal shielding
• Conductor: Copper (Cu)
• PoE support: PoE+
• Strain relief: molded boot with kink protection and latch protection

How to use

Connect one end of the patch cord to the RJ45 port of your network device and the other end to the corresponding port in the patch panel or switch. Ensure the molded boot and latch are correctly seated to avoid accidental disconnection. Route the cable to avoid sharp bends and mechanical stress; the LSZH sheath improves fire safety but standard cable handling precautions should be observed.

Recommendations

For optimal network performance, use DIGITUS Category 6A patch cords within a properly installed Category 6A cabling system and keep channel lengths within the standards’ limits. Store and install cables in dry, temperature-stable conditions and avoid excessive bending or pulling during installation.
