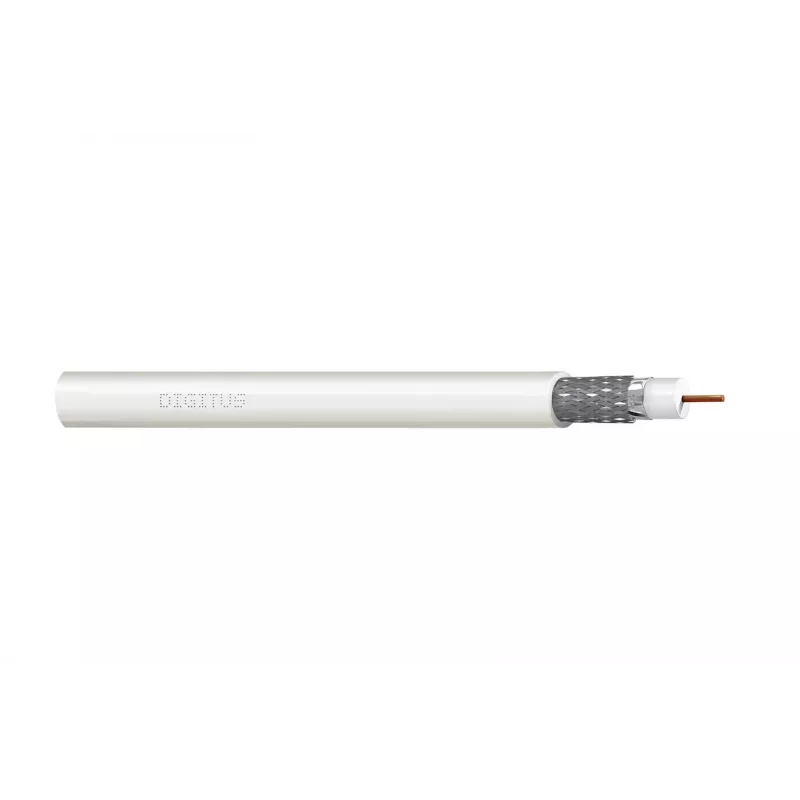

DIGITUS RG-6 coaxkabel, 75 Ohm, dubbel afgeschermd (2x folie + 77% vlechtwerk), Eca, PVC, 100 m, wit

The DIGITUS RG-6 coaxial cable is a high-performance solution for professional signal transmission in DVB-S, DVB-T, DVB-C, and CCTV applications. With a 75 Ohm impedance and double shielding (2x foil + 77% braid), it ensures excellent protection against interference and signal loss. The cable is CPR classified Eca, making it suitable for fixed installations in buildings. Its white PVC jacket is durable and easy to install.

Advantages

Reliable signal integrity for satellite, terrestrial, cable TV, and surveillance systems. The double shielding provides superior EMI/RFI protection, while the 77% braid coverage ensures flexibility and durability. The Eca fire class complies with European construction product regulations.

Suitable for

• Satellite TV (DVB-S)
• Terrestrial TV (DVB-T)
• Cable TV (DVB-C)
• CCTV systems
• Broadband internet

Key specifications

• Cable type: RG-6 coaxial
• Impedance: 75 Ohm
• Length: 100 m
• Shielding: Double (2x foil + 77% braid)
• Jacket material: PVC
• CPR class: Eca
• Inner conductor: Copper, 1.02 mm
• Dielectric: Foamed PE
• Outer diameter: 6.8 mm
• Attenuation @ 100 MHz: 6.9 dB/100m
• Attenuation @ 1000 MHz: 22.5 dB/100m
• Operating temperature: -20°C to +75°C

Recommendations

For optimal performance, use with F-Type connectors (not included). Ensure proper grounding and avoid sharp bends. Suitable for indoor and outdoor use when protected from direct weather exposure.
