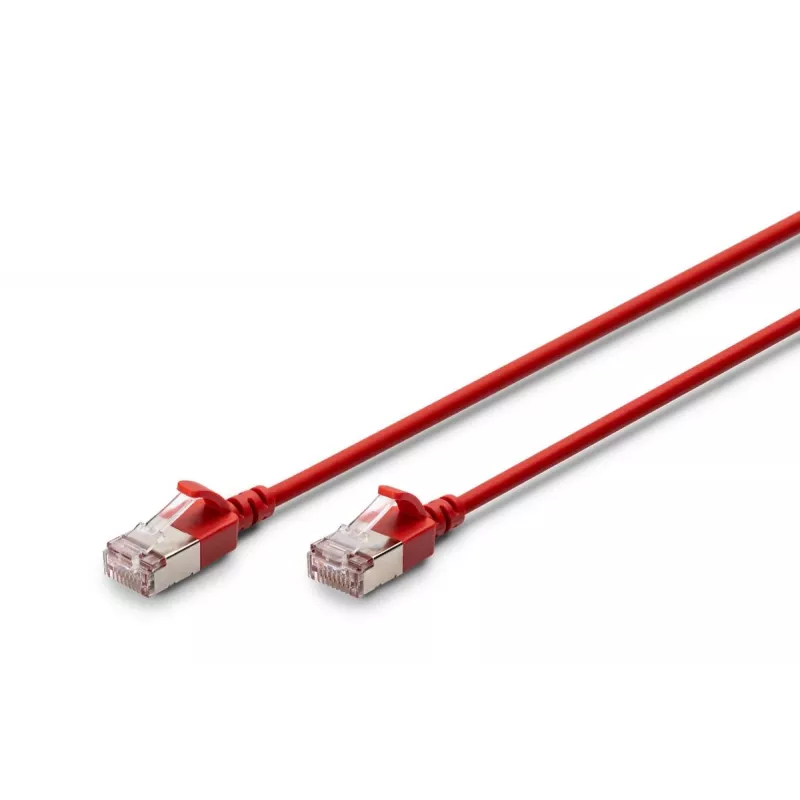

DIGITUS slanke patchkabel - CAT6A - F-FTP - 2 m - rood

DIGITUS slanke patchkabel - CAT6A - F-FTP - 2 m - rood
DIGITUS slanke patchkabel - CAT6A - F-FTP - 2 m - rood
DIGITUS slanke patchkabel - CAT6A - F-FTP - 2 m - rood
DIGITUS slanke patchkabel - CAT6A - F-FTP - 2 m - rood
DIGITUS slanke patchkabel - CAT6A - F-FTP - 2 m - rood
DIGITUS slanke patchkabel - CAT6A - F-FTP - 2 m - rood
DIGITUS slanke patchkabel - CAT6A - F-FTP - 2 m - rood
DIGITUS slanke patchkabel - CAT6A - F-FTP - 2 m - rood
6,94 €
Future-oriented standards and high-end quality for your network.- Advantage: Slim and flexible design, the cable can be laid effortlessly in confined spaces- Features: Transmission speed 10 Gbit/s and frequency 500 MHz- Application area: ideal for data centers, high-density solutions and home office... Lees meer
Voorraad 2 Code 114210 Merk DIGITUS Model DK-1632-A-020S-R Garantie 2 jaar

Bezorging & retourneren

Verwachte bezorgdatum donderdag, oktober 15
Je blijft op de hoogte via ons uitgebreide trackingsysteem
Betaalopties
BetaalkaartVisaMastercardPayPalApple PayGoogle PayBankoverschrijving

Future-oriented standards and high-end quality for your network.

- Advantage: Slim and flexible design, the cable can be laid effortlessly in confined spaces
- Features: Transmission speed 10 Gbit/s and frequency 500 MHz
- Application area: ideal for data centers, high-density solutions and home offices
- PoE+ ready

DIGITUS® Slim patch cables are characterized by their small outer diameter and flexible jacket. The slim design enables versatile use in your network. In addition, DIGITUS® Slim patch cables are manufactured in accordance with the ISO/IEC 11801 and DIN EN 50173 CAT 6A standards. They guarantee that the cable installation complies with the ISO & EN channel specification and offer excellent performance in DIGITUS® CAT 6A cabling. Performance has been tested up to 500 MHz, including features such as near-end crosstalk ("NEXT"). DIGITUS® patch cables have been specially developed to meet all requirements in various application areas. Each cable is equipped with a molded anti-kink sleeve with strain relief. In addition, the sleeve has a locking lever protection that prevents the cable from kinking and the locking lever from breaking off the plug.

Belangrijkste kenmerken
  • Outer casing: LSZH (Low Smoke Zero Halogen)
  • Total diameter: 3.8 mm ± 0.15 mm
  • Conductor stranded: AWG 32/7 bare copper, 0.12 ± 0.005 mm
  • Insulation: HD-PE (high-density polyethylene)
  • Bending radius: 15x OD
  • Plug: RJ45 plug
  • Color code: Orange x white, green x white, blue x white, brown x white
  • Wiring standard: EIA/TIA 568B
  • PIN assignment: 1:1
  • Contact resistance: 376.96Ω/km maximum at 20 °C
  • Imbalance of the resistance: maximum 3%
  • Operating temperature: -20 °C up to +60 °
  • Flame retardancy: IEC 60332-1
  • Smoke emission: IEC 61034
  • Typical applications: IEEE 802.3: 10BASE-T; 100BASE-T; 1000BASE-T
  • Standards: ISO/IEC 11801-1; EN-50173; ANSI/TIA 568-C; EN 60603-7-4
  • Dielectric strength: AC 500V for 1 minute without breakdown (TIA/EIA-364-21)
  • Service life: 750 mating cycles
  • Packaging: DIGITUS Polybag
Specificaties
Aansluiting 1
RJ-45
Aansluiting 2
RJ-45
Aantal per verpakking
1 pc(s)
AWG-draaddikte
32/7
Bedrijfstemperatuur (T-T)
-20 - 60 °C
Buitendiameter
3.8 mm
Coating connectorcontacten
Bronze/Gold
Frequentie
500 MHz
Geslacht aansluiting 1
Male
Geslacht aansluiting 2
Male
Kabelafscherming
F/FTP (FFTP)
Kabellengte
2 m
Kabelnorm
Cat6a
Kabelvorm
Round
Materiaal geleider
Copper
Materiaal mantel
Low smoke zero halogen (LSZH)
Ondersteund Power over Ethernet (PoE)-type
PoE+
Overdrachtssnelheid
10000 Mbit/s
Power over Ethernet (PoE)
Yes
Productkleur
Red
Type geleider
Flexible
Vormfactor aansluiting 1
Straight
Vormfactor aansluiting 2
Straight
