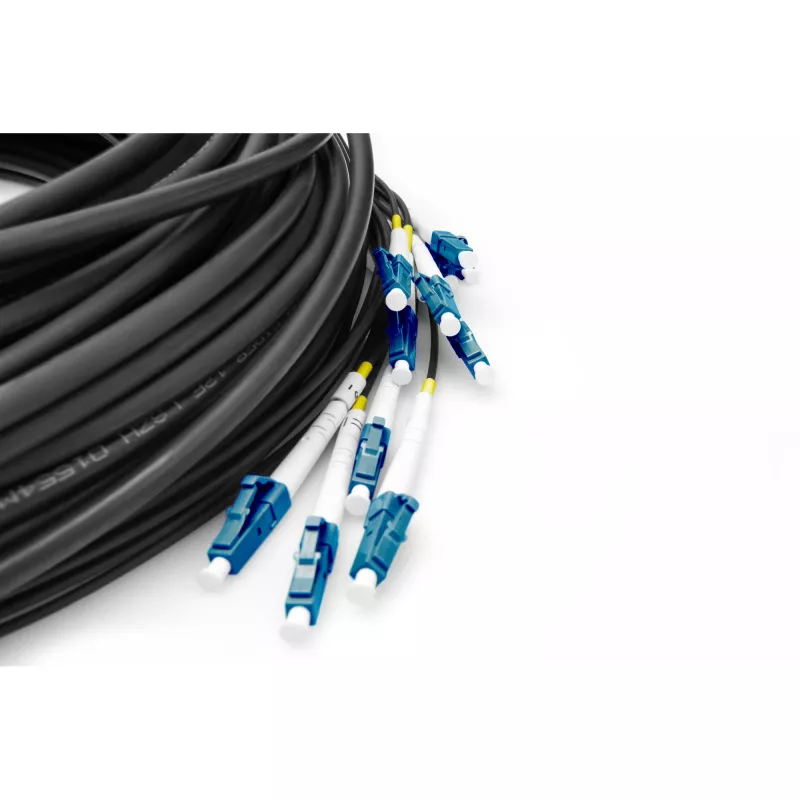

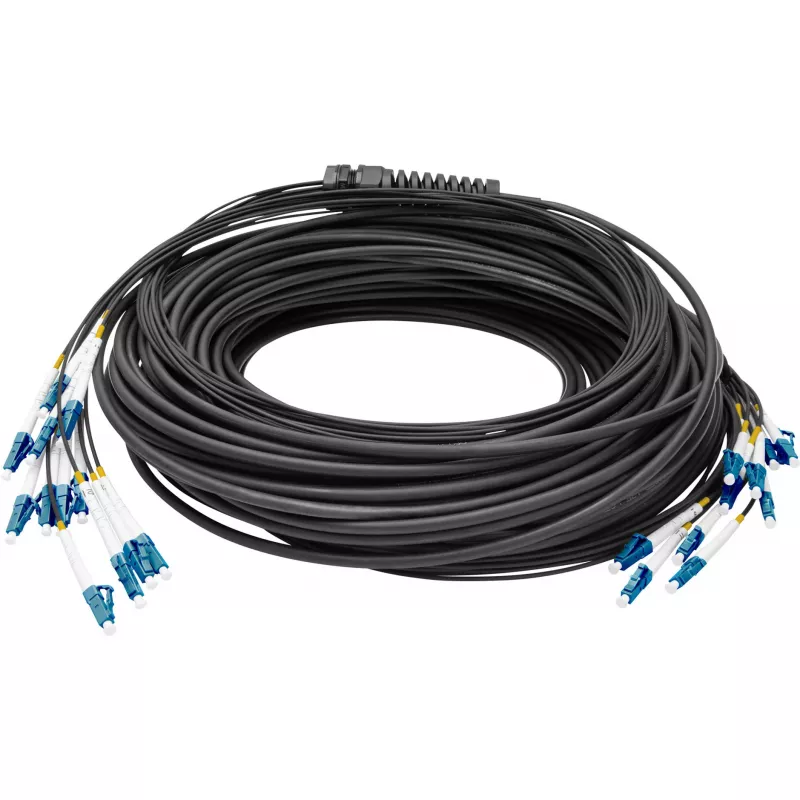

Digitus voorgemonteerde universele glasvezel-breakoutkabel, singlemode OS2, 12 vezels, LC/UPC - LC/UPC

Digitus Pre-assembled Fiberglass Universal Breakout Cable, Single Mode OS2, 12 Fibers, LC/UPC - LC/UPC. Cable length: 30 m, Cable type: U-DQ(ZN) BH, Fibre optic type: OS2, Connector 1: LC, Connector 2: LC, Core diameter: 9 µm

Key Features

• Cable type : Breakout/ universal cable (I/A-DQ (ZN) BH X E 9/125µm)
• Fiber category : Singlemode
• Fiber type : OS2 G.657.A1 9/125
• Number of cores : 12
• Length : 30
• Plug connection 1 : LC/UPC
• Plug connection 2 : LC/UPC
• Sheath material : Dca
• Color outer jacket : Black
• Halogen-free (according to EN 50267-2-3) : Yes
• IL for multimode: max. 0.3dB
• IL for singlemode: max.0.3dB
• RL for multimode: min. 30dB
• RL for singlemode: min. 50dB
• Outer diameter of the black protective tube: 30.5 mm
• Outer cable diameter: 6.0 mm
• Operating temperature: -20~70℃
• Storage temperature: -20~70℃
• Outer diameter of the ring band: 35 mm
• Pull-in aid on both sides

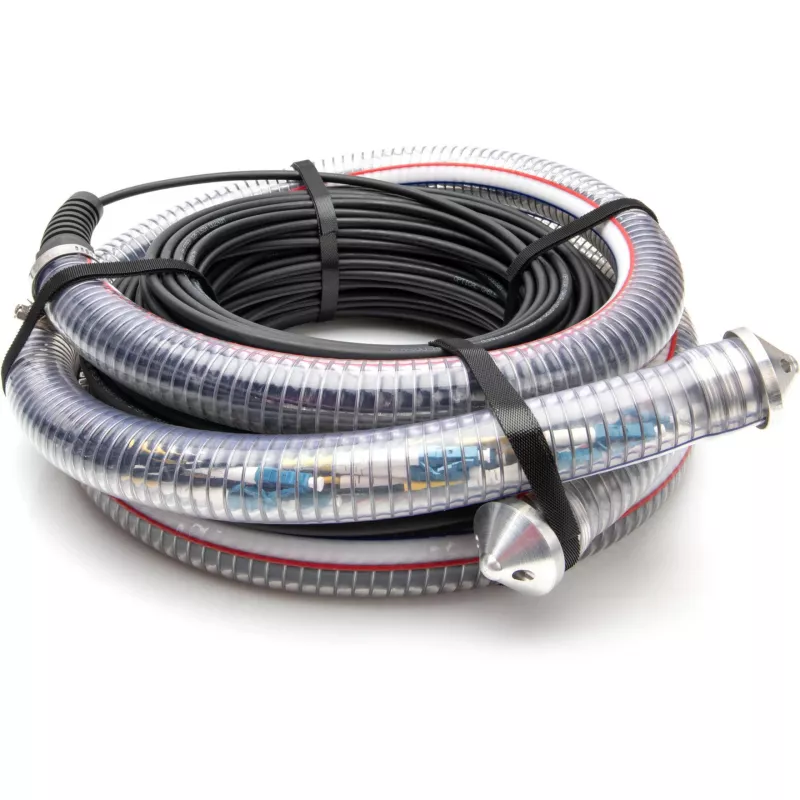

• Protection tube: 28.5 mm
• U-DQ(ZN) BH OS2
• 30 m
• LC Male
• LC Male
• Connector polish type: UPC
• Jacket material: Low smoke zero halogen (LSZH)
• Single-mode
• Black

Pre-assembled fiber optic breakout cables enable simple, time-saving and flexible installation of high-bandwidth network links.

- Pre-assembled
- High-quality connectors fitted ex works
- Ready for immediate use, without additional splicing work
- Standard lengths available from stock
- High-quality components and construction
- Applications Applicable for indoor and outdoor use
- Connection of network cabinets without potential differences
- Individual mechanically protected fibers
- Robust cable construction
- Pull-in aid on both sides for secure installation

This pre-terminated breakout fiber optic cable is ideal for installations that require an extremely robust and reliable fiber optic cable design where maximum mechanical protection is required. It offers a secure plug & play solution for installations through the pre-terminated connectors. It is easy to install on partially assembled patch panels, for example. The supplied measurement protocol eliminates the need for time-consuming follow-up checks.
