Display-module Dahua Technology VTO4202F-MS

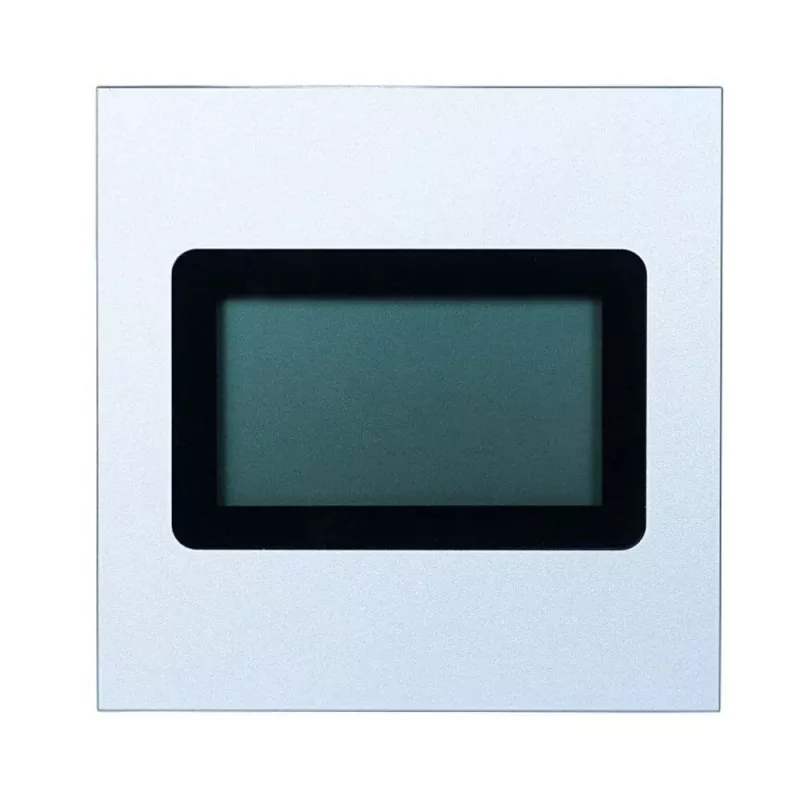

The Dahua Technology VTO4202F-MS display module is a compact visual interface designed for integration with compatible Dahua access control and video intercom systems. Finished in silver, the unit measures 100 mm × 28.5 mm × 100 mm and is supplied as a single module. The display provides a neat, space-saving option for mounting a screen in door-station or indoor station assemblies while matching the visual style of other Dahua components.

Advantages

The display module combines a compact footprint with a neutral silver finish that fits typical installation environments. Its standardized dimensions make it straightforward to mount into compatible housings or panels. Supplied as a single unit, it simplifies inventory and replacement tasks when expanding or servicing a Dahua system. Built to work with Dahua Technology products, it maintains compatibility and consistent user experience within the product family.

Suitable for

• Integration into Dahua door-station or indoor station assemblies
• Replacement of an existing small display module in compatible Dahua panels
• Installations where a compact, low-profile display is required
• Residential or small commercial intercom and access control setups

Key specifications

• Outer dimensions: 100 mm (width) × 28.5 mm (depth) × 100 mm (height)
• Color / finish: silver
• Package contents: single display module
• Compatibility: designed for use with Dahua Technology systems
• Form factor: compact, low-profile module for panel integration

How to use

Install the Dahua VTO4202F-MS display module into a compatible Dahua housing or panel according to the mounting cutouts and mechanical alignment. Connect the module to the corresponding Dahua backplane or wiring harness as specified by the system installation guide to provide data and power. After physical installation and wiring, complete any required configuration through the associated Dahua device or management software to enable display functions and ensure proper integration with the rest of the system.

Recommendations

Handle the module with care during installation to avoid damage to the display surface and connector pins. Verify compatibility with the target Dahua device before fitting, and follow Dahua’s installation instructions and electrical safety guidelines. For longevity and optimal performance, install the module in environments within the manufacturer's recommended temperature and humidity ranges and avoid exposure to direct sunlight or excessive dust.
