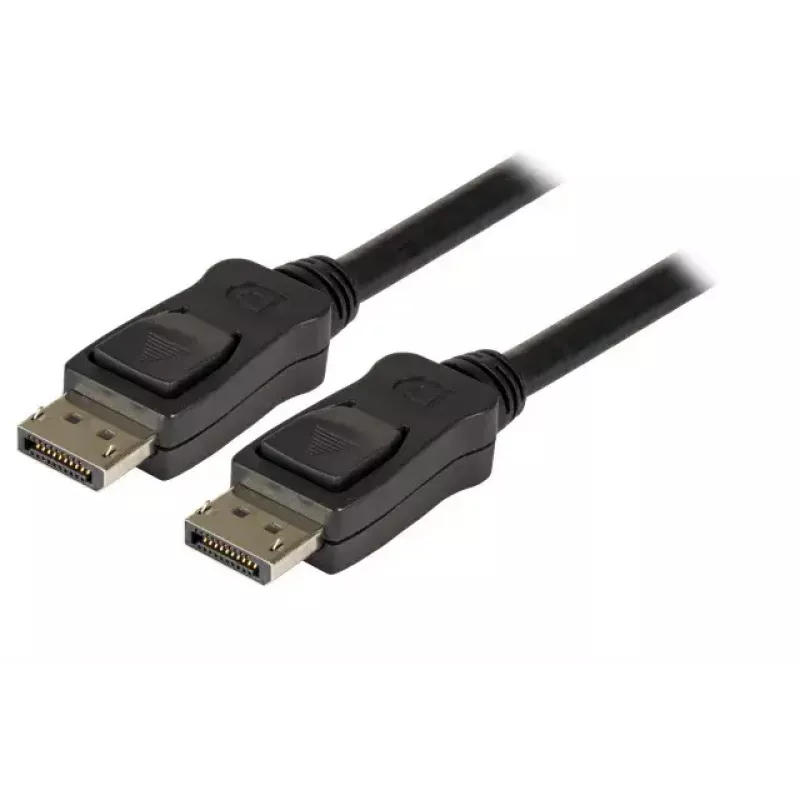

DisplayPort-kabel EFB Elektronik K5560HQSW.2 2 m zwart

The EFB Elektronik K5560HQSW.2 is a 2 m DisplayPort cable that follows the DisplayPort 1.4 standard and supports resolutions up to 4K Ultra HD (4096 x 2160 @ 60Hz). It is designed for reliable video and audio transmission between DisplayPort-equipped devices and features a premium zinc die-cast housing with full EMC shielding and a DP lock for a secure connection. The cable is finished in black and uses high-quality materials for longevity.

Advantages

Gold-plated DisplayPort plugs and contacts improve signal integrity and resistance to corrosion. Triple shielding combined with a zinc die-cast housing provides effective protection against electromagnetic interference. The conductor is bare copper with a PVC jacket for durable signal conduction and insulation. Pin 20 (DP_PWR) is not connected, in accordance with some DisplayPort cable implementations.

Suitable for

• Connecting desktop PCs or laptops to 4K monitors or displays
• Linking graphics cards to DisplayPort-enabled projectors
• High-resolution video and audio transmission for workstations and home offices

Key specifications

• Standard: DisplayPort 1.4
• Maximum resolution: 4K Ultra HD (4096 x 2160 @ 60Hz)
• Length: 2 m
• Connectors: DisplayPort to DisplayPort
• Housing: Premium zinc die-cast with full EMC shielding and DP lock
• Contacts: Gold-plated
• Shielding: Triple shielding
• Conductor material: Bare copper; Jacket: PVC
• Pin 20 (DP_PWR): Not connected
• Colour: Black

How to use

Plug one DisplayPort connector into the DisplayPort output on your source device (PC, laptop, or graphics card) and the other connector into the DisplayPort input on the monitor or projector. Ensure the DP lock engages to secure the connection. Select the appropriate input on the display and configure resolution and refresh rate in your operating system or graphics driver to achieve 4K @ 60Hz where supported.

Recommendations

For optimal performance, avoid tightly coiling the cable or placing it near strong electromagnetic sources. Ensure both devices support DisplayPort 1.4 and the desired resolution; if issues occur, check connector seating and graphics driver settings.
