DisplayPort-stekker - DVI-bus adapter VALUE 12.99.3133

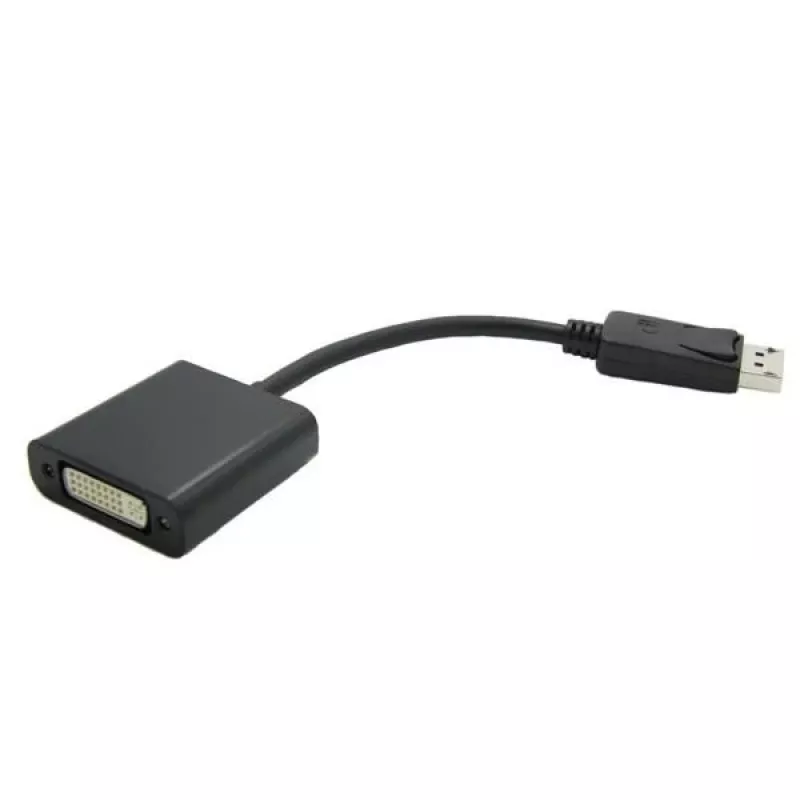

The VALUE Cable Adapter DisplayPort M to DVI F (model 12.99.3133) lets you connect a DisplayPort output on a graphics card to a DVI monitor using a DVI St-ST cable. The compact adapter includes a DisplayPort male connector on one end and a DVI‑D 24+1 Dual‑Link female socket on the other, with a short integrated cable of 0.15 m and overall dimensions of approximately 14 x 44 x 44 mm.

Advantages

This adapter provides a straightforward, passive connection from a DisplayPort source to a DVI display without requiring external power. Its compact size and black finish make it easy to place behind monitors or in tight installation spaces. The VALUE build and materials ensure stable physical connection and reliable signal transfer for compatible devices.

Suitable for

• Connecting a graphics card with DisplayPort output to a DVI monitor
• Workstations and office PCs where a DVI display must be used
• Home setups where a DisplayPort-equipped laptop or PC is connected to an older DVI screen

Key specifications

• Brand: VALUE
• Model / MPN: 12.99.3133
• EAN: 7611990129164
• Connector A: DisplayPort male
• Connector B: DVI‑D 24+1 Dual‑Link female (DVI F)
• Cable length: 0.15 m (integrated)
• Dimensions (approx.): 14 x 44 x 44 mm
• Color: Black

How to use

Insert the DisplayPort male connector into the graphics card's DisplayPort socket and connect a DVI St‑ST cable to the adapter's DVI‑D female connector. Ensure both devices are powered off when making the physical connection; power on the PC and monitor afterwards. Configure display settings in the operating system as needed to select resolution and refresh rate supported by the DVI monitor.

Recommendations

Use this adapter for DisplayPort-to-DVI signal conversion when the graphics source supports dual‑mode DisplayPort (DP++). For optimal results, check the monitor's supported resolutions and use a compatible DVI cable; do not force resolutions beyond the DVI display's specifications.
