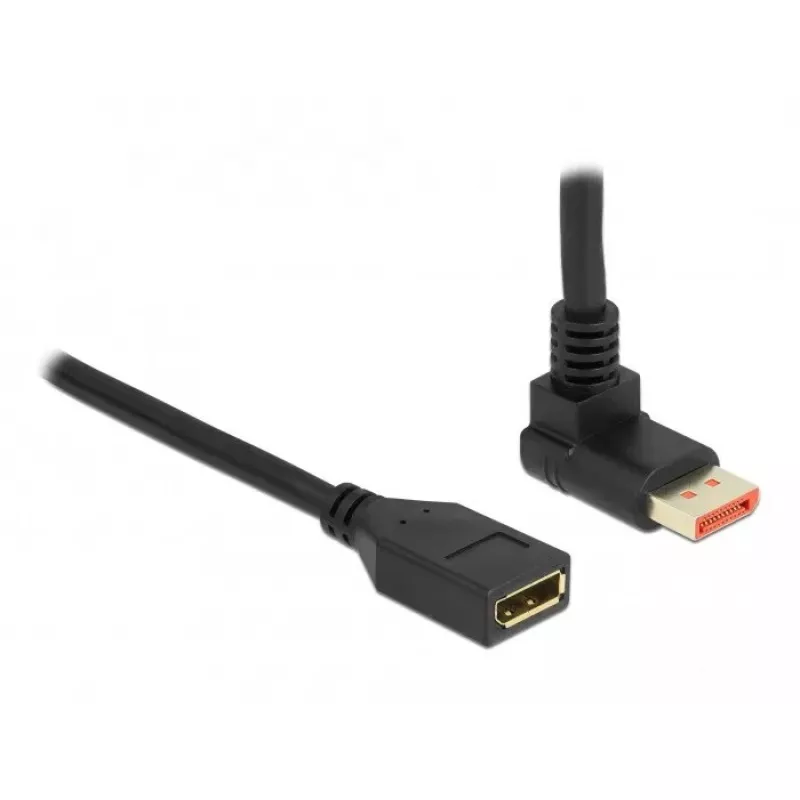

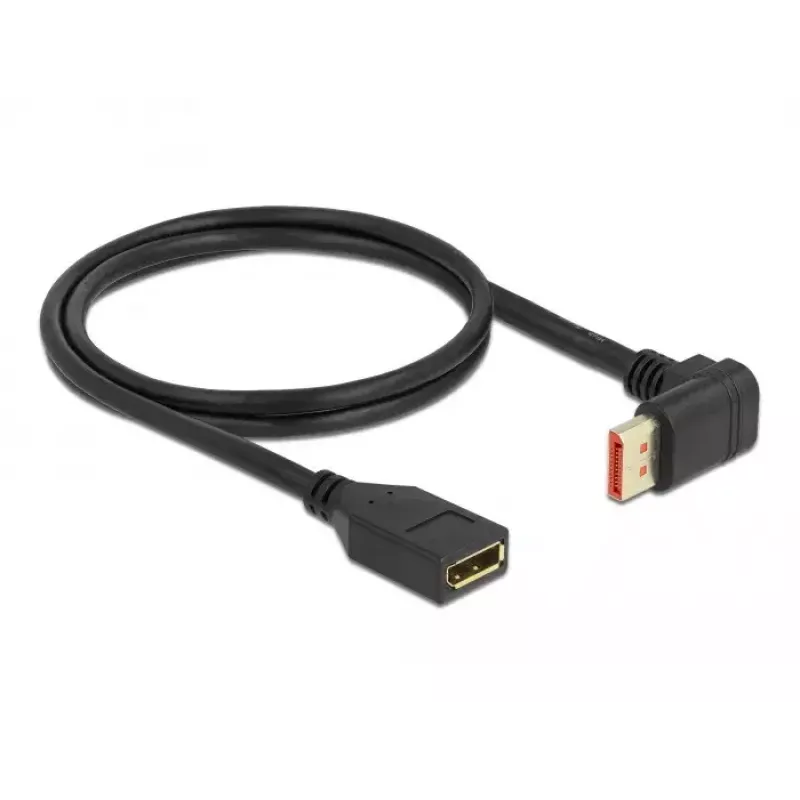

DisplayPort-verlengkabel DeLOCK 90° naar boven afgewinkeld 8K 60 Hz 1 m

This DisplayPort extension cable by DELOCK extends an existing DisplayPort connection and features a 90° upwards angled male connector for flexible installation in tight spaces. The 1 m cable has a 7 mm diameter and a black jacket. It is designed for reliable video transmission between DisplayPort sources and displays without putting strain on device ports.

Advantages

The triple-shielded construction reduces interference and supports high-resolution video up to 8K Ultra HD (7680 x 4320 @ 60 Hz) while remaining backwards compatible with 4K. The 90° upwards angled connector helps when vertical clearance behind devices is limited, and the 1 m length offers a compact extension option for both home and professional setups.

Suitable for

• Extending a DisplayPort connection where port access is restricted
• Connecting PCs, laptops or graphics cards to monitors or TVs with DisplayPort
• Home cinema systems and professional workstations requiring 8K/4K video

Key specifications

• Length: 1 m
• Connector 1: DisplayPort (male, 90° upwards angled)
• Connector 2: DisplayPort (female)
• Supported resolution: up to 8K Ultra HD (7680 x 4320 @ 60 Hz), downwards compatible to 4K
• Cable diameter: 7 mm
• Colour: Black

How to use

Plug the male 90° upwards angled DisplayPort connector into the source device’s DisplayPort output and connect the cable’s female end to the monitor or display’s DisplayPort cable or plug. Ensure connectors are fully seated. Route the cable to avoid sharp bends and excessive tension on the connectors.

Recommendations

For best performance, use with DisplayPort-compatible devices and certified DisplayPort cables or adapters. Avoid kinking the cable and keep connector areas free of dust. If using long adapter chains, verify that each link supports 8K @ 60 Hz if that resolution is required.
