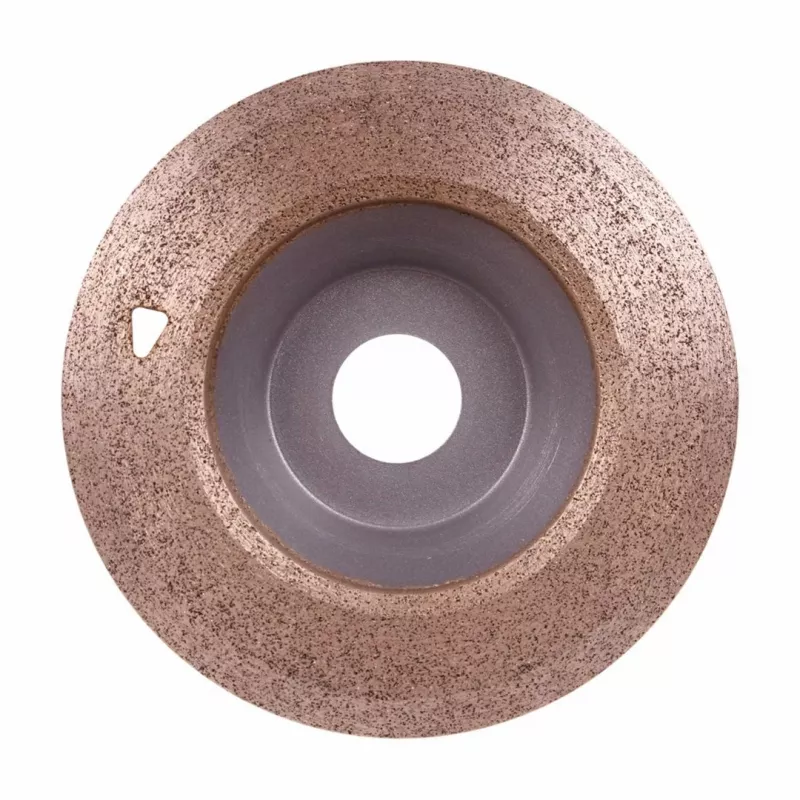

DISTAR SOFTEDGE diamant-snijschijf 115 x 1,5 x 22,2 mm

The DISTAR SOFTEDGE Diamond Cutting Disc is a professional-grade tool designed for ultra-fine, chip-free cutting of delicate and brittle materials. With a 115 mm diameter and 1.5 mm segment thickness, this continuous rim disc is ideal for use with angle grinders. Its soft bond and sintered diamond application ensure precise, clean cuts in ceramic tiles, porcelain stoneware, glazed tiles, and marble. The disc operates at a maximum speed of 13,300 RPM and a peripheral speed of 80 m/s, delivering exceptional performance for finishing cuts.

Advantages

This diamond cutting disc offers several key benefits: ultra-fine cutting quality without chipping, optimized for delicate materials, dry cutting capability, and compatibility with standard angle grinders. The soft bond reduces the risk of material breakage, while the continuous rim design provides smooth, vibration-free operation.

Suitable for

• Ceramic tiles
• Porcelain stoneware
• Glazed tiles
• Marble
• Other brittle materials

Key specifications

• Blade Type: Diamond Cutting Disc
• Series: SOFTEDGE
• Cutting Method: Dry Cutting
• Blade Diameter: 115 mm
• Bore Diameter: 22.23 mm (7/8 inch)
• Segment Thickness: 1.5 mm
• Segment Height: 8 mm
• Rim Type: Continuous Rim
• Material Compatibility: Ceramic Tiles, Porcelain Stoneware, Glazed Tiles, Marble
• Tool Compatibility: Angle Grinder
• Maximum Rotational Speed: 13,300 RPM
• Maximum Peripheral Speed: 80 m/s
• Cutting Quality: Ultra-fine, Chip-free
• Bond Type: Soft Bond
• Core Material: Steel
• Diamond Application: Sintered
• Intended Application: Tile Cutting, Finishing Cuts
• Manufacturer's Designation: 1A1R
• Product Class: Professional Grade
• Special Features: Optimized for delicate and brittle materials

Recommendations

For best results, use with a variable speed angle grinder set to the appropriate RPM. Always wear appropriate safety gear, including eye protection and gloves. Ensure the disc is properly mounted and tightened before use. This disc is designed for dry cutting; do not use with water.
