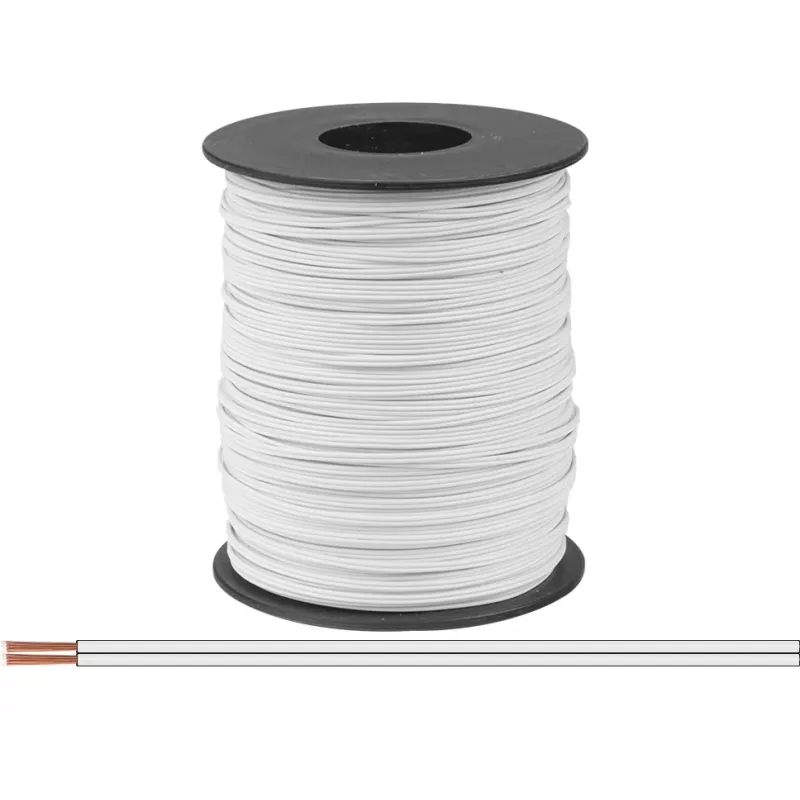

Donau Elektronik 114-55-100 Litze 2 x 0,08 mm² wit 100 m

Stranded wire with two parallel cores, each 0.08 mm², in white PVC insulation, supplied on a 100-meter reel. Its tinned copper conductors and fine stranding deliver excellent flexibility and reliable low-voltage signal transmission for electronics projects and model building.

Advantages

The tinned copper strands resist corrosion and ensure easy soldering, while the parallel flat configuration keeps wiring neat and compact. The PVC jacket provides good insulation and mechanical protection, and the 100 m reel offers ample length for multiple projects.

Suitable for

• Low-voltage signal wiring in electronics projects and prototypes
• Model building and hobbyist applications
• Internal wiring of small devices and control panels
• Educational and laboratory experiments

Key specifications

• Number of cores: 2
• Core cross-section: 0.08 mm²
• Conductor material: Tinned copper
• Insulation: PVC
• Nominal voltage: 50 V
• Temperature range: -20°C to +80°C
• Conductor stranding: approx. 7 x 0.12 mm
• Conductor resistance: approx. 245 Ω/km at 20°C
• Max current capacity: approx. 0.5 A
• Outer diameter (insulated core): approx. 0.8 mm
• Cable configuration: Parallel (flat)
• Length: 100 m
• Colour: White
• RoHS compliant

Recommendations

For clean, reliable low-voltage signal connections in compact spaces, this stranded wire offers the flexibility and corrosion resistance needed for demanding hobbyist and prototyping work.
