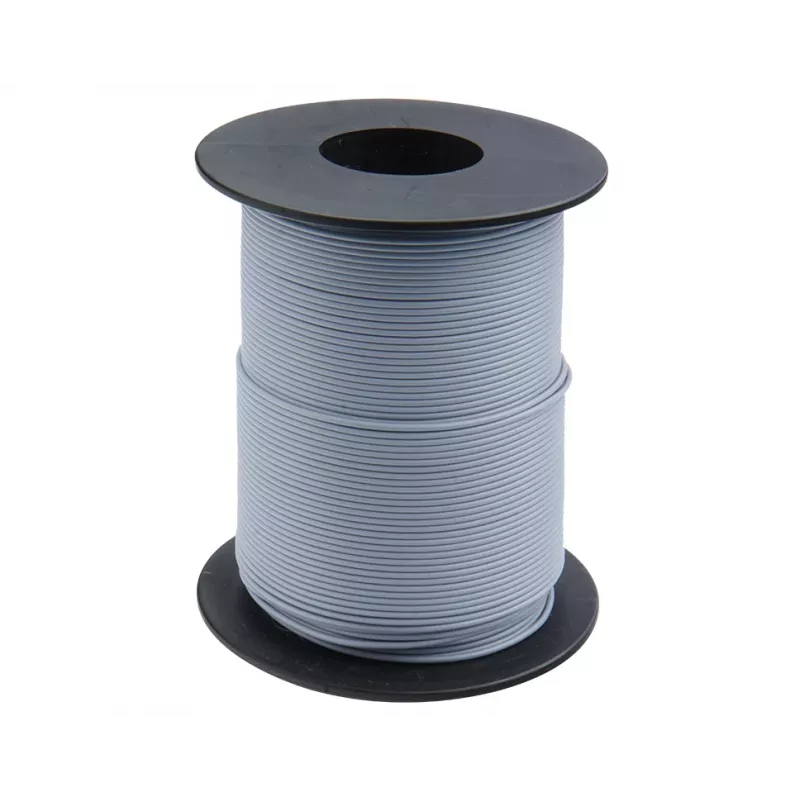

Donau Elektronik 119-19 Litze aansluitdraad 0,14 mm² grijs 100 m

Internal wiring and prototyping demand a conductor that stays flexible, resists corrosion, and fits into tight spaces without adding bulk. The Donau Elektronik 119-19 stranded hook-up wire answers that need with a 0.14 mm² tinned copper core and a grey PVC jacket, supplied on a 100-metre reel for continuous work.

Who is it for

Electronics hobbyists, repair technicians, and production assemblers who need a dependable single-conductor wire for low-voltage signal and control circuits. It suits breadboarding, PCB connections, and internal device wiring where space is limited and repeated bending is expected.

Main features

• Stranded tinned copper conductor, 0.14 mm² (approx. AWG 26) for high flexibility and easy soldering.
• Grey PVC insulation rated for 300 V, with a temperature range from -20°C to +80°C.
• 100-metre reel keeps the wire tangle-free and ready for continuous feeding.
• RoHS compliant, making it suitable for projects that must meet environmental standards.

Specifications

• Conductor cross-section: 0.14 mm²
• Wire gauge: AWG 26 (approx.)
• Number of conductors: 1
• Conductor construction: Stranded (Litze)
• Conductor material: Tinned copper
• Insulation material: PVC
• Insulation colour: Grey
• Rated voltage: 300 V
• Temperature range: -20°C to +80°C
• Outer diameter: approx. 1.2 mm
• Length: 100 m
• Packaging: Reel
• RoHS compliant: Yes

Tips

Strip the insulation carefully to avoid nicking the fine strands; tinning the ends before soldering improves joint quality. For high-vibration environments, secure the wire at intervals to prevent fatigue. Store the reel in a dry place to keep the PVC jacket supple.
