Draadverbinder DELOCK 65532, 3,5 mm metaal, zilver

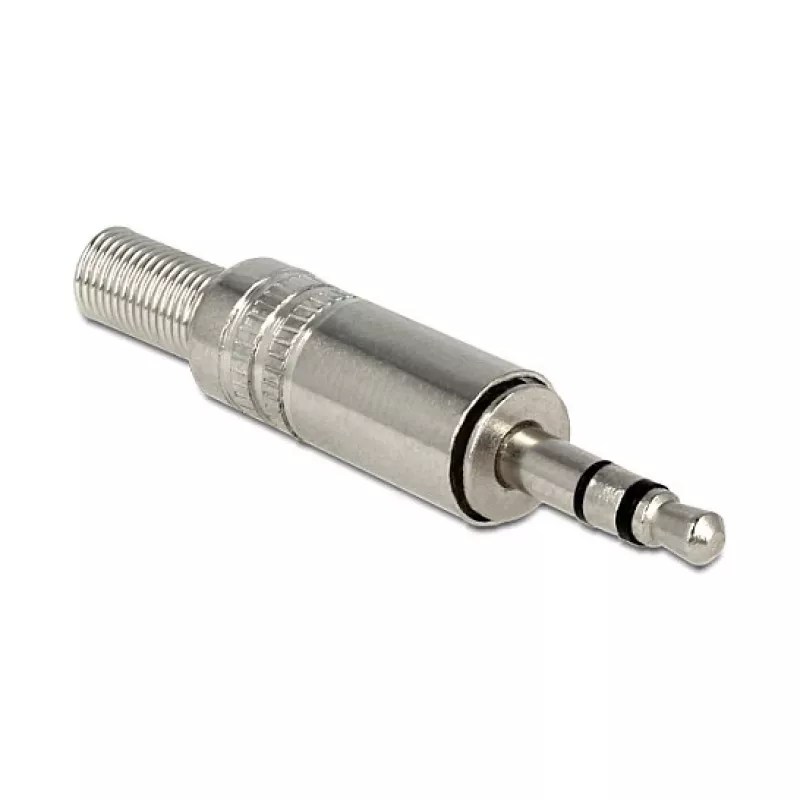

The DeLOCK 65532 is a metal 3.5 mm stereo wire connector in silver finish. It is designed to be opened, the cable soldered to the internal contacts and then closed to form a durable plug compatible with devices that have a 3.5 mm stereo jack. The metal housing and mechanical components provide a compact solution for creating or repairing audio leads.

Advantages

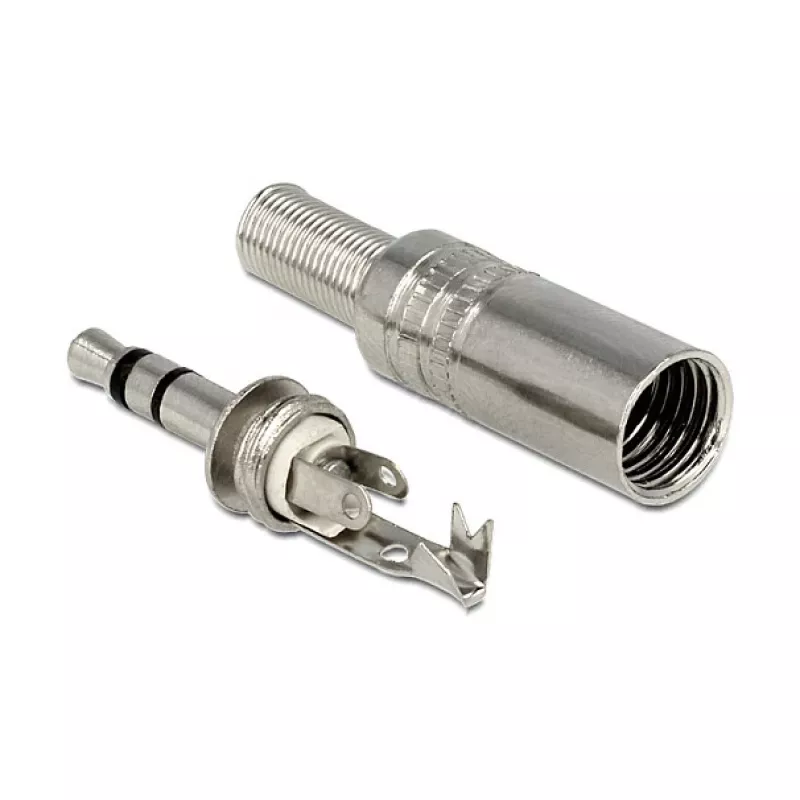

The connector features a screw-open housing that allows access to soldering lands, a hard bending spring for strain relief and cable protection, and a metal construction that enhances durability and shielding. It is compact and suitable for custom cable assemblies or repairs.

Suitable for

• Soldering a replacement 3.5 mm stereo plug onto audio cables
• Repairing damaged 3.5 mm headphone or auxiliary leads
• Custom audio cable assemblies for portable devices, car audio or small electronics

Key specifications

• Connector type: 3.5 mm stereo
• Material: Metal
• Colour: Silver
• Brand: DELOCK
• MPN: 65532
• EAN: 4043619655328

How to use

Unscrew and open the metal housing to expose the soldering lands. Strip the cable conductors, tin them if desired, and solder each conductor to the appropriate land (left, right, and ground). Verify solder joints for good contact, position the cable and the hard bending spring for strain relief, then reassemble and tighten the housing to secure the connection.

Recommendations

Use appropriate soldering tools and safety precautions. Ensure correct wiring of left, right and ground conductors before closing the housing. Avoid excessive force when tightening the housing to prevent damage to the connector.
