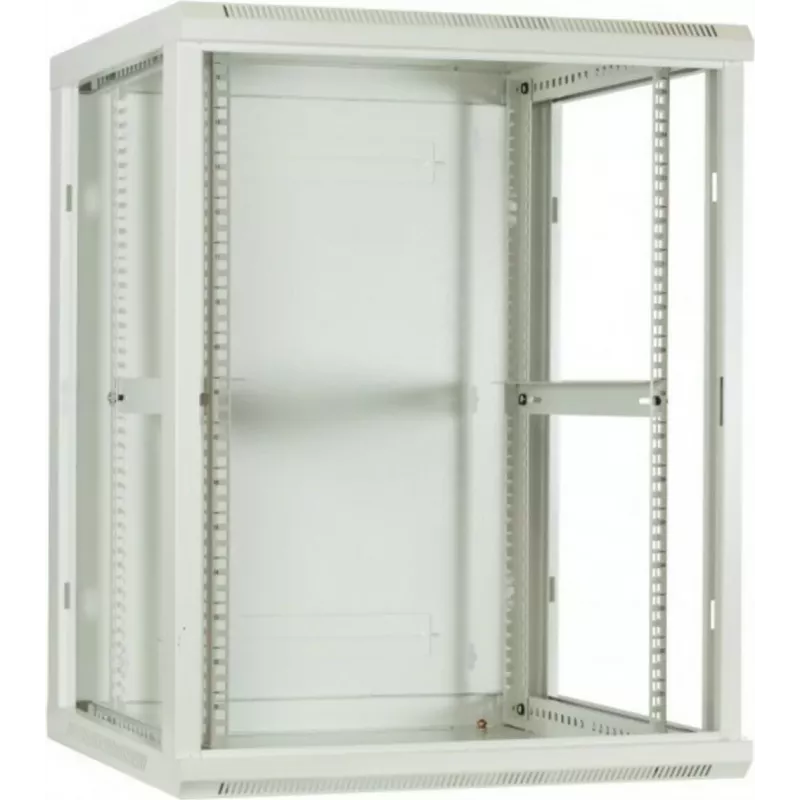

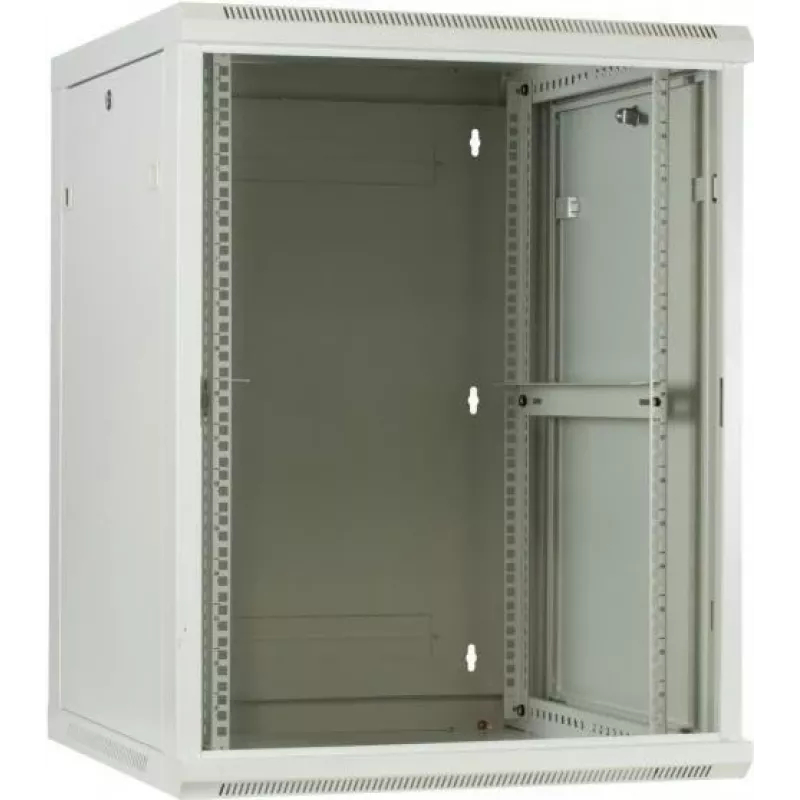

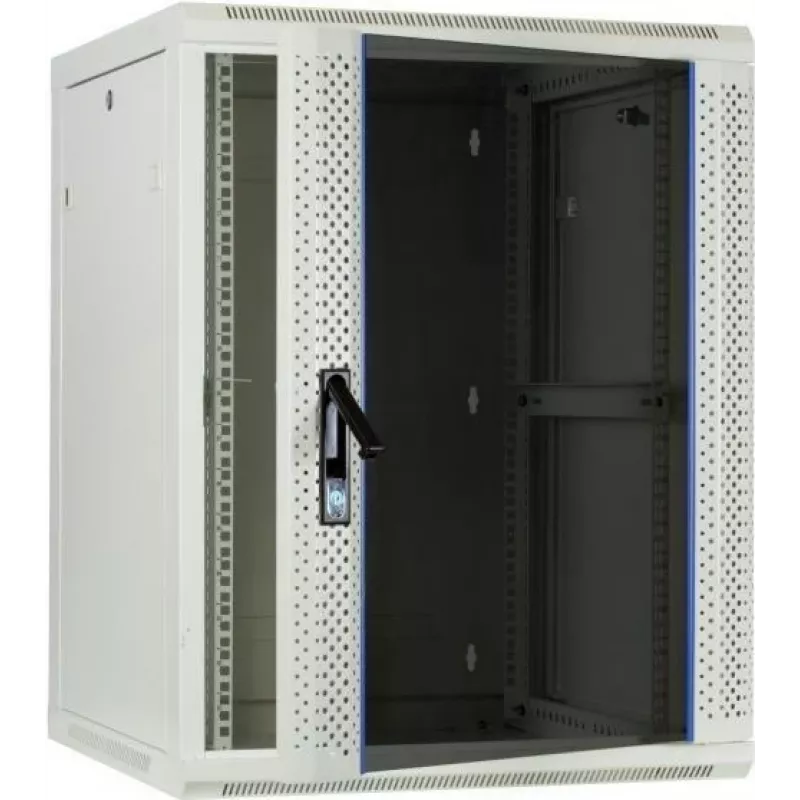

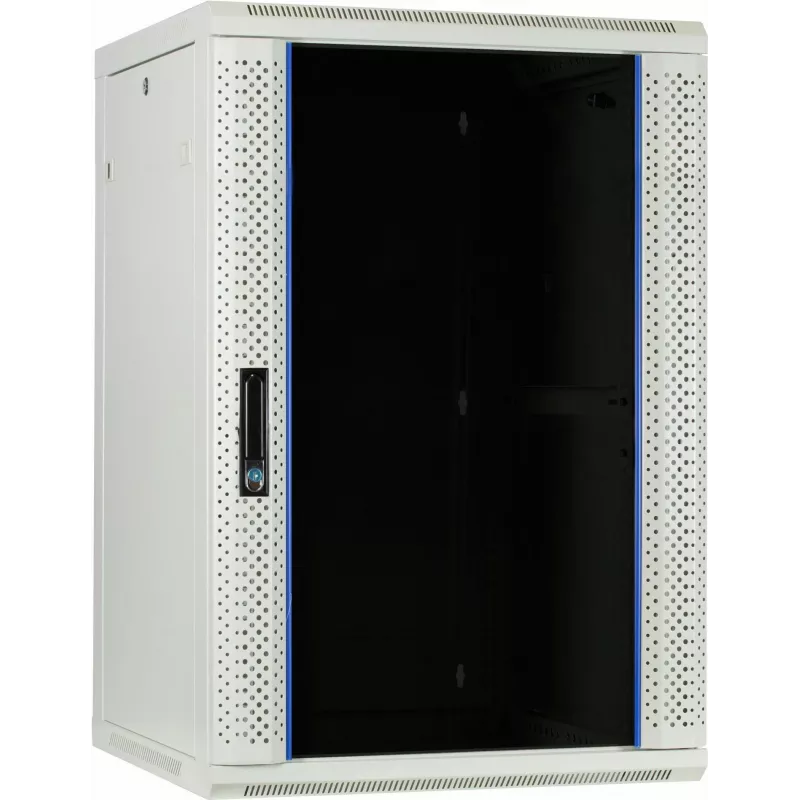

DSIT 18U wandmontage serverkast met glazen deur, 600x600x900 mm, wit

Wall-mounted IT equipment often suffers from poor accessibility, insufficient ventilation, and weak security. The DSIT DS6618W-WAND solves these issues by providing a robust, lockable 18U enclosure that keeps your networking and server hardware safe, organized, and easily accessible—without consuming valuable floor space.

Who is it for

This cabinet is ideal for small to medium businesses, branch offices, retail environments, and educational institutions that need to secure 19-inch rack-mount equipment such as switches, patch panels, and servers in a compact footprint. It is especially useful where floor space is limited but security and organization are still required.

Main features

• 18U capacity supports a wide range of standard 19-inch equipment.
• Tempered glass front door with key lock provides visibility and security.
• Removable and lockable side panels allow easy access during installation and maintenance.
• Adjustable mounting rails accommodate equipment of varying depths.
• Passive ventilation with provision for optional fan units ensures proper airflow.
• Sturdy SPCC cold-rolled steel construction with white powder-coated finish (RAL 9003) blends into modern interiors.
• Includes wall mounting kit and two keys for immediate installation.

Specifications

• Rack capacity: 18U
• External dimensions (WxDxH): 600 x 600 x 900 mm
• Rack standard: 19-inch
• Front door: Tempered glass, lockable
• Side panels: Removable, lockable
• Material: SPCC cold-rolled steel
• Color: White (RAL 9003)
• Surface finish: Powder coated
• Cable entry: Top and bottom
• Ventilation: Passive, with provision for fan unit
• Mounting rails: Adjustable 19-inch profiles
• Protection class: IP20
• Included accessories: 2 keys, wall mounting kit
• Compliance: RoHS, CE

Tips

Before mounting, ensure the wall can support the combined weight of the cabinet and equipment. For active equipment, consider adding fan units to the pre-punched openings to enhance airflow. Use the adjustable rails to align equipment neatly and maintain proper cable management.
